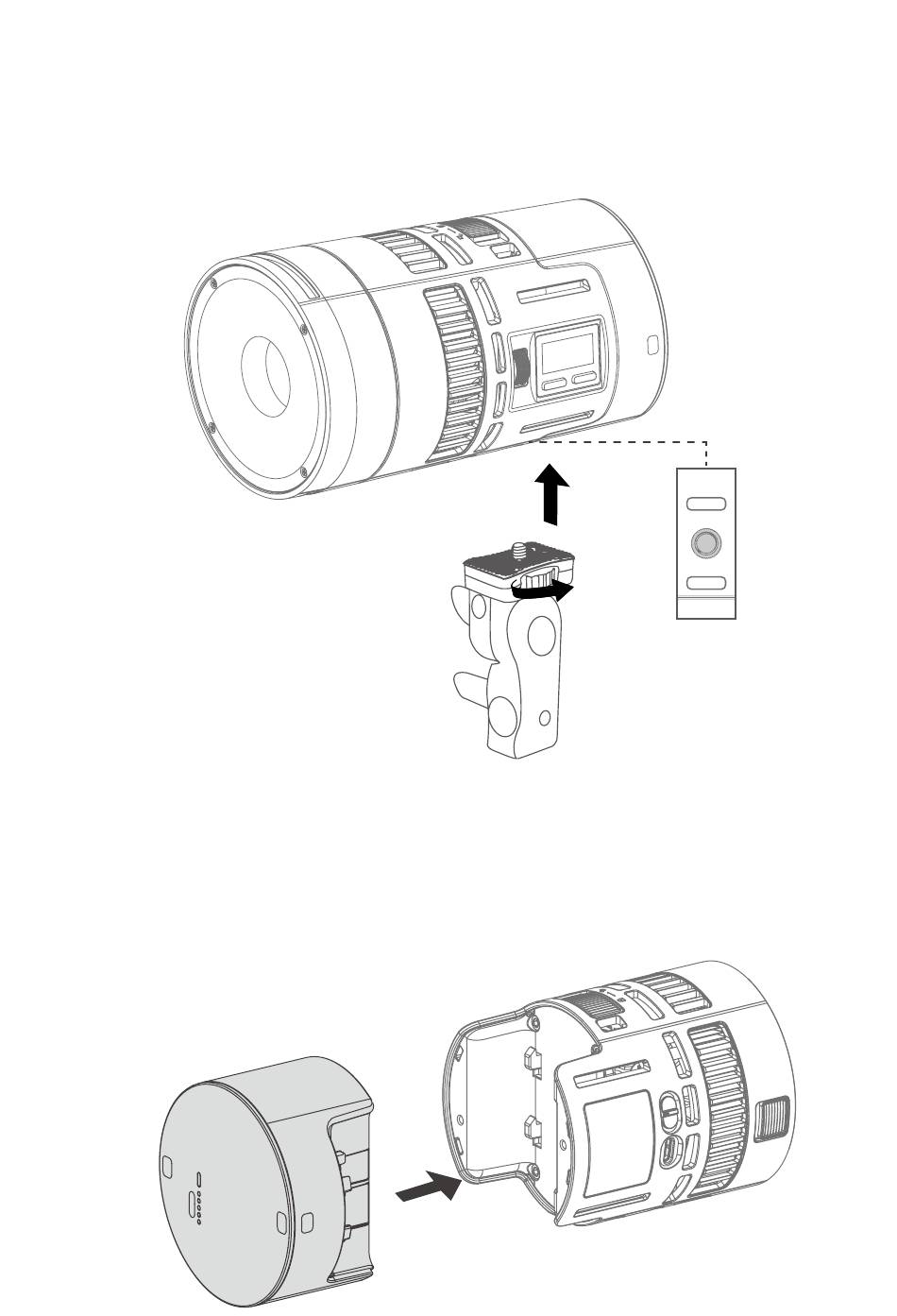

Install/Disassemble the Mount AD-E2
Align the 1/4" port on the light body with the screw, rotate clockwise the locking device to
install it, then mount on an optional tripod.
To disassemble, rotate anticlockwise the locking device to remove the light body.
①
②
Battery Instructions
Installation: Align the light body with the metal contacts at both ends of the battery,
insert the battery into the slot and press it down, the battery disassemble pusher will
automatically lock with a "click", and the battery is installed.
44
