Summary of Contents for Lojer Afia 4060

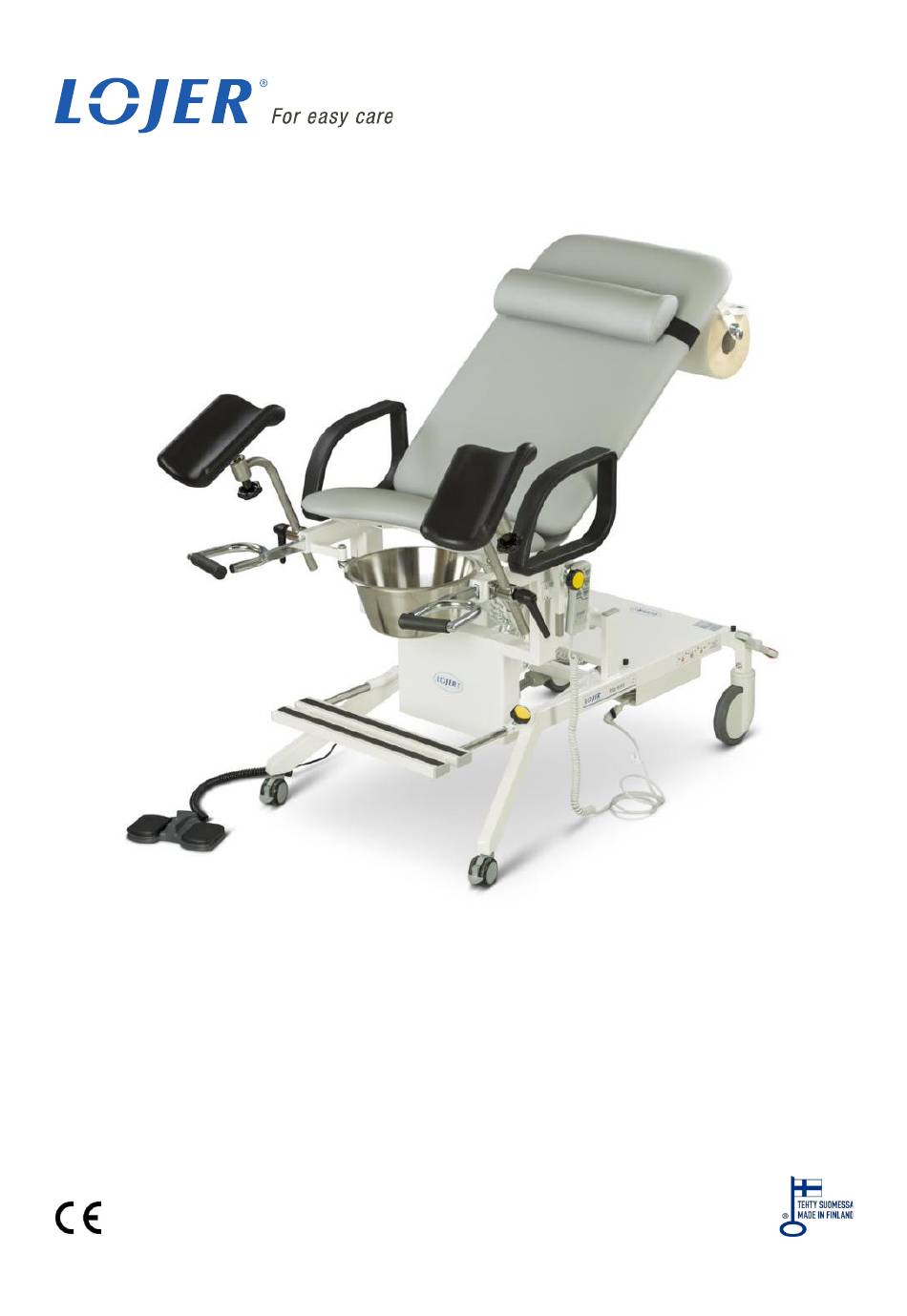

- Page 1 Lojer Afia 4060/4062 Gynaecological Examination Chair Instruction for use ID: DX012185, rev. 3 / 23.10.2024 (en) Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024...
-
Page 2: Table Of Contents
This document is a translation of the original English version. In case of conflict, the original English version applies. Lojer Group is leading producers of medical furniture and physiotherapy equipment in Nordic Countries. We design and manufacture medical and treatment furniture to be used by health care professionals in various operating environments. -
Page 3: Lojer Afia 4060 Gynaecological Examination Chair
A Patient/ Client is a person in need of treatment or therapy given by a healthcare professional. 1.3 Contra-indications The device has no contraindications. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 4: Description Of Parts
10. Hand support (optional 4060, standard 4062) 4. Bowl 11. Calf supports (optional 4060, standard 4062) 5. Castor locking 12. Foot control (optional 4060, standard 4062) 6. Neck cushion 7. Paper roll holder Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 5: Symbols Used On The Device
Transformer is equipped with overheating protection. Indoor use only. Protectively isolated structure. Double insulated (Class II electric appliance) Potential equalization Functional ground Squeezing hazard Important/Warning Warning Product information Central locking Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 6: Options And Accessories
This side up (package label) Store in a dry place (package label) Temperature limits Manufacturer 1.6 Options and accessories Factory installed options: Calf supports, pair Hand supports foot control Accessories: Paper cutter Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 7: Introduction
For safety reasons always connect the power cord to grounded socket which should be located near the head end of the examination table. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... - Page 8 Or unplug the power cord when the device is left unsupervised. WARNING! The safe working load (SWL) is the maximum load including the patient and possible accessories. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024...
-
Page 9: Using The Device
Adjustment range of the 4040X examination table is shown below (Figure 2). Height adjustment 59-88 cm Back section adjustment -7-70° Seat section 25° Trendelenburg max. 7° Figure 2: Adjustment ranges Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 10: Castors
Press the red end down to lock the wheels. Pressing one of the pedals is locking both. When the pedal is horizontal, the wheels are free. To make transport easier, you can lock the rear wheel by pressing down on the green end of the pedal. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 11: Height Adjustment
3.3 Height adjustment The height of the table can be adjusted with hand control, foot control (option). Keep the hand-control in place reserved for it. (Figure 4). Figure 4: Height adjustment Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 12: Adjustment Of Table Top Sections
The Seat section of can be electrically adjusted with the hand control 0… 25 °. (Figure 6.1). Figure 6: Backrest adjustment Figure 6.1: Seat section adjustment SQUEEZING HAZARD! Make sure that nothing is or gets between the structure or under the device during lifting/lowering Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 13: Paper Roll Holder
Make sure that the arm rest is properly locked. Arm rest is meant only for supporting the arm of the patient. Do not sit or load the arm rest in any other way. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 14: Iv-Pole And Holder (Accessory)
The calf supports can be adjusted in height by loosening the lever screw. By opening the thumbscrew of the pad part, the support can be rotated 360 ° as well as tilted in all directions by 30 °. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 15: Foot Plate
Make sure the foot plate is properly locked. Removing the footboard from the table requires the removal of the stop screw. If a footboard is used, the screw must be in place. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... - Page 16 Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024...
-
Page 17: Cleaning And Disinfecting
8–10). Pay special attention to thorough cleaning of contact surfaces. ➔ Do not use e.g. any solvents, abrasive cleanings agents or scouring pads as they can damage the surfaces. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 18: Textile Surfaces
For example, peroxygen or chlorine-based substances can be used to clean and disinfect secretion stains. Clean and disinfect the device’s castors when they have been visibly contaminated. ➔ • Allow the surfaces to fully dry before using or storing the device. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 19: Maintenance
5.2 Annual measures Check and lubricate the following parts once a year or more often if necessary. Use e.g. Wurth HHS 2000 • Joints • Bearings • Fastening points of the actuators Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 20: Troubleshooting
In order to change the actuators, controls or control box and ordering other spare parts contact the Lojer Service. Before contacting make a description of the problem and find out the following information from the type plate of the device: •... - Page 21 RESULSTS identification of the equipment, details of the tests, date and the result of the functional tests and measurements. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024...
-
Page 22: Technical Information
Transportation temperature -10…+40 °C, humidity 30…75% +10…+40 °C humidity 30…75% Operating/storage temperature 80…106 kPa Air pressure UDI-DI 06430021930309 (Afia 4060), 06430021930316 (Afia 4062) Figure 15: Type plate and its location Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 23: Circuit Diagram
Jumper plug 13 pol DEW_77183 Control unit DEW_70844 Powercord DEW_57559 Y-Cable for multiple controls Other spare parts: R260150SI Directional wheel 150mm Integr. Tente R260150JI Brake wheel 150mm Integr. Tente R26003802 Front wheel.65mm M10x15 Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 24: Electromagnetic Compatibility (Emc)
IEC 61000-3-3 6.2.2 Electromagnetic immunity This product is intended for use in electromagnetic environments that are specified below. The user should ensure that the product is used in an appropriate environment. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... - Page 25 Interference may occur in the vicinity of equipment marked with the following symbol: Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024...
-
Page 26: Standards
The device is in conformity with requirements of the EU Medical Device Regulation 2017/745. The device is marked with CE marking. The device is classified as Class I medical device. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 27: Recycling
PVC waste is sent separately to a waste center or to a sorting station. PVC plastic is known from the sign below, material number 03. The pre-treated and sorted materials are delivered to special collection points. Always follow regional and collection point specific instructions. Recycling can significantly reduce soil waste. Copyright © Lojer Group ID: DX012185 Version: 3 Date: 14.11.2024... -
Page 28: Limited International Warranty
8 Limited International Warranty The terms of the warranty for the product are set out in the contract documents of the purchase. Unless otherwise agreed, the general warranty terms apply (see www.lojer.com or contact our service service@lojer.com). 9 Contact information...
