Page 1 LOJER BOBATHLIEGE 2-TLG ANLEITUNG Art.-Nr. 65937 · Kategorie: Therapieliegen...
Page 3: Table Of Contents
Read these instructions carefully. Follow all warnings and instructions marked on the product Lojer Group is leading producers of medical furniture and physiotherapy equipment in Nordic Countries. We design and manufacture medical and treatment furniture to be used by health care professionals in various operating environments.
Page 4: Lojer Bobath X Mat Tables
Obligation for incident reporting: User and/or patient should report any serious incident that has occurred in relation to this device to the manufacturer (Lojer Oy) and the competent authority of the Member State in which the user and/or patient is established.
Page 5: Description Of Parts

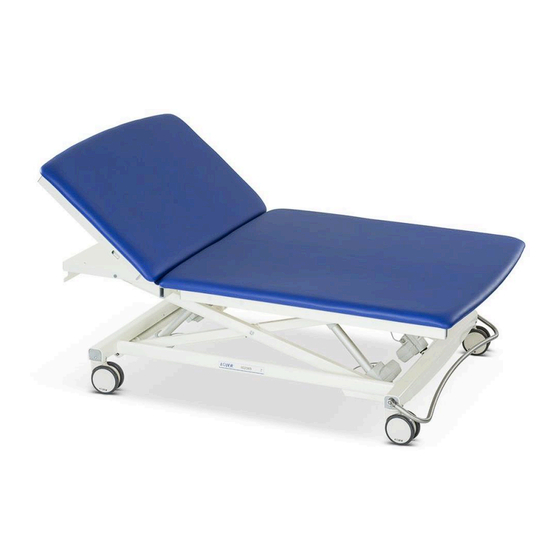

1.5 Description of parts The sections of Lojer Bobath X Mat Tables are shown below (Figure 1). Figure 1: Lojer Bobath 4020XB and 4010XB Leg section (4020XB) Back section (4020XB) Castors Central locking pedal Side rail (accessory) Accessory rail (accessory) One section lying surface (4010XB) Copyright ©...
Page 6: Symbols Used On The Device
Safe working load (SWL) (packaging label) Product marked with this symbol Temperature limits for shall not be processed as Fragile, handle with care transportation household waste. See Recycling (packaging label) (packaging label) -Chapter. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 7 Functional ground Protectively isolated structure Battery operation Central locking Hand free adjustment bar for back section and height Trendelenburg-adjustment Individually lockable casters Foot control 4010XB Foot control 4020XB Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 8: Options And Accessories
Foot control Upholstery with face hole Accessories: Side rails (1-2 pcs.) Examination light Push handles Accessory rail 380 mm x 10 mm x 25 mm (max. 6 pc.) Lift support Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 9: Introduction
Make sure that the cord runs freely outwards from the connection box. Pay attention when lifting the table. Do not lift the table alone. The table weighs 120 kg. Lifting points points of the table (Picture 1.1): Picture 1.1 Lifting points Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 10: Safety Instructions
Make sure that the space around the device is safe. There should be no sharp edges or other possibly harmful objects around the table. Do not modify the structure of the device or install parts other than those mentioned in this document. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 11 Or unplug the power cord when the device is left unsupervised. WARNING! The safe working load (SWL) is the maximum load including the patient and possible accessories. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 12: Using The Device
Adjustment range of the Bobath X Mat tables is shown below (Figure 2). Height adjustment 40-95 cm Back section adjustment 0-73° (model 4020XB) Trendelenburg/anti (option) max. 20° Figure 2: Adjustment range Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 13 Power cord connected (yellow led on) Service needed (yellow led on) Locking status indicator leds Battery in use (yellow led on) Trendelenburg adjustment For 4010XB, F1 and F2 buttons are required for resetting the software. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 14 After 10 minutes, they will lock automatically. The hand control remains active. If you try to use foot control after automatic locking (not opened) hand control led (4) is blinking. Figure 2.4: 4010XB Figure 2.5: 4020XB Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 15: Castors
Figure 3: Pedal positions of the central locking pedal SQUEEZING HAZARD! Make sure that nothing is or gets between the structure or under the device while using the castors or moving the table. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 16: Height Adjustment
Ensure that there are no obstacles in the foot control range of movement. Squeezing hazard caused by accidental movement of the device! Examination tables have a safety feature which automatically lifts (5 cm) the table if something is between the structure (squeezing recognition). Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 17: Back Section
SQUEEZING HAZARD! Make sure that nothing is or gets between the structure or under the device during lifting/lowering Ensure that there are no obstacles in the foot control range of movement. Squeezing hazard caused by accidental movement of the device! Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 18: Trendelenburg (Option)
Notice that the device with battery the electrical functions of the table work even when the power cord is unplugged. Use the locking function of the table to ensure safety. Always lock the table during transportation if table is equipped with battery. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 19: Side Rails (Accessory)
Never turn the handle of the lift support inwards to the device. When setting the lift support in place, make sure that the lift support is locked and does not get to rotate. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 20 (Figure 15). The lift support locks in three different positions: handle facing away from the table, handle facing the foot end or handle facing the head end. Figure 15: Lift support Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 21: Cleaning And Disinfecting
(1:10), which is effective against bacteria without drying the upholstery material. Repeat the cleaning procedure if necessary. (Composition of Lojer Desiplint: Chlorhexidine digluconate 0,1 – 0,2 %, water 99,8 %.) Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 22: Maintenance
5.2 Annual measures Check and lubricate the following parts once a year or more often if necessary. Use e.g. Wurth HHS 2000 • Joints • Bearings • Fastening points of the actuators Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 23: Troubleshooting
Check the cord and contact service. cord. Table is locked. Unlock the table by pressing both height adjustment button simultaneously seconds. Foot control is locked by default and auto locks in 10 min. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 24: Preventive Maintenance
In order to change the actuators, controls or control box and ordering other spare parts contact the Lojer Service. Before contacting make a description of the problem and find out the following information from the type plate of the device: •...
Page 26: Technical Information
-10…+50 °C, humidity 20…90% Transportation/Storage temp -10…+40 °C, humidity 20…90% (with battery option) +10…+40 °C, humidity 30…75% Operating temperature +10…+30 °C, humidity 30…75% (with battery option) Figure 16: Type plate and its location Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 28: Electromagnetic Compatibility (Emc)
Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 29: Electromagnetic Emission
6.2.1 Electromagnetic emission Medical device (Lojer Bobath X Mat Table) is intended for use in the electromagnetic environment specified below. The customer or the user of the medical device should assure that it is used in such an environment. Portable devices which are using radiofrequency can affect use of this equipment Guidance and manufacturer’s declaration –...
Page 30 2:2014 2:2014) survey a, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol: Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 31: Standards
The device is in conformity with requirements of the EU Medical Device Regulation 2017/745. The device is marked with CE marking. The device is classified as Class I medical device. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 32: Recycling
PVC plastic is known from the sign below, material number 03. The pre-treated and sorted materials are delivered to special collection points. Always follow regional and collection point specific instructions. Recycling can significantly reduce soil waste. Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 33: Limited International Warranty
8 Limited International Warranty Lojer warrants, subject to the terms of the limited warranty, that the Equipment is free from defects in material and workmanship, when subjected to normal, proper and intended usage by properly trained personnel, for a period of 24 months. For the steel structure the warranty period is 10 years. Warranty period for accessories and wearing components, either bundled in the original packaging or purchased separately, such as, spare parts, replacement parts, batteries, mattresses shall be 12 months from the date of shipment.
Page 34: Contact Information
FI-38201 Sastamala Tel. +35810 830 6700 Email: firstname.lastname@lojer.com info@lojer.com www.lojer.com Your local Lojer dealer, see www.lojer.com/distributors Model: ________________________________________________________ Serial number: __________________________________________________ Date of purchase: ________________________________________________ Your local Lojer dealer:____________________________________________ Copyright © Lojer Group ID: DX011285 Version: 2 Date: 01.12.2023...
Page 35 Sport-Tec GmbH Tel.: +49 (0) 6331 1480-0 Physio & Fitness Fax: +49 (0) 6331 1480-220 Lemberger Str. 255 E-Mail: info@sport-tec.de D-66955 Pirmasens Web: www.sport-tec.de...
