- Page 1 Lojer Capre-series examination tables Operating and maintenance manual 13.8.2012 1.0...
-
Page 2: Table Of Contents
Contents Lojer Capre-series examination tables ........................ 1 Description of parts ............................1 Options and accessories ..........................3 Symbols used on the device .......................... 3 Introduction ............................... 4 Inspection upon delivery ..........................4 Before use ..............................4 Using the examination table ..........................5 Maximum inclination ............................. -
Page 3: Lojer Capre-Series Examination Tables

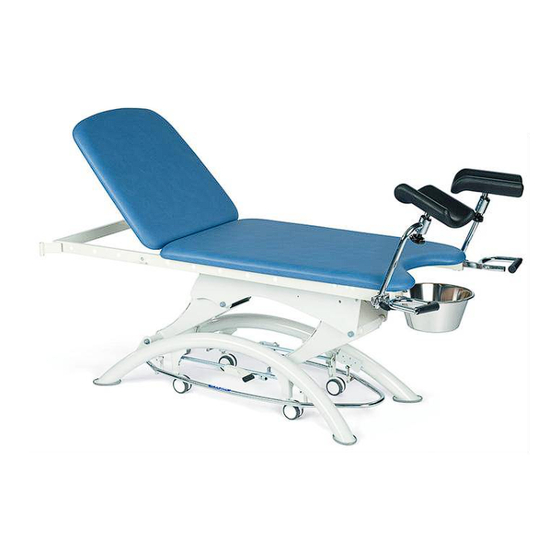

To avoid injury, follow the instructions given in this document. Description of parts The sections of Lojer Capre examination tables are shown below (Figure 1, Figure 2 and Figure 3). Figure 1: Lojer Capre E1 examination table Table top... - Page 4 Back section Leg section IV-pole mounting adapter (accessory) Castors (accessory) Central locking pedal Place free height adjustment bar (accessory) Figure 3: Lojer Capre EG gynaecological examination table Back section Leg section IV-pole mounting adapter (accessory) Castors (accessory) Central locking pedal...
-
Page 5: Options And Accessories
Options and accessories Options and accessories available for Lojer Capre examination tables: Place free height adjustment bar Castors IV-pole adapter (2) Paper roll holder Neck cushion SKAI Lux upholtery Leg supports (only for Capre EG model) Symbols used on the device... -
Page 6: Introduction
Do not modify the structure of the device or install parts other than those mentioned in this document. Do not use the device or the accessory if it doesn’t work properly. Contact the service. Do not push the device on to a door sill. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 7: Using The Examination Table
(Figure 5). To set ready for use, release the pedal and refract it back to its position. Figure 5: Central locking system Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 8: Height Adjustment
Figure 7: Safety switch SQUEEZING HAZARD! Make sure that nothing is between the structure or under the device during lifting/lowering. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 9: Adjustment Of The Back Rest
Models E2 and EG can be adjusted electrically with a hand control (Figure 9)(1). The adjustment range is 0…78°. Figure 9: The adjustment of the back rest SQUEEZING HAZARD! Make sure that nothing is between the structure or under the device during lifting/lowering. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 10: Adjustment Of The Heel Support (Capre Eg)
The paper roll holder is located at the head end of the table (Figure 12). Two screws and nuts are supplied with the holder. Use the screws to fasten the holder to the cross beam. Figure 12: Paper roll holder Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 11: Leg Support (Accessory) (Capre Eg)
(3) to adjust the height. Release the ring to lock the pole on the suitable height. Figure 14: IV-pole Make sure that the IV-pole won’t hit anything when adjusting the height of the table. Remove all accessories when moving the table. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 12: Cleaning And Disinfecting
Do not use solvents or petrol for cleaning. Do not use acids for cleaning. Dry all surfaces thoroughly after cleaning or disinfection. Disinfecting wears out the surfaces. After disinfecting clean the surfaces with clean, damp cloth. Dilute the disinfectant according to the manufacturer’s instructions. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... - Page 13 Repeat the cleaning procedure if necessary. (Composition of Lojer Desiplint: Chlorhexidine-digluconate 0,1 – 0,2 %, water 99,8 %.) Use the recommended disinfectants (see matrix www.lojer.com). Lojer cannot be held responsible for the effects of other solutions than those mentioned in the matrix. Wipe the surface with a clean, damp cloth after disinfecting.
-
Page 14: Maintenance
Annual measures Check and lubricate the following parts () once a year or more often if necessary. Joints Bearings Bearing points of the underside rods Figure 15: Parts to be lubricated Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 15: Troubleshooting
The actuator might stop working. Contact the service. out or overloaded. In order to change the actuators, control or control box and ordering spare parts contact the Lojer service. Before contacting the service, find out the following information from the type plate of the device. -
Page 16: Preventive Maintenance
RESULSTS performed the tests, identification of the equipment, details of the tests, date and the result of the functional tests and measurements. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 17: Technical Information
E1,2 199 cm; EG 197 cm Weight 105kg Transport temperature -5…+60 °C, humidity 30…75 % Storage temperature -5…+60°C, humidity 30…75 % Operating temperature +10…+40 °C, humidity 30…75% Figure 16: Type plate and its location Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 18: Circuit Diagram
R284FSE1 Junction box R284DJBD Power cord R284HO5VV-F Lifting actuator R28434S Actuator for back rest R284LA31.4BP o = standard, x = accessory Parts marked with needs to be changed by an authorized personnel. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 19: Standards
HOUSE HOLD WASTE: plastic, upholsteries and other materials which cannot be separated further. Contact your local disposal authority for more details of how to recycle. Follow the instructions given in local collection points. Copyright © Lojer Oy, 2012 08/2012 Rev. 1.0... -
Page 20: Contact Information
