4.6

COUPLING MODULE

The coupling module enables multiplying the number of spans on the pergola, to form a
continuous pergola. The coupled modules share the intermediate uprights.
The coupling units can be placed laterally or head on to the basic module; it is possible to couple
one or more modules. The drawings shown below are just an example.

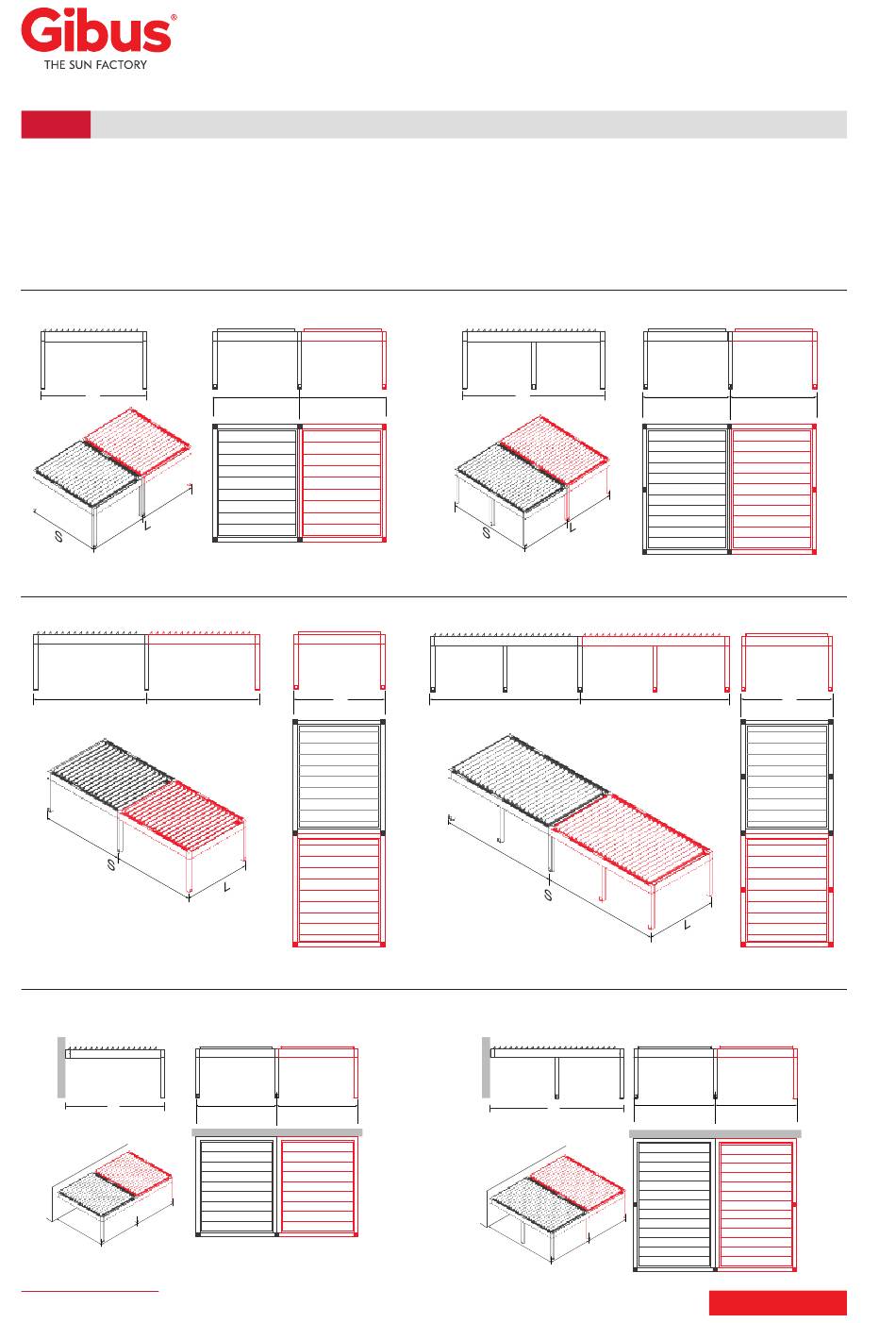

MOVIE ISLAND WITH COUPLING MODULE TYPE 1 COUPLING
Up to 610 cm.
S
MOVIE ISLAND WITH COUPLING MODULE TYPE 2 COUPLING
Up to 570 cm.
Projection Projection
BASE COUPLED
module module
MOVIE FRONTAL LEANING VERSION WITH COUPLING MODULE TYPE 1 COUPLING
Up to 610 cm.
S
28 56
Page of
Width Width
BASE COUPLED
module module
L
USE AND MAINTENANCE MANUAL
From 610 cm to 690 cm.
S
From 610 cm to 690 cm.
From 610 cm to 690 cm.
S
