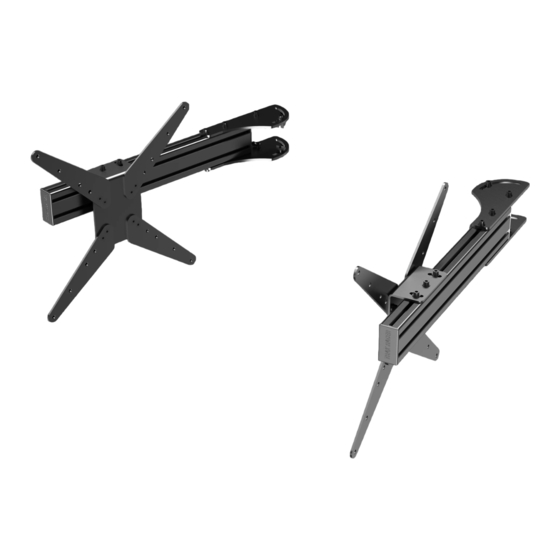

Arms for Triple Monitors
with VESA Mounts
Assembly Guide
IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
TR80-TMARM4-BLK
Published 2023‑09‑06
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRAK RACER TR80-TMARM4-BLK
Summary of Contents for TRAK RACER TR80-TMARM4-BLK
- Page 1 Assembly Guide IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box TR80-TMARM4-BLK Published 2023‑09‑06...
- Page 2 TABLE OF CONTENTS Symbol Legend Part list Assembly Notes TR80-TMARM4-BLK Assembly Instructions...
- Page 3 IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box IMPORTANT: Due to the nature of cut aluminium profile, some metal shavings may still be present after our extensive QA cleaning process.
- Page 4 IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box TR80-TMARM4-BLK PARTS LIST Part # Description...
- Page 5 NOTE BACK SIDE INSIDE FRONTSIDE TOP SIDE OUTSIDE INSTALLATAION ORDER FOR SCREWS & WASHERS HOW TO MEASURE SCREWS ① SCREW ② LOCK WASHER ③ WASHER (IF APPLICABLE) FLAT SCREW HEX SCREW BUTTON SCREW...
- Page 6 The handle screws (SL-M8-20 & SL-M8-25) are NOTE ratcheted to allow for tightening and loosening when space for rotation is limited. Simply pull the handle out and turn handle into position and push handle back in to engage thread.
- Page 7 NOTE tooltip NS-M8 & NS-M6 tooltip It is strongly advised that spring T-Nuts are inserted by sliding from the ends of profiles. Please take careful note of each step of all T-nuts as some are to be installed in anticipation of future steps. tooltip tooltip If T-Nuts are skipped, and...
- Page 8 NOTE BC-40...
- Page 9 M8x20mm BM-TA NS-M8 SH-M8-20 WF-M8 WL-M8 NOTE: End caps may need to be removed to insert t-nuts. tooltip M8x20mm WF-M8 EC-80 AL-80-580 NS-M8 SH-M8-20 WL-M8 tooltip...
- Page 10 M8x20mm tooltip VM-02 NS-M8 SH-M8-20 WL-M8 WF-M8 M8x16mm VM-02-A VM-02-B SF-M8-16 NF-M8 NOTE: Optional for larger monitors. tooltip If monitor mounting points are 150mm or 200mm apart, add VESA extensions (VM-02-E)
- Page 11 tooltip EC-80 IMPORTANT: If your monitor screws are under 8mm (M8), you will need to use washers (not supplied) tooltip...
- Page 12 FINISHED Share your build online and tag us to be featured! @trakracer @trakracer @trak_racer...
