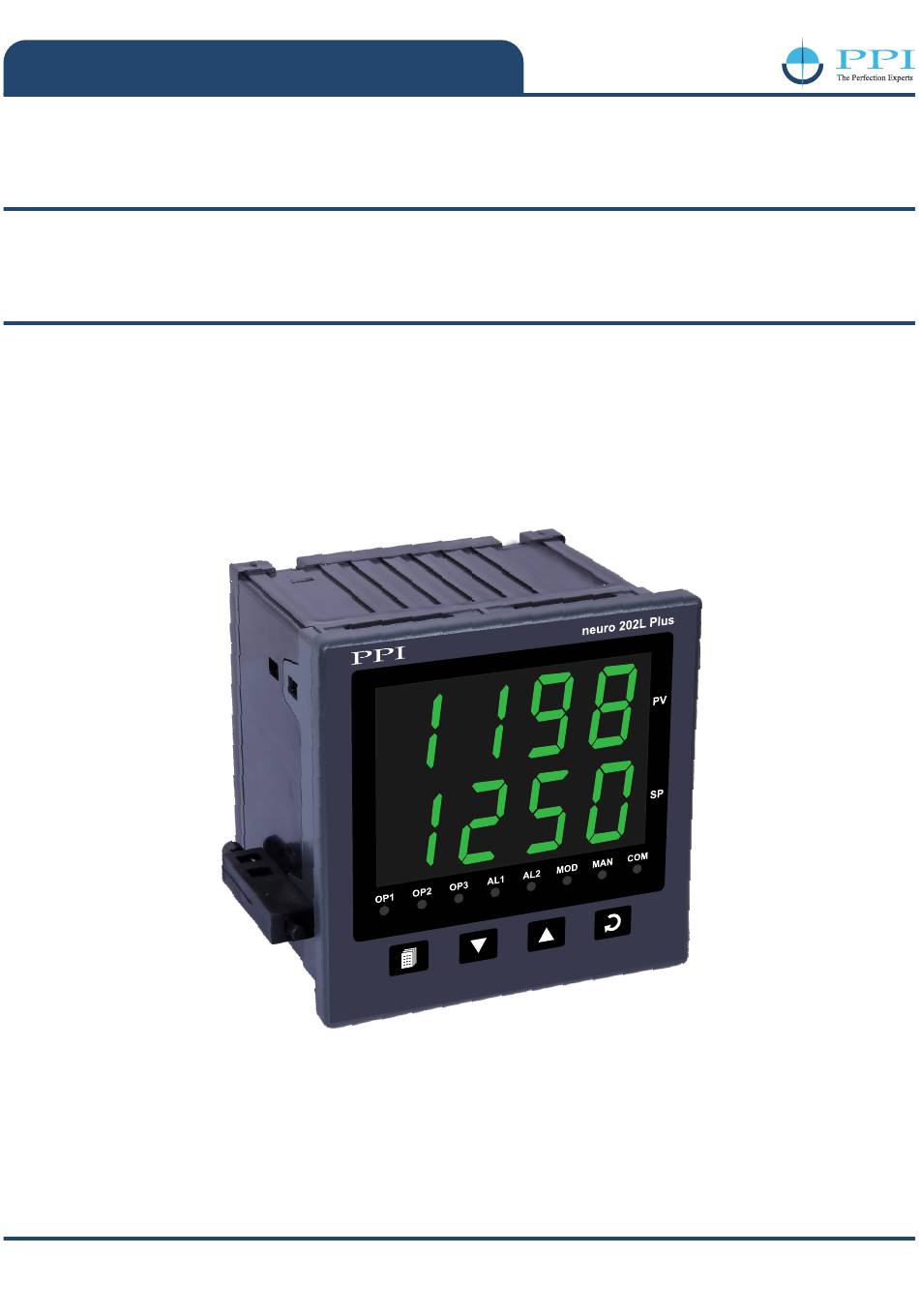

Single Loop Process Controller
neuro 202L Plus
Process Precision Instruments
Vasai Road (E), Dist. Palghar - 401210,
Single Loop Uni-Directional/Bi-Directional Control
Maharashtra, India
Built-in 16 Segment Ramp/Soak Profile
Optional Remote/Auxiliary Setpoint Input
www.ppiindia.net
Alarms, Retransmission & RS485 Serial Outputs
User Manual
PPI \ User Manual
