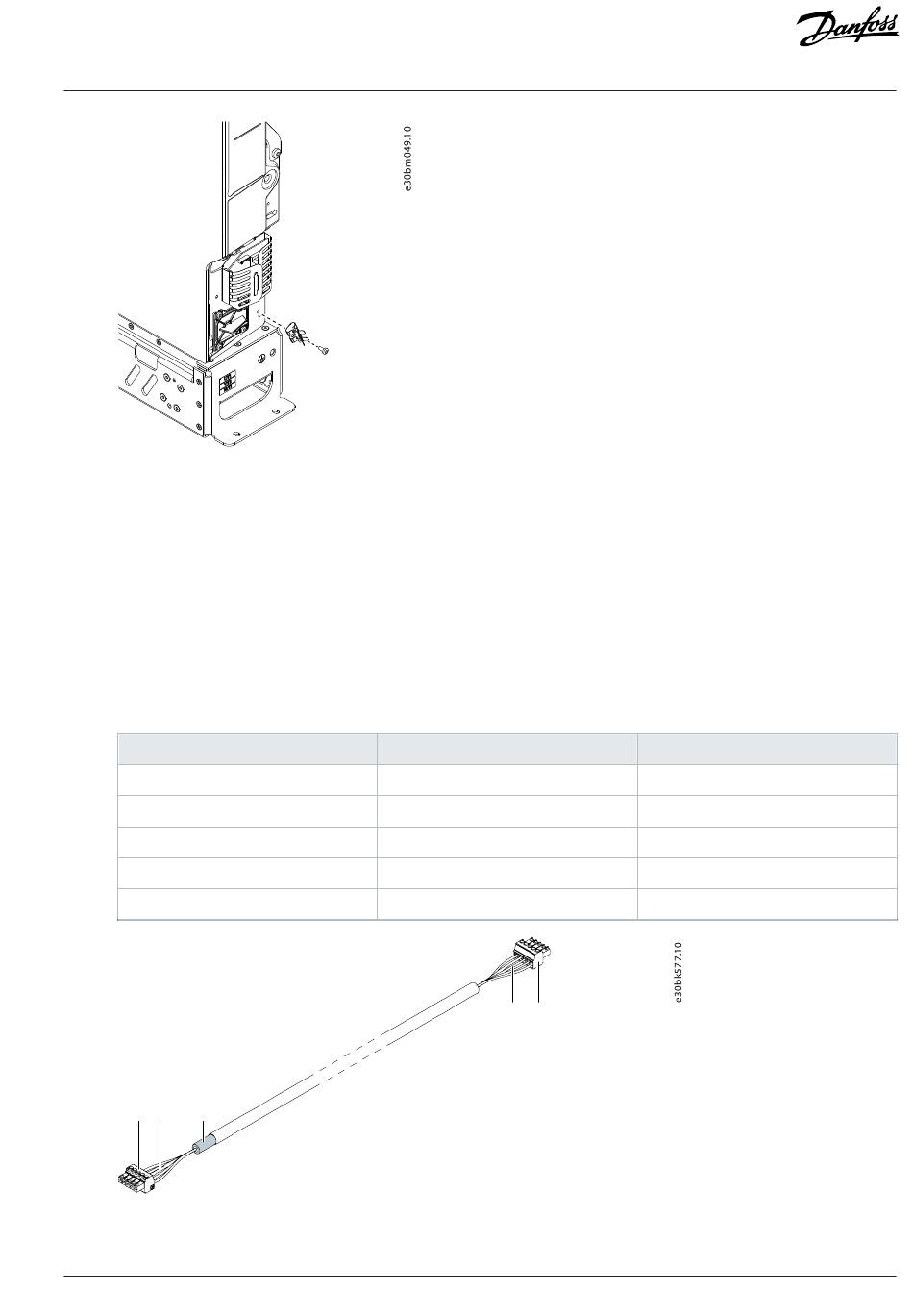

Figure 16: Mounting the Relief Plate
6.
Reinstall the cover of the AuxBus isolation board. Use the old M4x8 combi screw or the spare one provided in the delivery. Use a
TX20 bit and tighten the screw to torque 2.2 Nm.
4.8 Preparing the AuxBus Cable
1. Cut the cable to the required length.
2.
To reveal the wires, strip the cable at both ends.
3.
At 1 end of the cable, remove approximately 15 mm (0.59 in) of the cable insulation.
4. Strip the wires 7 mm (0.28 in).
5.
Connect the wires to the terminals included in the delivery. Use the tightening torque 0.22–0.25 Nm (1.9–2.2 in-lb).
Table 3: Wiring of the AuxBus Terminals
Pin
1
2
3
4
5
1 2 3
Figure 17: The Ready AuxBus Cable
Danfoss Drives Oy © 2024.11
Wire color
White
Brown
Green
Yellow
Grey
2 1
Electrical Installation
Signal
+24 V
GND
CAN_H
CAN_L
+24 V
