Installation Guide | iC7 Series Liquid-cooled dU/dt Filter OF7U1/OF7U2

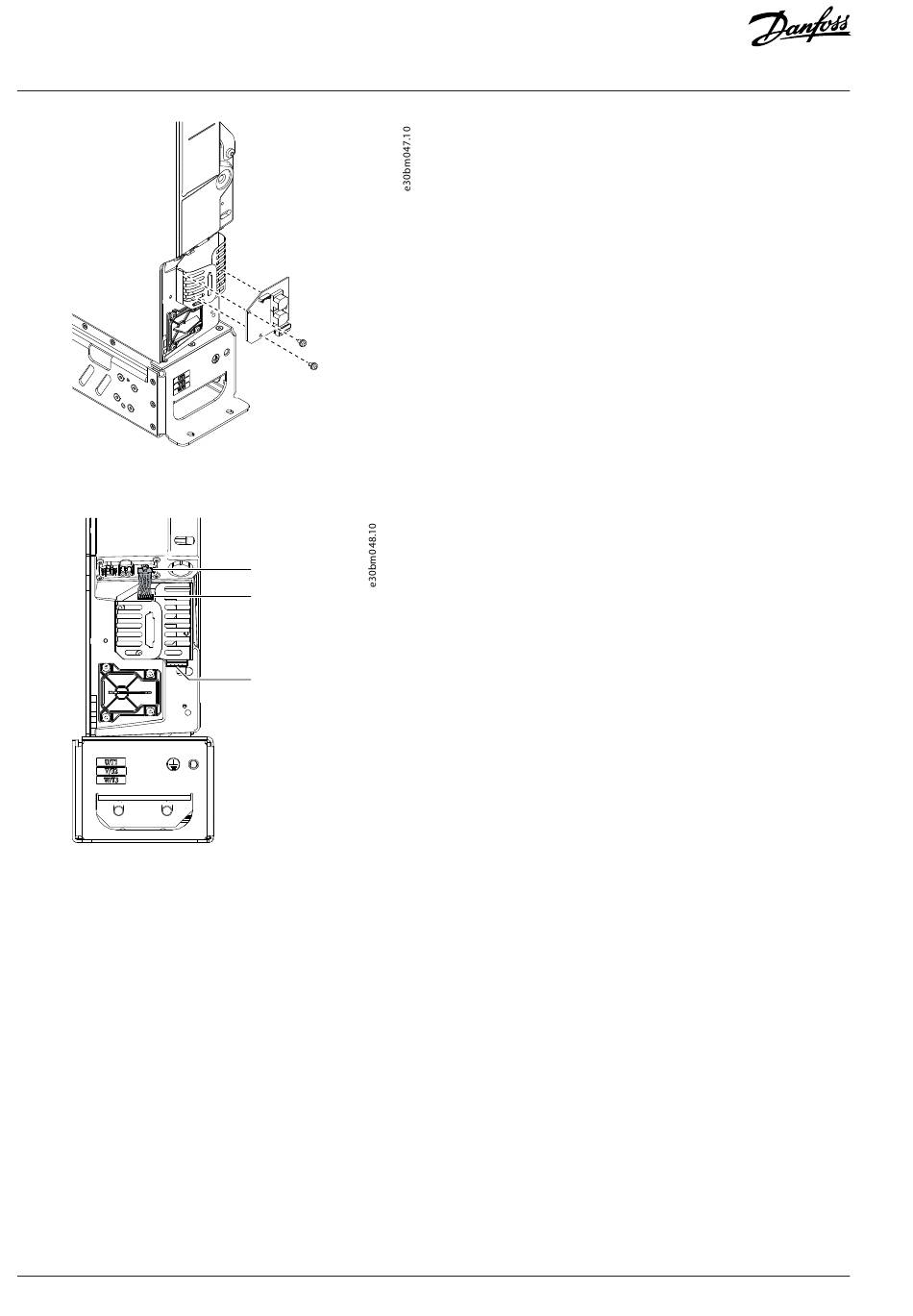

Figure 14: Mounting the AuxBus Isolation Board
4.
Connect the AuxBus wire harness to terminal X78 on the AuxBus isolation board and to terminal X77 on the system module.
Figure 15: AuxBus Wire Harness Connection
5.
Mount the relief plate with a M4x8 screw. Use a TX20 bit and tighten the screw to torque 2.2 Nm.
12
| Danfoss Drives Oy © 2024.11
X77
X78
X79
Electrical Installation
AN447722773363en-000201 / 172K1108B
