Section View - EGR Rolltrac RT040552ML Installation Instructions Manual

7

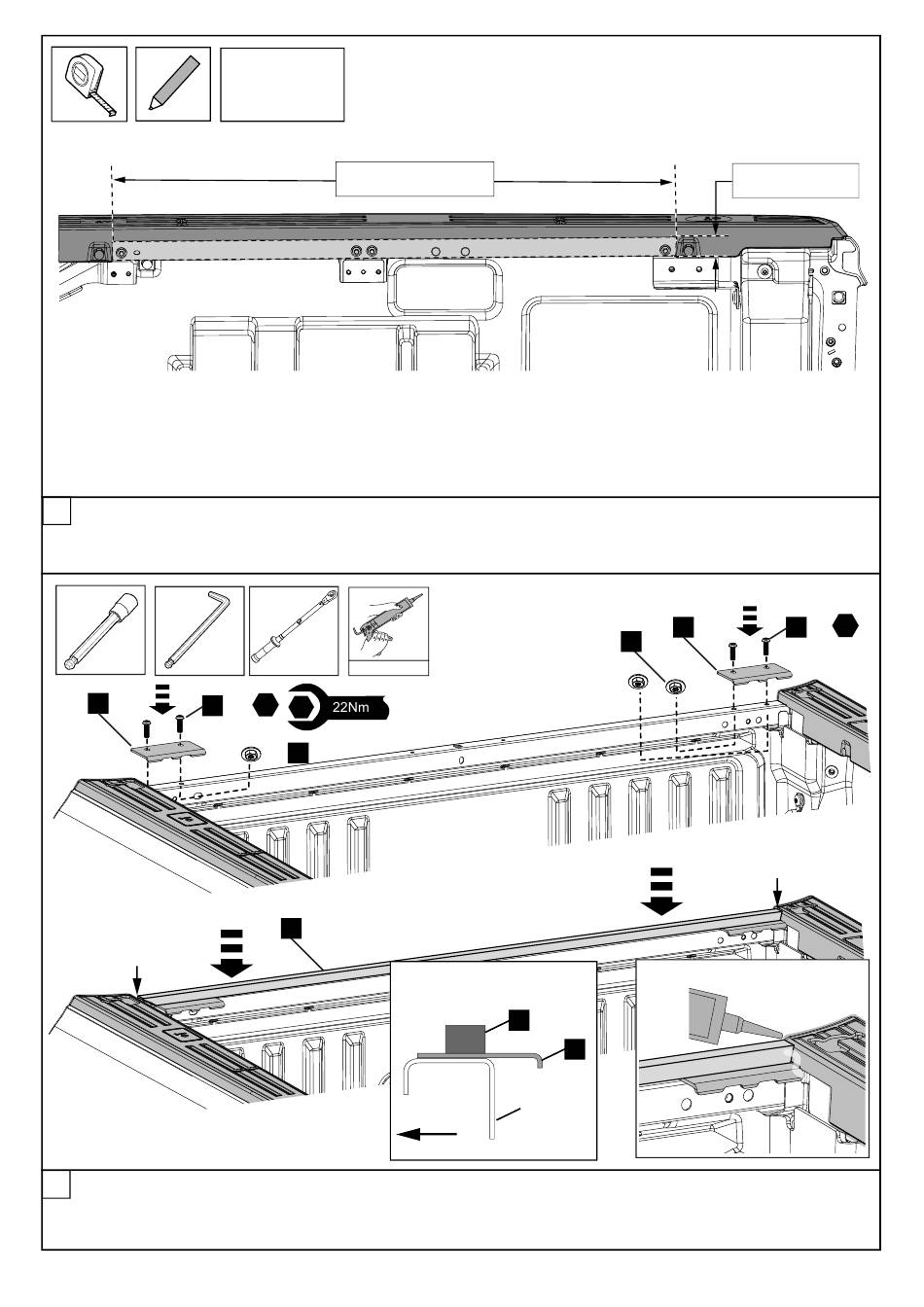

Inside the tub locate the RHS bed cap and cover the inside face with masking tape to allow marking with pen and
avoid scratching during trimming. Mark the bed cap as shown above and trim the area using suitable tool.
Repeat for LHS.
5mm
9
SEAL TOUCH
8
Fit the two h-bar corner brackets (9) to the top of the front of the tub and secure with two screws (21). Repeat for the
LHS. Apply the front rail seal (17) along the top of the h-bar as shown and ensure ends touch the endcap. Apply
Silicone in the gap between the rail seal, bracket and tub rail as shown. NOTE: Seal all holes in the tub as required.
ISSUE 1: 2/08/24
-- EGR Document ID#123700 v4
Cutting device
needed to trim
bed cap
947mm / 37.28''
5mm
NOT SUPPLIED
1
1
21
x2
x2
38
17
2024-11-16 09:38:14

SECTION VIEW

17
9
TUB
FRONT
Page 9 of 25
chaumont --
BED CAP - RHS
34mm/1.33''
9
38
x2
SEAL TOUCH
1
21
x2
RT0402
