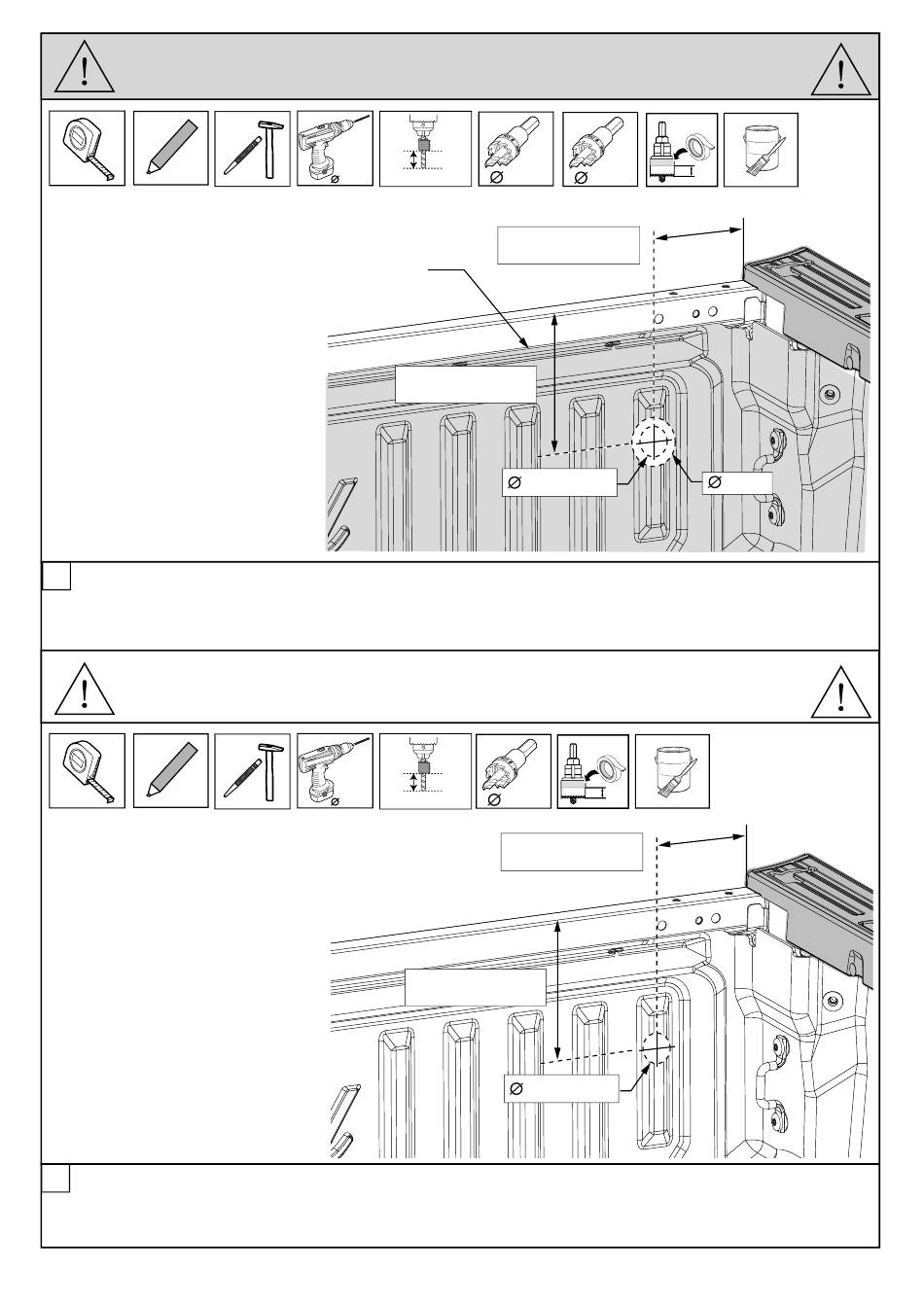

EGR Rolltrac RT040552ML Installation Instructions Manual page 6

FRONT OF TUB - RHS
2
On the tub front panel, measure and markup the positions for the front drain tubes.
Centre punch the locations and drill 5.5mm pilot hole through the tub and tubliner.
Using hole saw drill 60mm hole in the tubliner only, use 10mm stop. With a 38mm hole saw, drill hole in the tub
following the pilot hole. Deburr both holes and apply rust inhibitor to the metal. Repeat for LHS.
FRONT OF TUB - RHS
3
On the tub front panel, measure and markup the positions for the front drain tubes.
Centre punch the locations and drill 5.5mm pilot hole through the tub.
Using hole saw drill 60mm hole in the tubliner only, With a 38mm hole saw, drill hole in the tub following the pilot
hole use 10mm stop. Deburr both holes and apply rust inhibitor to the metal. Repeat for LHS.
ISSUE 1: 2/08/24
-- EGR Document ID#123700 v4
FRONT DRAIN TUBES - TUB DRILLING WITH TUBLINER
5.5mm
TUBLINER
FRONT DRAIN TUBES - TUB DRILLING (NO TUBLINER)
5.5mm
2024-11-16 09:38:14
60mm
DRILL STOP 10mm
127mm / 5''
185mm / 7¼
38mm / 1½"
38mm
DRILL STOP 10mm
127mm / 5''
185mm / 7¼
38mm / 1½"
