| Introduction
C
1
HAPTER
Overview

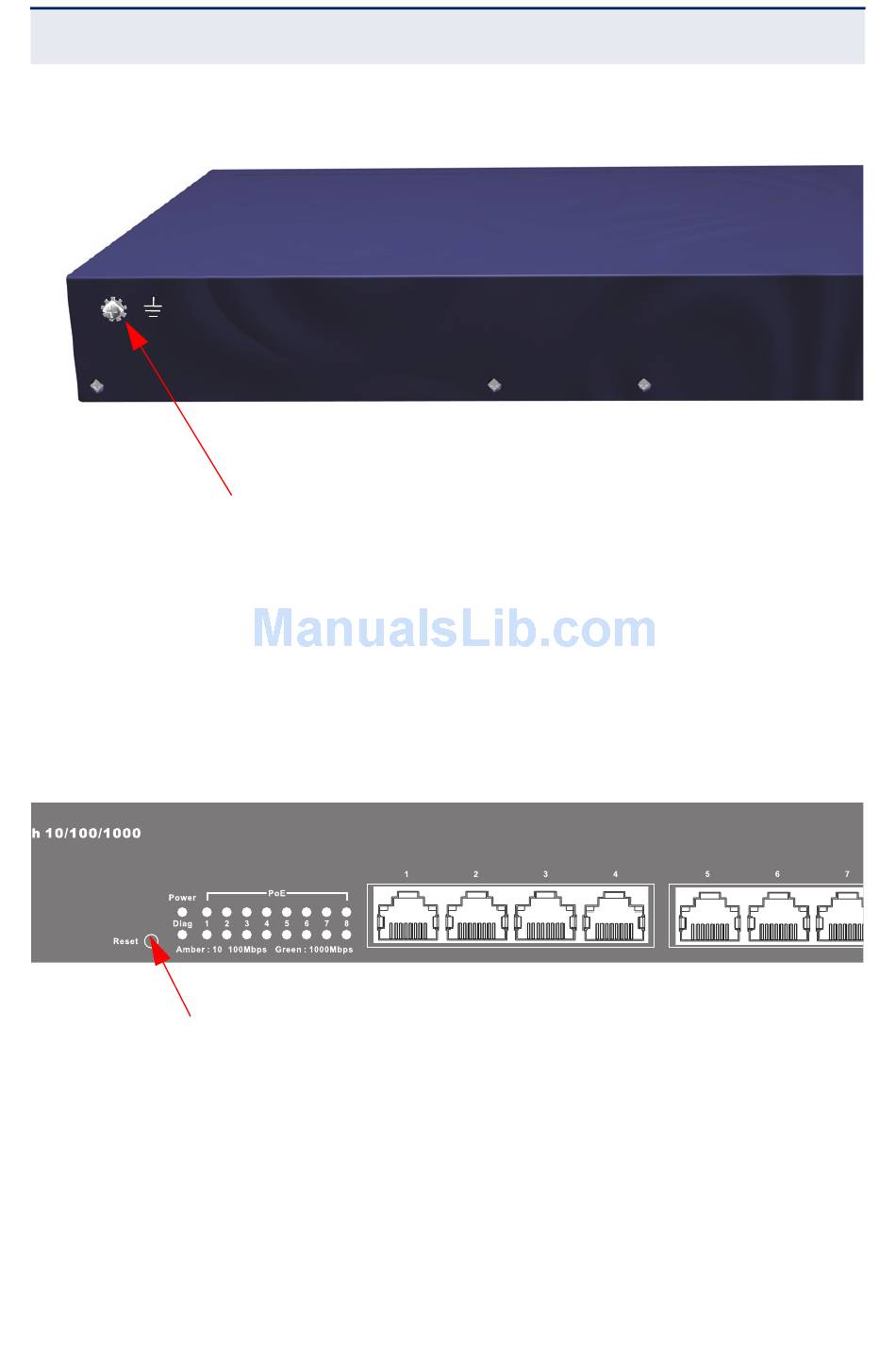

Figure 5: Grounding Point
AC 100-240Vac,
Grounding Point
R
B
ESET
UTTON
If you encounter any switch malfunctions, such as a hang or non-recoverable
error, you might want to reset the switch to its default configuration by pressing
and holding the reset button for more than 10 seconds. The reset button is
located on the front panel.
Figure 6: Reset Button
/
Reset Button
– 28 –
