In the figure below, the switch is supplying power to three PoE devices. It is also
providing dedicated 1000 Mbps full-duplex data connections to these devices. In
addition, other non-PoE devices can be connected to the switch.

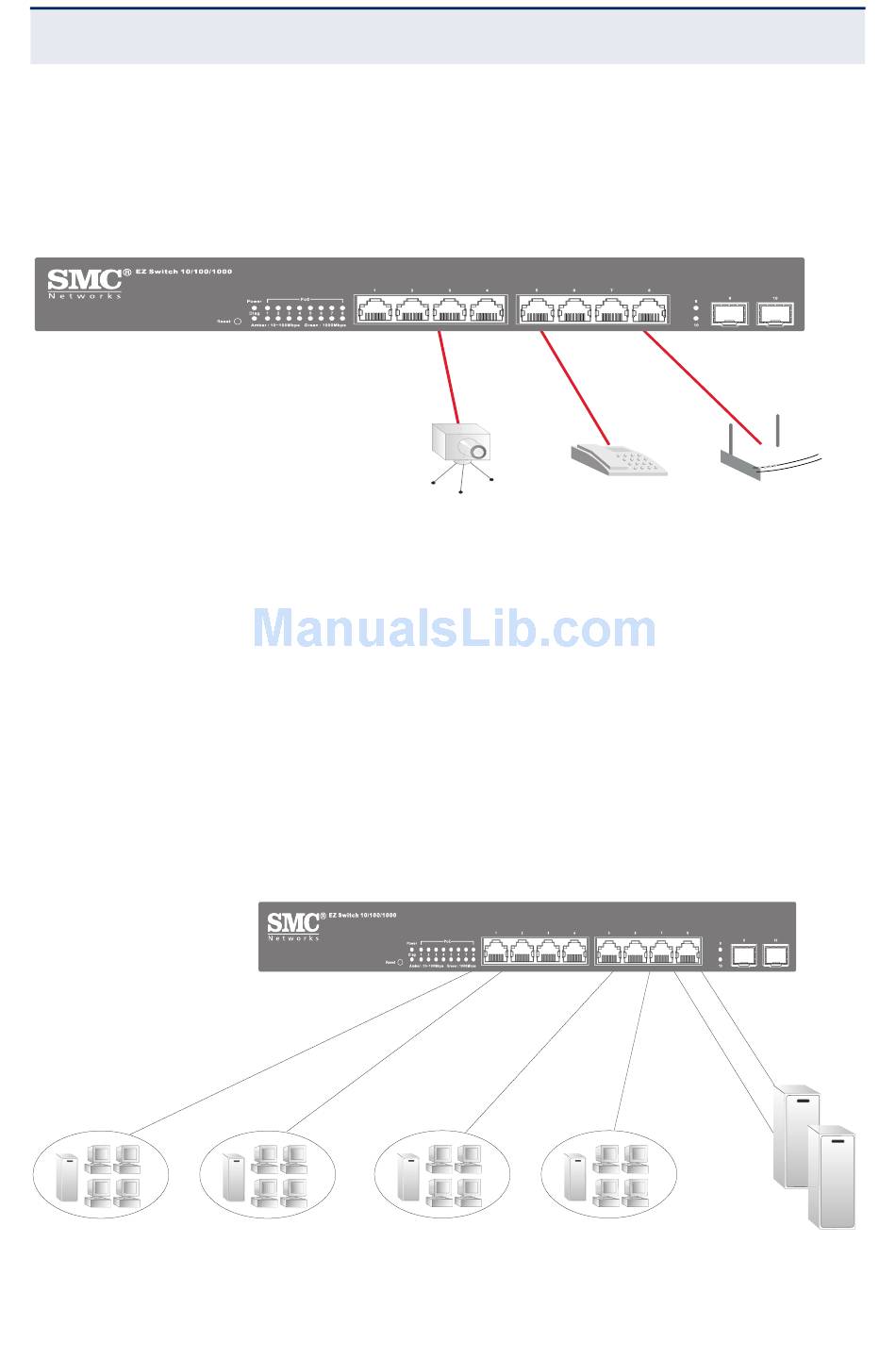

Figure 8: Supplying PoE Power

SMCGS10P-Smart
Power-over-Ethernet Devices
N A
ETWORK GGREGATION
With 10 parallel bridging ports (i.e., 10 distinct collision domains), this switch
can collapse a complex network down into a single efficient bridged node,
increasing overall bandwidth and throughput.
In the figure below, the 10/100/1000BASE-T ports on the switch are providing
1000 Mbps connectivity for up to eight segments, while the 1000BASE-SFP ports
are providing connectivity for two Gigabit segments.

Figure 9: Network Aggregation Plan

...
Web Camera
P
LAN
SMCGS10P-Smart
10/100/1000 Mbps
Segments
– 32 –
C 2
HAPTER
Application Examples
IP Telephone
...
| Network Planning
Access Point
1000 Mbps
Segments
Server Farm
