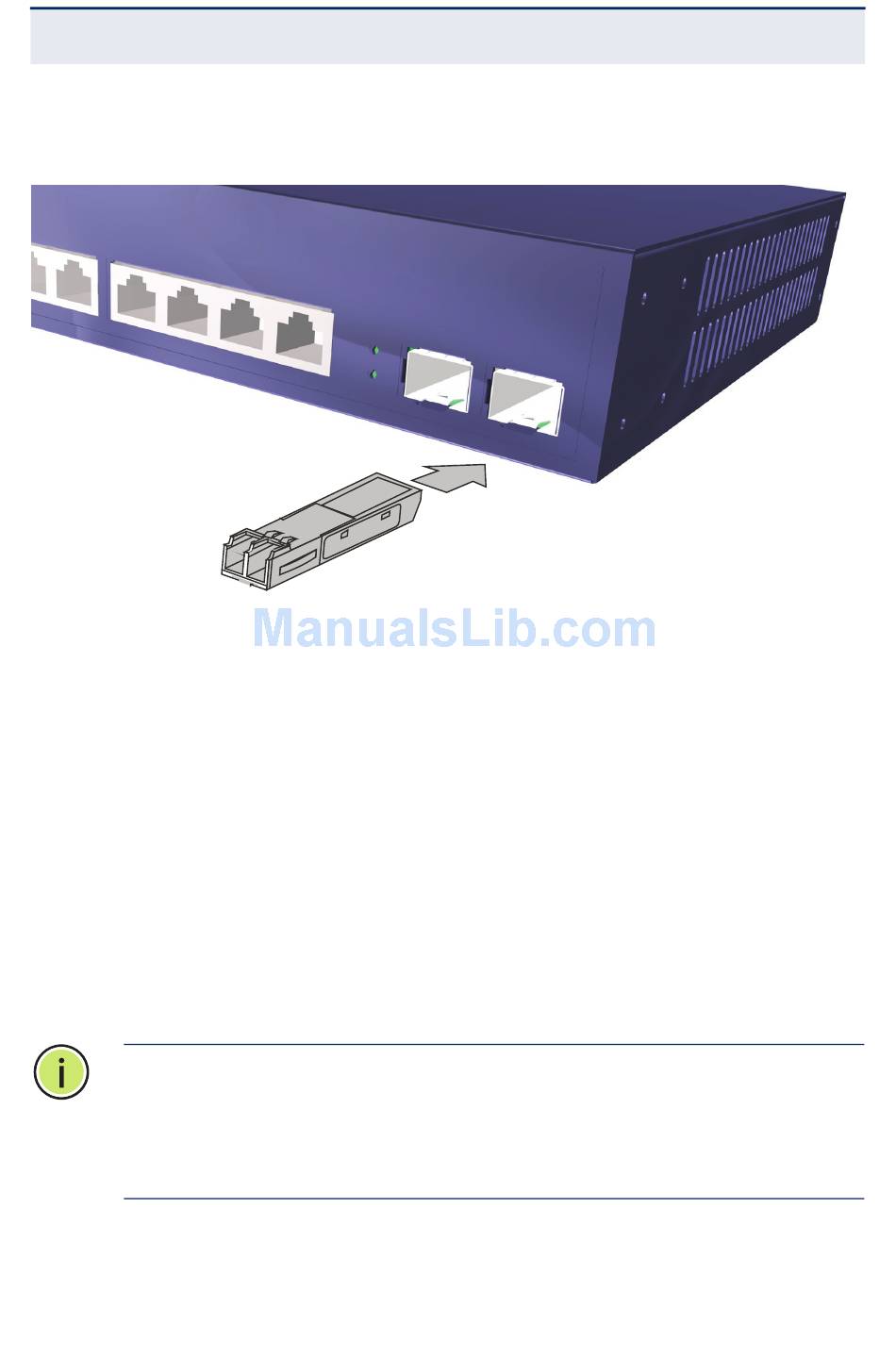

Figure 18: Installing an Optional SFP Transceiver into a Slot

This switch supports 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, and
100BASE-FX SFP-compatible transceivers.
To install an SFP transceiver, do the following:
Consider network and cabling requirements to select an appropriate SFP
1.
transceiver type.
Insert the transceiver with the optical connector facing outward and the slot
2.
connector facing down. Note that SFP transceivers are keyed so they can
only be installed in one orientation.
Slide the SFP transceiver into the slot until it clicks into place.
3.
SFP transceivers are hot-swappable. The switch does not need to
N :
OTE
be powered off before installing or removing the transceiver. However,
always first disconnect the network cable before removing the
transceiver.
SFP transceivers are not provided in the switch package.
N :
OTE
O SFP T
PTIONAL RANSCEIVER
– 43 –
