- Page 2 No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.
-
Page 3: Limited Warranty
All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. - Page 4 RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.
-
Page 5: Federal Communication Commission Interference Statement
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. SMC is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. - Page 6 • Electrostatic Discharge according to EN 61000-4-2: 2001 ED.1.2 (Contact Discharge: ±4 kV, Air Discharge: ±8 kV) • Radio-frequency electromagnetic field according to EN 61000-4-3: 2006 ED.3.0 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m) • Electrical fast transient/burst according to EN 61000-4-4: 2004 ED.2.0 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV) •...
-
Page 7: Fcc Certifications

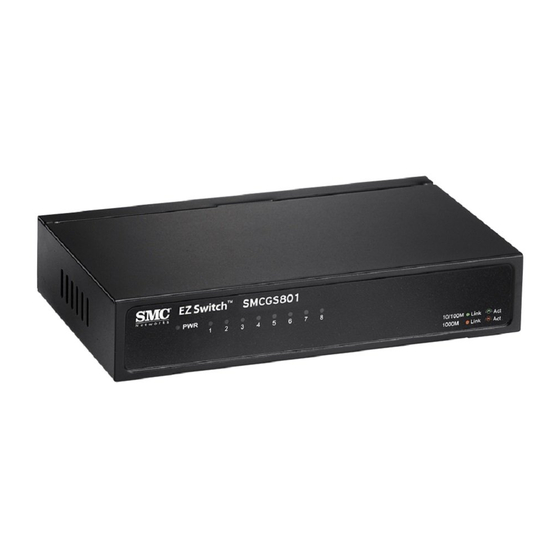

FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 8 Introduction SMCGS501/SMCGS801 is a powerful, high-performance Gigabit Ethernet switch, with 5/8 ports capable of 10/100/1000 Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications.
-
Page 9: Key Features
Key Features Complies with 10BASE-T specifications of the IEEE802.3 standard Complies with 100BASE-TX specifications of the IEEE802.3u standard Complies with 1000BASE-T specifications of the IEEE802.3ab standard 5/8 - 10/100/1000Mbps RJ-45 ports Supports MDI/MDI-X auto crossover Supports full and half duplex operation on all ports Supports back-pressure (half duplex) and full duplex flow control (IEEE 802.3x) Wire-speed packet filtering and forwarding rate Store-and-forward architecture filters fragment &... -
Page 10: Leds Definition
LEDs Definition The switch contains one power LED for the device, Link/Act LED for each port that shows the activities and information of the ports. Please refer to the following table for LEDs definition: Status Operation Steady Green The switch is powered on Power The switch is powered off Steady Green... -
Page 11: Station Connection
Station Connection Connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station’s network adapter. Power on the switch and then system is ready. Switches Connection In making a switch interconnection, you could use any port to connect another switch with straight or crossover cable. -
Page 12: Product Specifications
Product Specifications IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T Standard IEEE802.3x full duplex flow control Pre-IEEE 802.3az IEEE 802.1p QoS Interface 5/8* 10/100/1000 Mbps RJ-45 ports Network 10/100/1000 Mbps Auto-negotiation Data Rate 10/100Mbps: Full-duplex, Half-duplex Transmission Mode 1000Mbps: Full-duplex 5 Port:10Gbps Switching Capacity 8 Port:16Gbps Switching Forwarding...
