I
NTRODUCTION

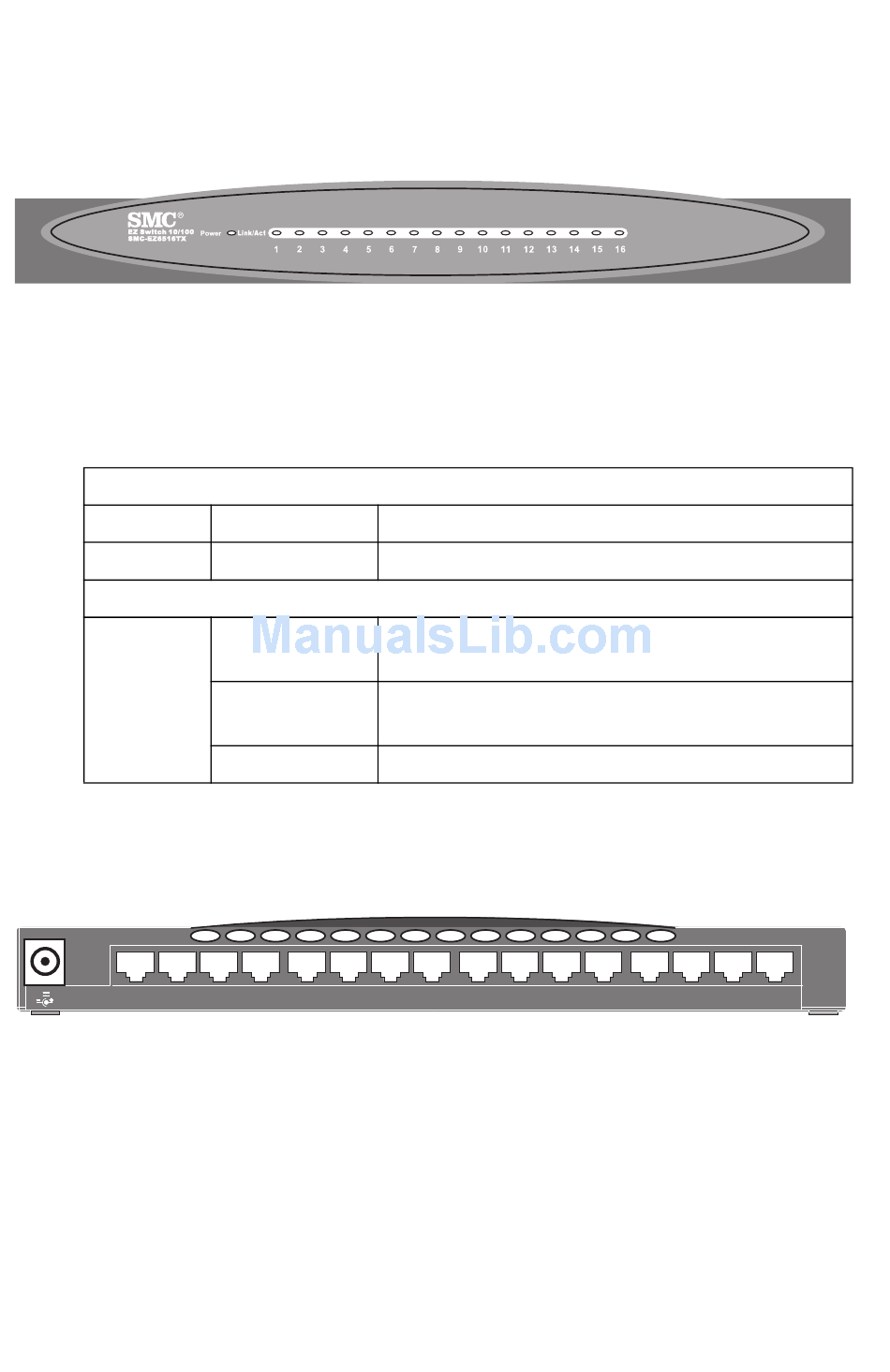

LED Indicators
The front panel of the switch provides status LEDs for "at-a-glance"
system monitoring. The following table details the functions of the various
indicators.
Port and System Status LEDs
LED
Power
Ports
Link/Act
Rear Panel
9V
9V
1A
1A
16
15
This EZ Switch 10/100 model features 16 10BASE-T/100BASE-TX
ports with RJ-45 connectors located on the rear panel of the switch.
Because all ports on the switch support automatic MDI/MDI-X
operation, you can use straight-through cables for all network connections
to PCs or servers, or to other switches or hubs.
The DC power receptacle is located on the rear panel of the switch.
2
Condition
On
On
Off
Flashing
14
13
12
11
Status
The switch is receiving power.
The port has established a valid network
connection.
The port has not established any network
connection.
Traffic is passing through the port.
10
9
8
7
6
5
4
3
2
1
