Congratulations on your purchase of the Barricade™ Broadband
Router. SMC is proud to provide you with a powerful yet simple
communication device for connecting your local area network
(LAN) to the Internet. For those who want to surf the Internet at
the lowest possible cost, this Broadband Router provides a
convenient and powerful solution.
LED Indicators

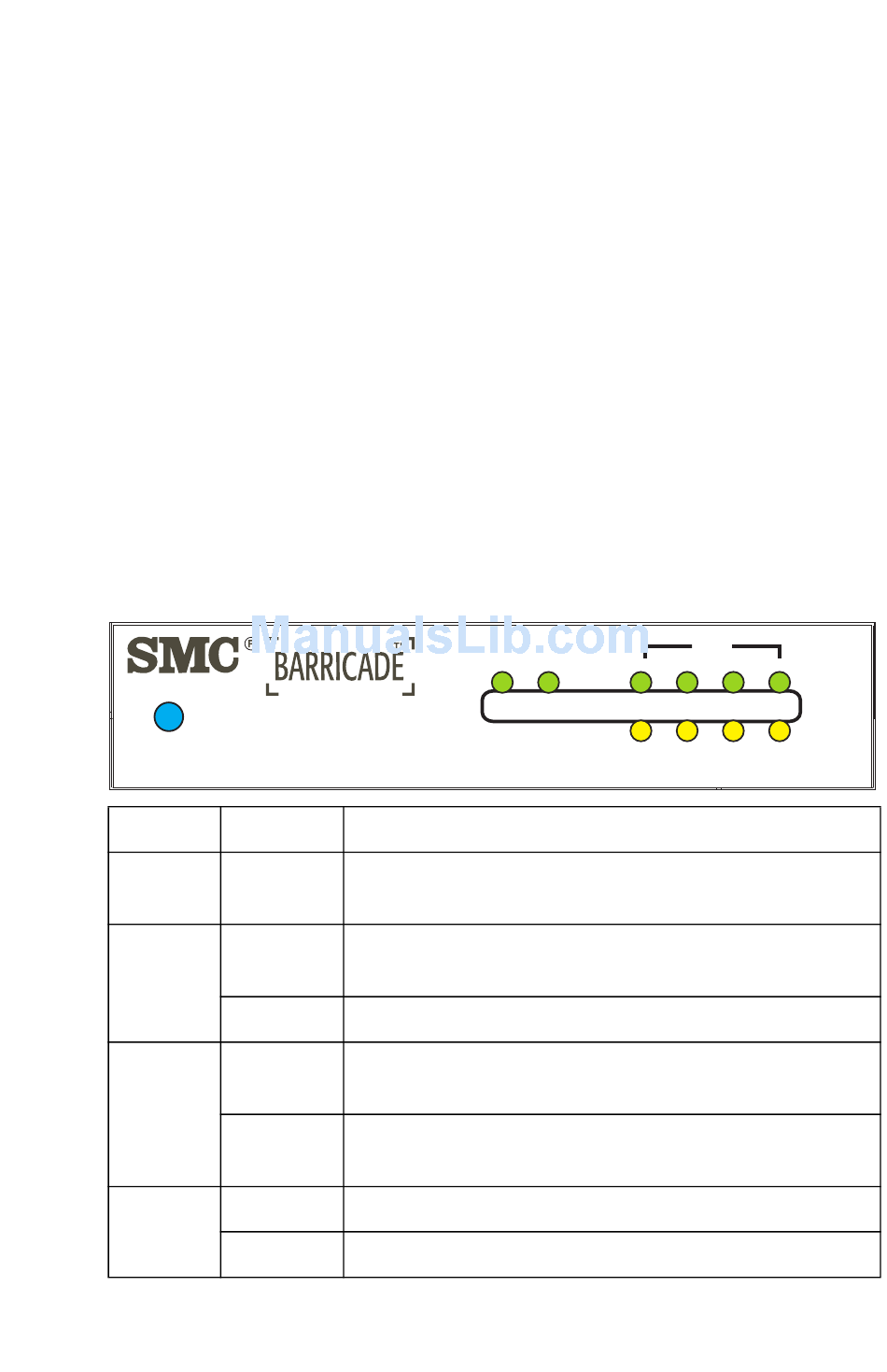

The SMC7004ABR includes four status LED indicators, as
described in the following figure and table.
SMC7004ABR
Reset
LED
Power
(Green)
WAN
(Green)
Link/Act
(Green)
10/100
(Amber)
B
ARRICADE
Status
Description
On
Barricade Router is receiving power.
On
The WAN port has established a valid network
connection.
Flashing
The WAN port is transmitting or receiving traffic.
On
The indicated LAN port has established a valid
network connection.
Flashing
The indicated LAN port is transmitting or receiving
traffic.
On
The indicated LAN port is operating at 100 Mbps.
Off
The indicated LAN port is operating at 10 Mbps.
A
BOUT THE
Power
WAN
R
OUTER
LAN
1
2
3
4
Link/Act
10/100
1
