AGP CG125 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
R
Wall Chaser
CG125
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CG125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGP CG125

Summary of Contents for AGP CG125

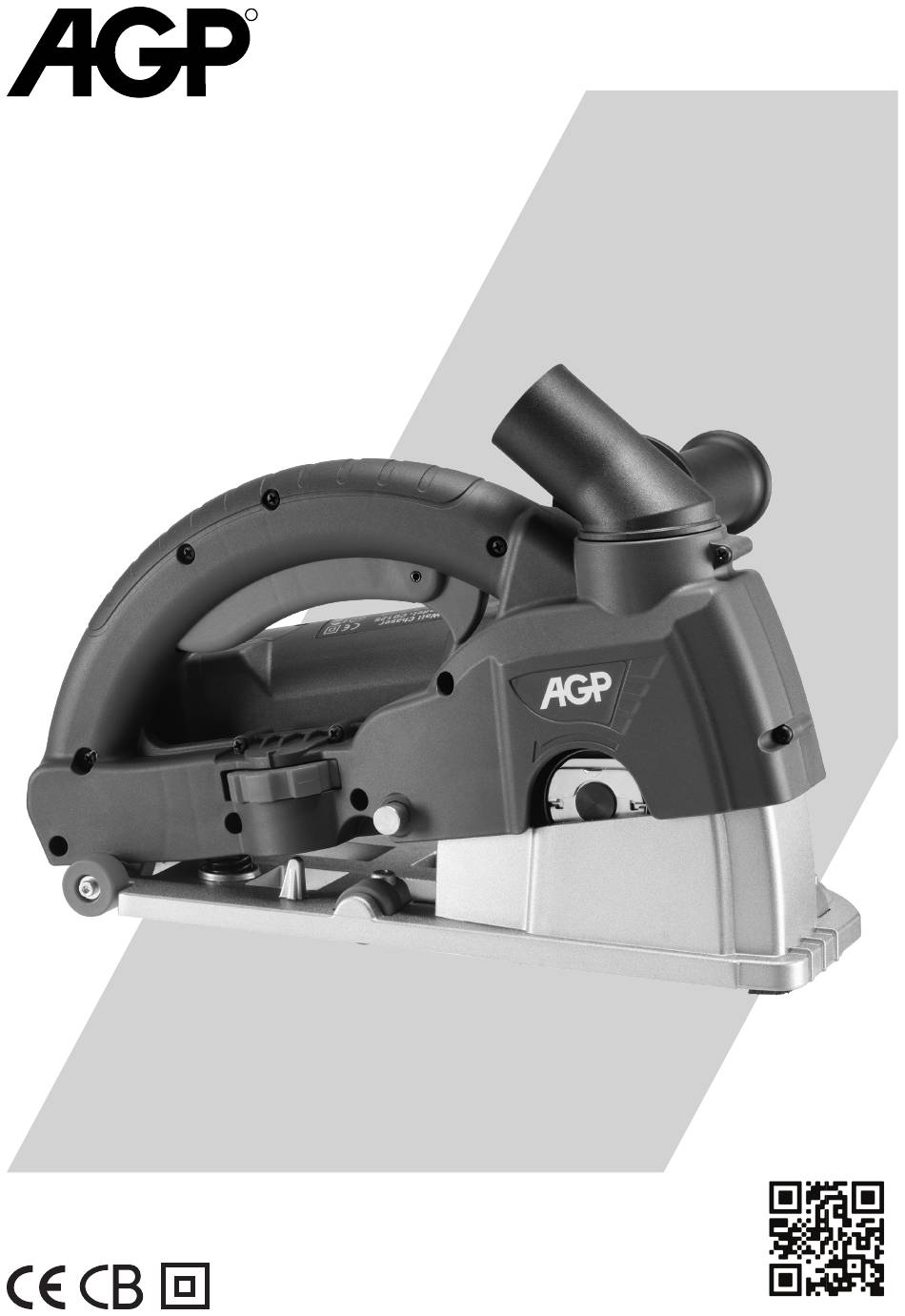

  • Page 1 Wall Chaser CG125 Instruction Manual...

  • Page 2: Specifications

    SPECIFICATIONS Model CG125 Power Input 1800 W Voltage, Frequency 220-240 V~50/60 Hz or 110-120 V~50/60 Hz (See machine nameplate) No Load Speed (n 9000 min Max. Blade Diameter Ø 125 mm Blade bore size 22.23 mm (7/8") Max Depth of Cut...

  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 4: Cut-Off Machine Safety Warnings

    attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts.

  • Page 5: Kickback And Related Warnings

    wheel flanges support the wheel thus reducing the possibility of wheel breakage. The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. The arbour size of wheels and flanges must properly fit the spindle of the power tool.
  • Page 6 kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. Never place your hand near the rotating accessory. Accessory may kickback over your hand. Do not position your body in line with the rotating wheel.

  • Page 7: Specific Safety Rules

    ..wear safety-approved hard hat ..warning of general danger ..Keep hands clear – pinching hazard. ….class II tool DANGER! Keep hands away from cutting area and the ..read these instructions blade..always wear eye protection rotating parts - entanglement hazard. Keep hands, loose clothing and long hair away ..always wear a dust mask.

  • Page 8: Electrical Connection

    18. Use the auxiliary handles supplied with the tool. Loss of control can cause personal injury. 19. Use a residual current device (PRCD) (not included) to protect from current surges. 20. Keep power supply cord clear from the working range of the machine. Always lead the cable away behind you.

  • Page 9: Carton Contents

    CARTON CONTENTS Wall Chaser Machine Spacers Set: 15mm, 10mm, 6mm Side Handle INSTALLING THE DIAMOND BLADES AND ADJUSTING THE GROOVE WIDTH INSTALLING THE BLADES NOTE: If the Tool-Free Arbor Screw cannot be removed because the arbor just turns together with the screw (freewheeling), hold the rim of the Tool-Free Arbor Screw while loosening.
  • Page 10 CAUTION: For deep cuts in hard materials, it is recommended to pre-cut about 20mm before performing the final full depth cut. This will be faster, more efficient and less stressful to the motor. Dust Port VACUUM DUST COLLECTION There is a vacuum port provided on the blade cover to collect dust when operating.

  • Page 11: Operation

    HOW TO USE THE TOOL Effective control of this powerful saw requires two-handed operation for maximum protection. Hold the saw firmly WITH BOTH HANDS to prevent loss of control which could cause personal injury. SIGHTING NOTCHES The sighting notches at the front of the machine show the operator the Inner Blade Notch line of cut.

  • Page 12: Maintenance

    MAINTENANCE Every 50 hours of operation blow compressed air through the motor while running at no load to clean out accumulated dust. (If operating in especially dusty conditions, perform this operation more often.) KEEP TOOL CLEAN All plastic parts should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material.
  • Page 13 WIRING...

  • Page 14: Exploded View

    EXPLODED VIEW...

  • Page 15: Parts List

    PARTS LIST Parts Name Q'TY Parts Name Q'TY POWER SUPPLY CABLE (VDE-1.0x2Cx4M-H07RNF) BALL BEARING (6203) CORD ARMOR FELT OILER (Ø24xØ34x3) PANHEAD TAPPING SCREW (M4x14) PARALLEL KEY (5x5x10) CABLE CLIP SPINDLE HALL EFFECT SWITCH SPACER (Ø22.45-15MM) PANHEAD TAPPING SCREW (M4x12) SPACER (Ø22.45-10MM) INNER COVER SPACER (Ø22.45-6MM) PANHEAD TAPPING SCREW (M4x35)
  • Page 16 Noise/vibration information Measured in accordance with EN 60745-1 Model no. : CG125 Noise level: Sound pressure level(L ): 95.5 dB(A) Sound power level(L ): 106.5 dB(A) K= 3 dB Vibration level: a = 2.8 m/s K = 1.5 m/s The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it...
