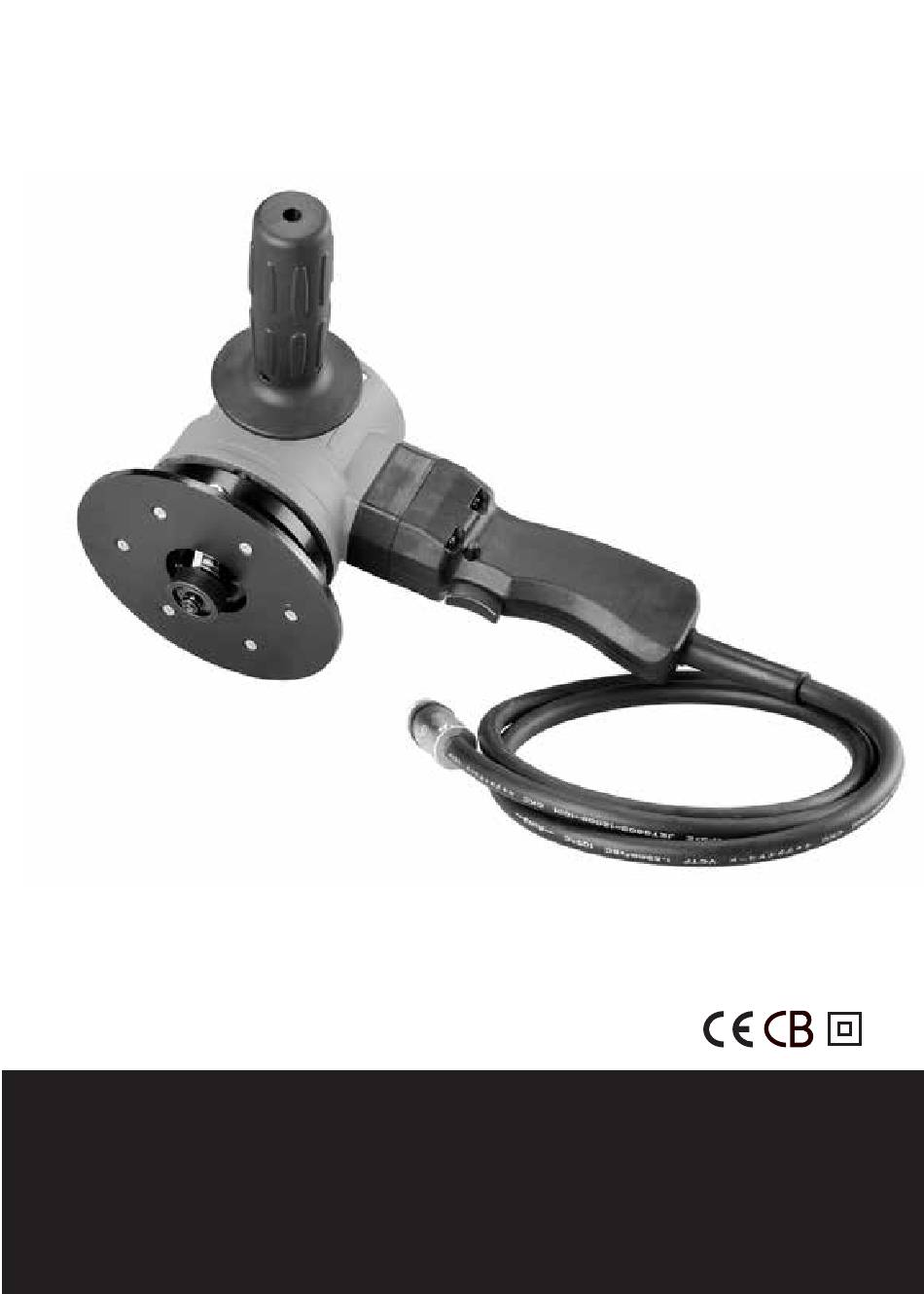

High Frequency
Instruction manual
For your personal safety,
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Warning:
Only tools equipped with over load protection, when motor has been cut
off due to over load, always switch on machine with no load for at least 3
minutes to reduce temperature before switch on again to avoid burn out to
the motor.
Beveler
Version:20150306
Advertisement
Table of Contents
Related Manuals for AGP HP1400
Summary of Contents for AGP HP1400
- Page 1 High Frequency Beveler Instruction manual For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Warning: Only tools equipped with over load protection, when motor has been cut off due to over load, always switch on machine with no load for at least 3 minutes to reduce temperature before switch on again to avoid burn out to the motor.
- Page 2 Power output 1400W No Load min 6000-8550 Bevel Angle 45 Deg.(Optional 30 Deg.) Max. Bevel Height (45 Deg.) Min. Diameter For Inside Bevels 30mm Inserts Square, ISO SEMT13T3 Dimensions 310mm x 150mm x 150mm Net Weight 4.4kg (9.68Lbs) Anti-Vibration Side Handle Lock Pin Vertical, direct drive brushless motor...
-
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS When operating a power tool outdoors, use an extension cord suitable for outdoor use. WARNING! Read all safety warnings and Use of a cord suitable for outdoor use reduces all instructions. Failure to follow the the risk of electric shock. I f o p e rat i n g a p owe r to o l i n a d a m p warnings and instructions may result in location is unavoidable, use an ear th... - Page 4 ensure these are connected and properly 5) SERVICE used. Use of dust collection can reduce dust- Have your power tool serviced by a qualified related hazards. repair person using only identical replacement parts. This will ensure that the safety of the power 4) POWER TOOL USE AND CARE tool is maintained.
-
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES INTRODUCTION Never operate the tool in an area with This machine is a special, high frequency power flammable solids, liquids, or gases. tool which must be used in conjunction with a special high frequency converter for its power Wa r n i n g : R i s k o f i n j u r y f r o m h i g h - supply. -
Page 6: Carton Contents
much higher power output. This requires the use of the chamfer height as desired. a high frequency converter to supply the required retighten the 2 lock screws. frequency. This high frequency beveler is designed to be powered by a special high frequency converter which converts the 50 or 60Hz supplied from the grid to up to 285Hz. - Page 7 CHANGING THE INDEXABLE CARBIDE REMOVING THE TOOL HOLDER - INSERTS DISCONNECT TOOL FROM POWER SOURCE. - DISCONNECT TOOL FROM POWER SOURCE. WARNING: Danger of Burns! Tool holder and WARNING: Danger of Burns! Tool holder and carbide inserts become hot in operation. carbide inserts become hot in operation.
-
Page 8: Maintenance
Switching the machine on and off spinning clockwise, so always operate in the direction from left to right (up mill). To switch on: When performing inside bevels, work in a • Press the trigger switch to start. clockwise direction only. To lock the switch on, press the lock pin next to the Do not bevel more than about 2mm per pass. - Page 9 WIRING...
-
Page 10: Exploded View
EXPLODED VIEW NO.01~42 A1~A4 B1~B3 V1.0 41B 41C OPTIONAL B1 B2 B3... -
Page 11: Parts List
PARTS LIST Parts Name Q'TY POWER SUPPLY CABLE 155CM CORD ARMOR CABLE CLIP SCREW M4 x 16 SWITCH HANDLE COVER - RIGHT HANDLE COVER - LEFT SCREW M4 x 20 SCREW M4 x 35 SOCKET CAP SCREW M5 x 12 ANTI-VIBRATION MOUNT SIDE HANDLE MOTOR HOUSING...
