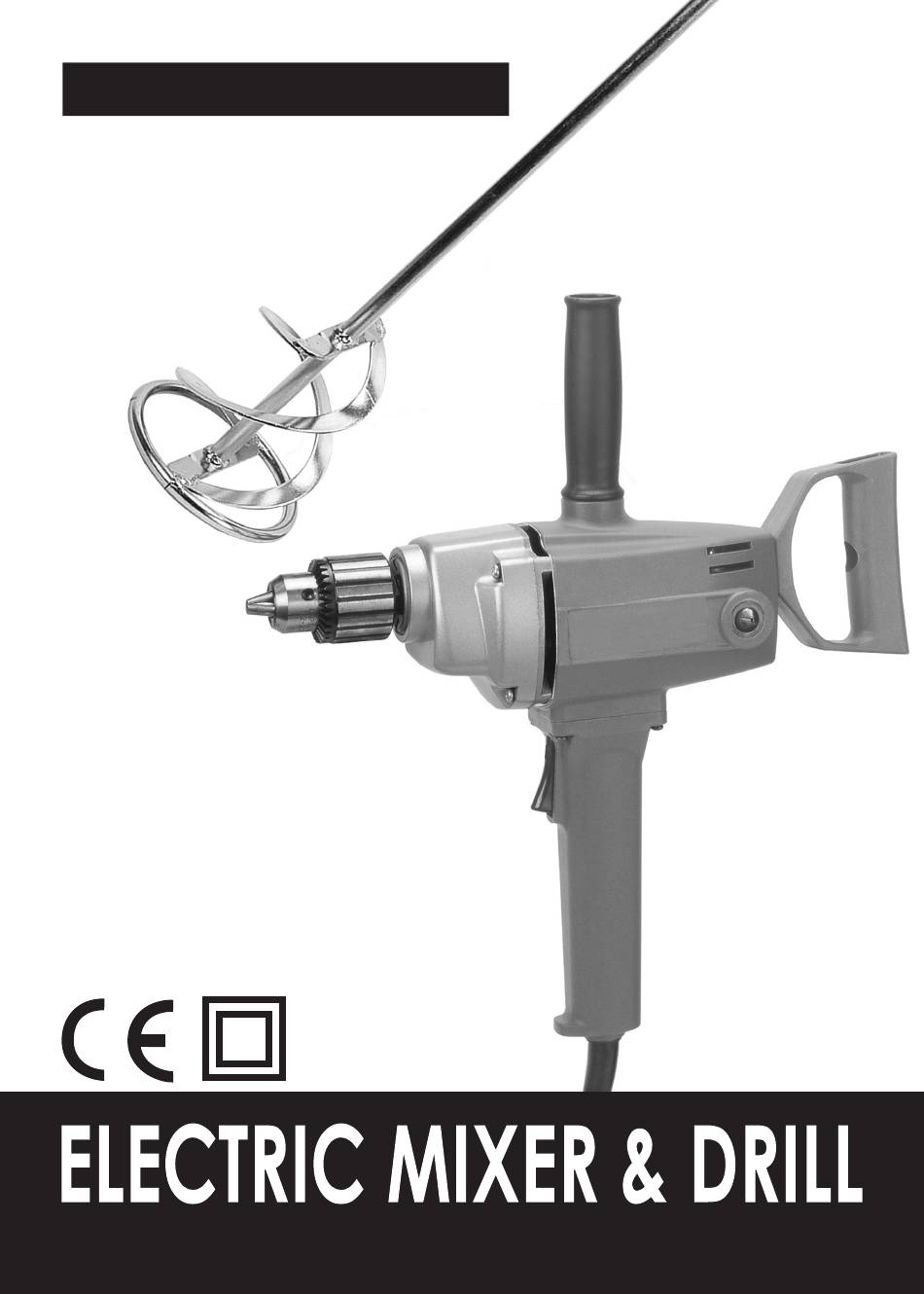

- Page 1 INSTRUCTION MANUAL Original instructions For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Version:20110710...
- Page 2 Power Input 1100W Voltage See machine nameplate No Load min 12.6 Spindle Thread 1/2"-20 Unf Max. Mixing Paddle Diameter 120mm (4-11/16") Steel: 13mm (1/2") Drilling Capacity Wood: 35mm (1-3/8") Switch Single Speed Net Weight 3.3 Kg (7.3 Lbs ) Handle 13mm Chuck Carbon Cap Trigger Switch...
- Page 3 GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
-
Page 5: Carton Contents
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5) SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts. -
Page 6: Bench Stand
Check the paddle for cracks, bent shaft or other damage before operation. Replace bent, cracked or damaged paddle immediately. Never start the tool with the paddle laying on the floor or any dangerous position. Important: After completing mixing medium, release power switch and wait for coasting paddle to stop completely before removing from medium or putting the machine down. -
Page 7: Drilling In Wood
TOOL CLAMP When drilling workpieces, they must be secured tightly,e.g. with a tool clamp. This stops the tool from twisting and thus prevents accidents. OTHER TIPS When drilling deep bores, dust and chips must always be removed by taking the drill bit out of the bore. -
Page 8: Maintenance
control which could cause personal injury. Protect your eyes from injury with safety glasses or goggles. WARNING: Keep the cord behind the operator and away from mixing area to prevent it from becoming entangled in the paddle. After completing the mixing operation, release the power switch and wait for the coasting paddle to stop completely before putting the machine down. - Page 9 WIRING...
-
Page 10: Exploded View
EXPLODED VIEW... -
Page 11: Parts List
PARTS LIST Parts Name Q'TY Parts Name Q'TY CHUCK (1/2"/5/8") CARBON BRUSH HOLDER (7x11) SPINDLE (1/2"x20/5/8"x16) CARBON BRUSH (7x11x16) PARALLEL KEY (5x5x10) BRUSH CAP (7x11) BEARING CLAMP MAIN HANDLE BALL BEARING (6203) PANHEAD TAPPING SCREW (M5x20) EXTERNAL CIRCLIP (S-17) SWITCH (110V&220V) PANHEAD TAPPING SCREW (M5x40) SWITCH HOLDER SPRING WASHER (M5)
