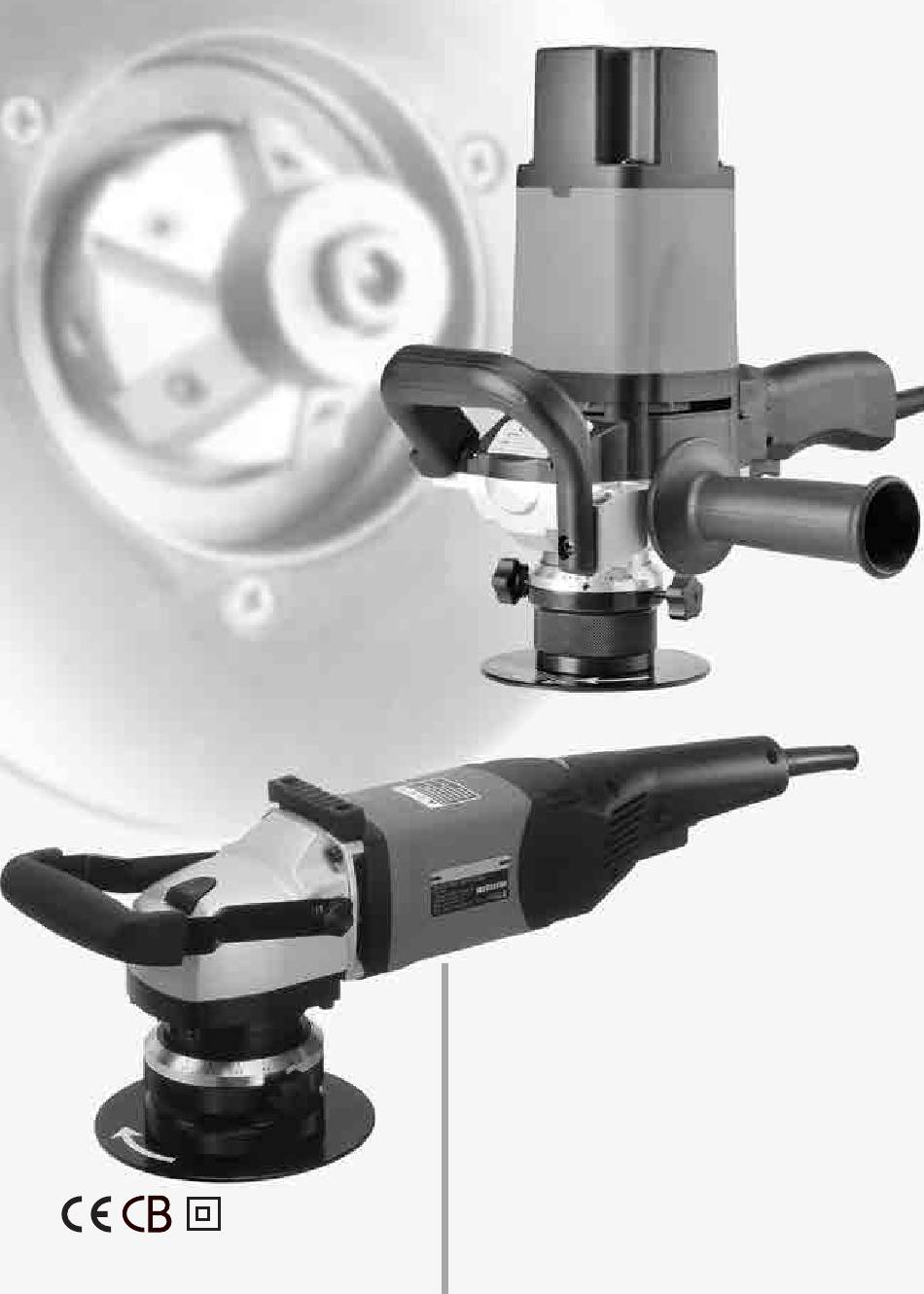

Instruction manual
∆1100W Electric Beveler Model
∆1800W Electric Beveler Model
Warning:
Only tools equipped with over load protection,
when motor has been cut off due to over load,
always switch on machine with no load for at
least 3 minutes to reduce temperature before
switch on again to avoid burn out to the motor.
Version:20160824
Advertisement
Table of Contents
Related Manuals for AGP EB6T
Summary of Contents for AGP EB6T
- Page 1 Electric Beveler For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Instruction manual ∆1100W Electric Beveler Model ∆1800W Electric Beveler Model Warning: Only tools equipped with over load protection, when motor has been cut off due to over load, always switch on machine with no load for at least 3 minutes to reduce temperature before switch on again to avoid burn out to the motor.
- Page 2 1100W Electric Beveler (Universal Motor Model) 1100W Power input Voltage See machine nameplate No load min 3000~6000 Bevel angle 45 deg.(optional 30 deg.) Max. bevel height (45 deg.) Min. diameter for inside bevels 30mm Net weight 4.5 kg (9.92Lbs) Auxiliary handle Side Handle(Attach to either side) Variable speed wheel On/off trigger switch...
- Page 3 1800W Electric Beveler (Universal Motor Model) 1800 W Power input Vlotage See machine nameplate No Load min 2300-6500 Speed Wheel Settings 1/ 2/ 3/ 4/ 5/ 6: 2300/ 2600/ 3700/ 4800/ 5800/ 6500 Std. Bevel Angle 45 Deg. Max. Chamfer Height 45 Deg.
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS When operating a power tool outdoors, use an extension cord suitable for outdoor use. WARNING! Read all safety warnings and Use of a cord suitable for outdoor use reduces all instructions. Failure to follow the the risk of electric shock. I f o p e rat i n g a p owe r to o l i n a d a m p warnings and instructions may result in electric shock, fire and/or serious injury. - Page 5 5) SERVICE ensure these are connected and properly used. Use of dust collection can reduce dust- Have your power tool serviced by a qualified related hazards. repair person using only identical replacement parts. This will ensure that the safety of the power 4) POWER TOOL USE AND CARE tool is maintained.
-
Page 6: Specific Safety Rules
SPECIFIC SAFETY RULES I m p o r t a n t : A f t e r c o m p l e t i n g t h e operation, Wait for coasting tool holder to Never operate the tool in an area with stop rotating completely before putting the flammable solids, liquids, or gases. -
Page 7: Extension Cable
EXTENSION CABLE SET TING THE CHAMFER HEIGHT- DISCONNECT TOOL FROM POWER SOURCE. If an extension cable is required, it must have a sufficient cross-section so as to prevent an Loosen the 2 lock knobs excessive drop in voltage or overheating. An Referring to the fixed dial scale and the dial excessive drop in voltage reduces the output and ring on the support deck, turn the entire... - Page 8 Using the supplied L-type torx wrench, Loosen fixing screw and remove the carbide Impeller Carbide insert Ruler insert. Index the carbide insert to the next sharp edge or insert a new one as needed. Retighten carbide insert with its torx fixing screw.
-
Page 9: Operation
STARTING AND STOPPING TOOL SPEED CONTROL WHEEL Make sure that the power circuit voltage is the There is a progressive variable speed wheel. By same as that shown on the specification plate of turning the wheel to the right,, the speed will the machine and that switch is “OFF”... -
Page 10: Maintenance
spinning clockwise, so always operate in the engage one of the holes in the tool holder to direction from left to right (up mill). immobilize it. When performing inside bevels, work in a Using an appropriate sized wrench loosen • clockwise direction only. - Page 11 FOR 1800W MODELS WARNING: All repairs must be entrusted to an authorized service center. Incorrectly performed To replace repairs could lead to injury or death. First unplug the machine. Carefully remove the 4 screws to separate the rear handle halves and then remove the 4 screws which connect the handle to the motor housing.
- Page 12 WIRING (1100W Model)
