Installation Guide | iC7 Series Pre-charging Unit
Dimensions of the Pre-charging Unit, IEC
2.6
60
(2.36)
15
(0.59)
118
(4.64)
240
(9.45)
33
(1.30)
Ø6
(0.24)
45 60
(1.77) (2.36)

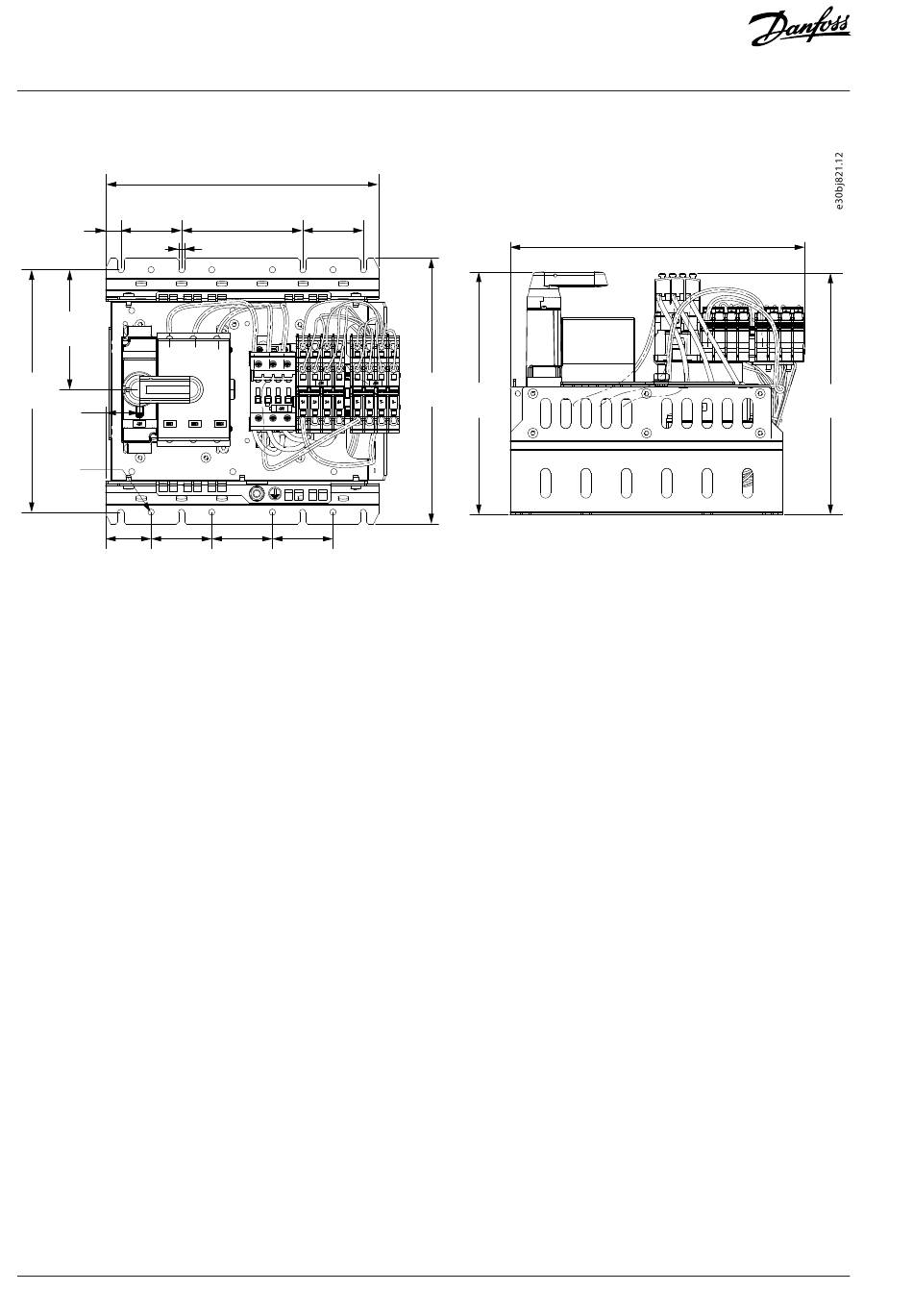

Figure 4: Dimensions of the Pre-charging Unit in mm (in), IEC
4 | Danfoss Drives Oy © 2025.01
270
(10.63)
120 60
(4.72) (2.36)
6 (0.24)
60 60
(2.36) (2.36)
263
240
(10.35)
(9.45)
Mechanical Installation
292
(11.5)
AN412930943622en-000301 / 172F8128C
239
(9.41)
