Installation Guide | iC7 Series Pre-charging Unit
BURN HAZARD
The pre-charging resistor is very hot during the pre-charging sequence and the following cooling down
period.
Do not install the pre-charging unit on a combustible surface.
l
Do not touch when hot.
l
UL 98 Requirements
2.5
Minimum distances are required from the fuse switch of the pre-charging unit to the enclosure walls.
165 mm (6.50 in) from the top and bottom of the fuse switch terminals
l
13 mm (0.52 in) from the left side of the fuse switch
l
These distance requirements are for the size of the enclosure, not for electrical spacings.
≥165 ≥97.5
(6.50) (3.84)
≥13
(0.52)
≥165 ≥81.5
(6.50) (3.21)

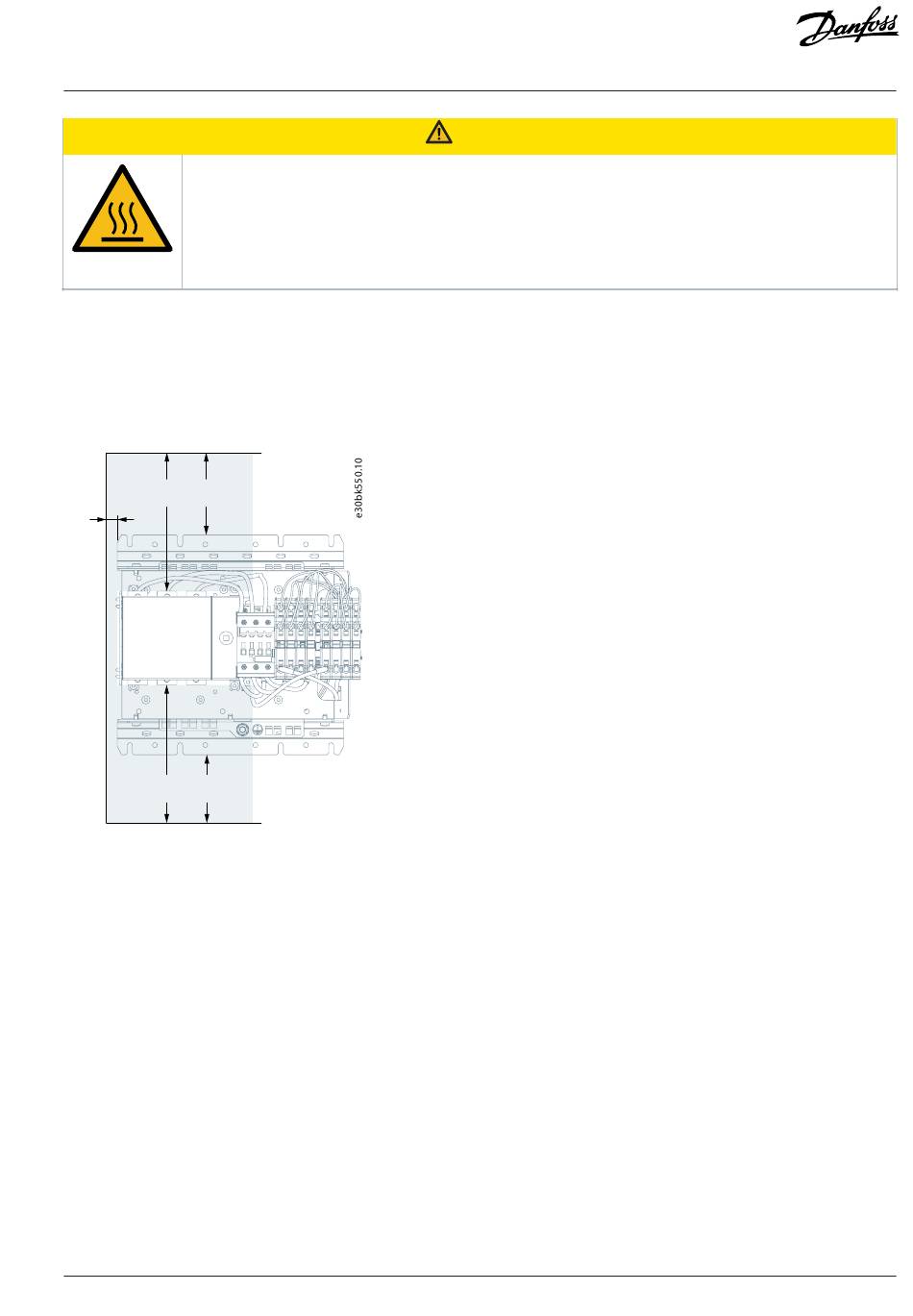

Figure 3: Keep-out-area Around the Pre-charge Unit 10–30 UL Types, UL 98
