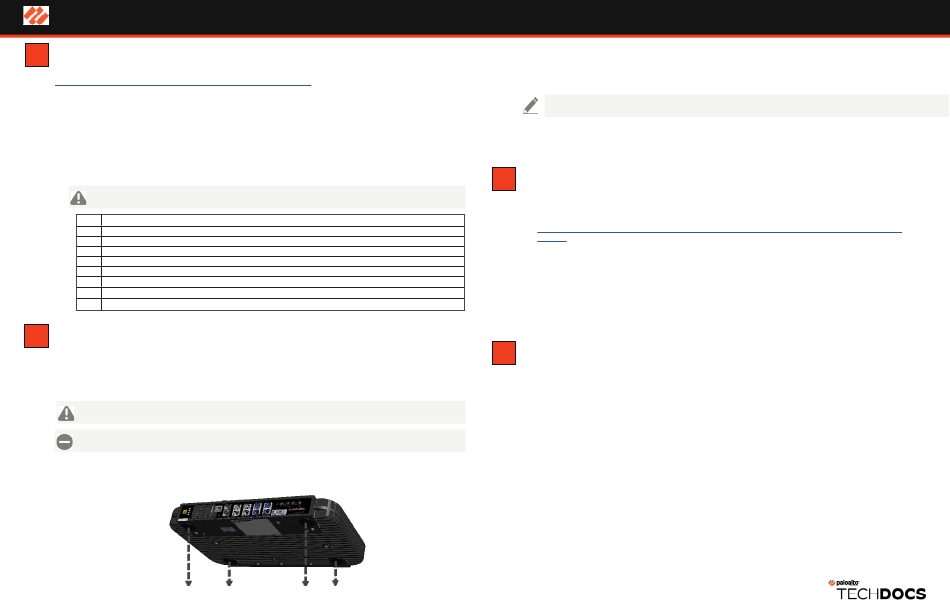

ION 3200H-C5G-WW
1
Before You Begin
Use this document to install and begin setting up your Palo Alto Networks ION 3200H-C5G-WW device. Refer to the product's hardware reference at
https://docs.paloaltonetworks.com/hardware/ion-3200-hardware-reference
procedures for installing the device.
◼
Verify that the installation site has adequate air circulation and DC power.
◼
Have the following equipment ready:
◼
#2 Phillips-head screwdriver for #6-32 screws.
◼
1/8" flat head screwdriver for terminal block screws.
◼
Crimp tool for #10 ground lug and 8 AWG wire.
◼
Wire strippers for 8 AWG and 16 AWG wire.
◼ Unpack the equipment and verify that you received the following items:
Do not open or power the device if a hazardous environment is present.
Qty Description
1 ION 3200H-C5G-WW device.
2 Euroblock connector and terminal block.
1 #10 Ground lug.
1 USB to Micro USB cable.
1 AC/DC Power adapter.
1 Shielded RJ-45 CAT6 Ethernet cable for management (MGT) port access.
1 Sheet, Limited Warranty.
1 China RoHS declaration.
2
Install the Device
There are three ways to install the ION 3200H-C5G-WW device:
◼
On a flat surface
◼
In a 19" equipment rack
The device must be installed in an IP54 rated enclosure if installing in a Class 1 Divison 2/Zone 2 Hazardous location.
After installing the device and connecting all relevant cables, make sure to leave covers and plugs on any unused ports.
Install the Device on a Flat Surface
The ION 3200H-C5G-WW device ship with rubber "feet" attached to the bottom of the device. The device can be set horizontally upon a flat surface. See
Figure 1.
docs.paloaltonetworks.com
for safety information, specifications, and more detailed
Figure 1
Install the Device in a 19" Equipment Rack
The rack kit (PAN-1RU-SMALL-RACK4) is not included with the device and must be purchased separately.
5
Connect the Device to the Controller
1
Connect the ION device port 1 or port 2 to a DHCP-enabled network that has access to the internet, such as an Internet Service Provider (ISP) cable modem.
2
If you do not wish to connect via DHCP-enabled network, access the console and set a static IP on port 1 or port 2.
Refer to Configure Static IP Using a Console at:
https://docs.paloaltonetworks.com/prisma/prisma-sd-wan/prisma-sd-wan-ion-cli-reference/access-the-ion-cli-commands/assign-a-static-ip-address-using-the-
console.html.
Verify Device Connection to the Controller
6
◼
Upon successful connection, the Controller LED on the ION device turns green.
◼
The ION device is now connected to the Controller and displays the device as Online under Unclaimed Devices on the portal.
Page 1 of 2
Quick Start Guide
