  • Page 1 ION 1000 Hardware Reference docs.paloaltonetworks.com...
  • Page 2 Contact Information Corporate Headquarters: Palo Alto Networks 3000 Tannery Way Santa Clara, CA 95054 www.paloaltonetworks.com/company/contact-support About the Documentation • For the most recent version of this guide or for access to related documentation, visit the Technical Documentation portal docs.paloaltonetworks.com. • To search for a specific topic, go to our search page docs.paloaltonetworks.com/search.html. •...

  • Page 3: Table Of Contents

    Table of Contents Before You Begin....................5 Tamper Proof Statement......................6 Third-Party Component Support..................... 7 Product Safety Warnings......................8 ION 1000 Overview..................11 ION 1000............................ 12 ION 1000 Ports......................... 13 ION 1000 Front Panel with LEDs..................14 ION 1000 Specifications......................15 ION 1000 Compliance Statement..................17 ION 1000 Installation Kit Components................
  • Page 4 Table of Contents ION 1000 Hardware Reference 2023 Palo Alto Networks, Inc. ©...

  • Page 5: Before You Begin

    Before You Begin Read the following topics before you install or service a Palo Alto Networks next-generation ® firewall or appliance. The following topics apply to all Palo Alto Networks firewalls and appliances except where noted. • Tamper Proof Statement •...

  • Page 6: Tamper Proof Statement

    Before You Begin Tamper Proof Statement To ensure that products purchased from Palo Alto Networks were not tampered with during shipping, verify the following upon receipt of each product: • The tracking number provided to you electronically when ordering the product matches the tracking number that is physically labeled on the box or crate.

  • Page 7: Third-Party Component Support

    Before You Begin Third-Party Component Support Before you consider installing third-party hardware, read the Palo Alto Networks Third-Party Component Support statement. ION 1000 Hardware Reference 2023 Palo Alto Networks, Inc. ©...

  • Page 8: Product Safety Warnings

    Before You Begin Product Safety Warnings To avoid personal injury or death for yourself and others and to avoid damage to your Palo Alto Networks hardware, be sure you understand and prepare for the following warnings before you install or service the hardware. You will also see warning messages throughout the hardware reference where potential hazards exist.
  • Page 9 Before You Begin • (Devices with serviceable batteries only) Do not replace a battery with an incorrect battery type; doing so can cause the replacement battery to explode. Dispose of used batteries according to local regulations. French Translation: Ne remplacez pas la batterie par une batterie de type non adapté, cette dernière risquerait d’exploser.
  • Page 10 Before You Begin ION 1000 Hardware Reference 2023 Palo Alto Networks, Inc. ©...

  • Page 11: Ion 1000 Overview

    ION 1000 Overview Learn about the Prisma SD-WAN ION 1000 and then plan your deployment. • ION 1000 • ION 1000 Ports • ION 1000 Front Panel with LEDs • ION 1000 Specifications • ION 1000 Compliance Statement • ION 1000 Installation Kit Components •...

  • Page 12: Ion 1000

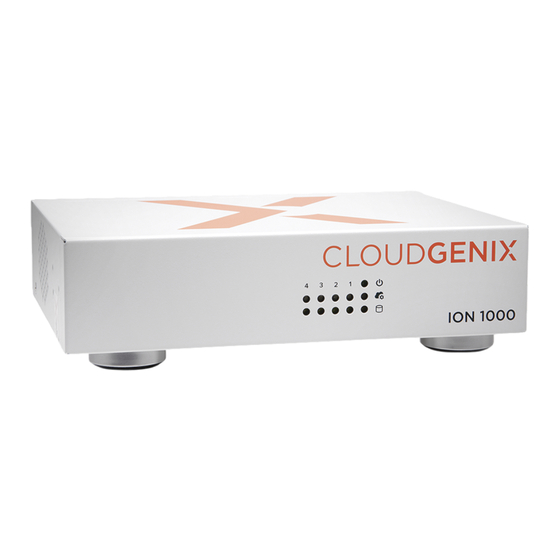

    ION 1000 Overview ION 1000 The Prisma SD-WAN Instant-On Network (ION) 1000, designed for the enterprise branch site only, transforms legacy wide area networks (WANs), enabling you to combine heterogeneous underlying transports into a unified hybrid WAN. It establishes service-level agreements (SLAs) for security, path selection, and application performance.

  • Page 13: Ion 1000 Ports

    ION 1000 Overview ION 1000 Ports The ports on the ION 1000 are used as follows: Ports Description This port is an auxiliary access port intended for offline access, configuration, and troubleshooting of a system during installation. Internet/LAN/WAN Ports Ports 1- 4 are individual ports, used for internet, local area network (LAN), or multi-path label switching (MPLS) connectivity.

  • Page 14: Ion 1000 Front Panel With Leds

    ION 1000 Overview ION 1000 Front Panel with LEDs The Prisma SD-WAN ION 1000 LEDs indicate the following status: Icons Description Displays disk status. Orange light (Blinking)—Disk activity. Displays controller connectivity status. Green light—Connected. Red light—Not Connected. Displays power status. Green light—Powered On.

  • Page 15: Ion 1000 Specifications

    ION 1000 Overview ION 1000 Specifications The ION 1000 device specifications are shown below: Feature Description WAN/LAN/Internet 4 x 10/100/1000 RJ-45 Throughput Throughput (encrypted 1400 byte 250 Mbps packets) Throughput (encrypted 600 byte 100 Mbps packets) Power and Mechanical Type or Watts 1 36W Power Adapter Power Input AC 100~240 V @50~60 Hz...
  • Page 16 ION 1000 Overview Feature Description Local network Access Typically a downstream Layer 2 (L2) or Layer 3 (L3) Ethernet switch and/or a Wireless Access Point (WAP). Internet connectivity This connectivity is used to reach the Prisma SD- WAN controller. It can be in the form of a private connection by an MPLS network through a corporate data center.

  • Page 17: Ion 1000 Compliance Statement

    ION 1000 Overview ION 1000 Compliance Statement The following lists the ION device hardware compliance statements: • VCCI: This section provides the compliance statement for the Voluntary Control Council for Interference by Information Technology Equipment (VCCI), which governs radio frequency emissions in Japan.
  • Page 18 ION 1000 Overview determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •...

  • Page 19: Ion 1000 Installation Kit Components

    ION 1000 Overview ION 1000 Installation Kit Components The ION 1000 installation kit contains the following parts and tools to install the device: • 1x 36W power adapter. • 1x power cord, which varies depending on the country or region. The following optional hardware parts must be ordered separately: •...

  • Page 20: Power On The Ion 1000

    ION 1000 Overview Power on the ION 1000 Connect the power cables to the ION device and plug the device power cable into an AC power outlet. When you switch on the power, the device is powered on and the power indicator turns green.

  • Page 21: Install The Ion 1000

    Install the ION 1000 The ION 1000 can be installed to replace the existing router or deployed with an existing router without modifying any of the network settings at the remote office: • Rack Mount the ION 1000 • Wall Mount the ION 1000 •...

  • Page 22: Rack Mount The Ion 1000

    Install the ION 1000 Rack Mount the ION 1000 Rack mount the ION 1000 on a standard 19 inch rack. The optional rack-mount kit includes two identical L-shaped brackets that you can attach to either side of the ION 1000 using screws. STEP 1 | Gather the L-shaped rack-mounting brackets.
  • Page 23 Install the ION 1000 STEP 5 | Attach the L-shaped rack-mounting brackets to a standard 19 inch rack with the cage screws. STEP 6 | Verify that the device is securely mounted on the rack. ION 1000 Hardware Reference 2023 Palo Alto Networks, Inc. ©...

  • Page 24: Wall Mount The Ion 1000

    Install the ION 1000 Wall Mount the ION 1000 Wall mount the ION 1000 using the optional wall mounting kit that includes ear brackets. STEP 1 | Gather the wall mounting brackets, also referred to as the ear brackets. These brackets enable you to anchor the ION 1000 to the wall. STEP 2 | Place the ION 1000 upside down and locate the four (4) screw holes on each corner of the device.
  • Page 25 Install the ION 1000 STEP 10 | Verify that the ION 1000 is securely mounted on the wall. Do not remove the rubber pads from the Prisma SD-WAN ION 1000 to prevent overheating and damage. ION 1000 Hardware Reference 2023 Palo Alto Networks, Inc. ©...

  • Page 26: Install The Ion 1000 By Replacing An Existing Router

    Install the ION 1000 Install the ION 1000 by Replacing an Existing Router Install the ION 1000 to replace an existing router, directly terminating the MPLS, especially in environments where routers are not already present or required. Configure the ION 1000 as a drop-in replacement for the WAN Router. This mode is most useful for saving cost at new sites that are designed without a traditional router in mind.

  • Page 27: Install The Ion 1000 With An Existing Router

    Install the ION 1000 Install the ION 1000 With an Existing Router Install the Prisma SD-WAN ION 1000 with an existing router. This allows you to insert the ION 1000 without modifying any network settings at the remote location. ION 1000 Hardware Reference 2023 Palo Alto Networks, Inc.

  • Page 28: Install The Ion 1000 In Control Mode

    Install the ION 1000 Install the ION 1000 in Control Mode Install the Prisma SD-WAN ION 1000 in control mode. STEP 1 | Plan and prepare for cabling and connection of the ION 1000 to insert it into your network. Ensure that internet access using a private WAN connection or direct internet broadband is available at your site to allow remote configuration of the ION 1000.
