Summary of Contents for PaloAlto Networks ION 3200

Page 1 ION 3200 Hardware Reference docs.paloaltonetworks.com...
Page 2 Alto Networks. A list of our trademarks can be found at www.paloaltonetworks.com/company/ trademarks.html. All other marks mentioned herein may be trademarks of their respective companies. Last Revised December 12, 2022 ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 3: Table Of Contents
ION 3200 LEDs......................... 20 ION 3200 Installation Kit Components................21 ION 3200 Compliance Statement..................22 Install ION 3200....................27 Install ION 3200 on a Wall....................28 Wall Mount Template......................30 Install ION 3200 in a Rack..................... 31 Power on the ION 3200......................35 Restart the ION 3200....................35...
Page 5: Before You Begin
Before You Begin Learn about the product safety and compliance before you begin: > Tamper Proof Statement > Third Party Component Support > Product Safety Warnings...
Page 6: Tamper Proof Statement
• The integrity of the tamper-proof tape used to seal the box or crate is not compromised. • The integrity of the warranty label on the firewall or appliance is not compromised. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc.
Page 7: Third Party Component Support
Before You Begin Third Party Component Support Before you consider installing third-party hardware, read the Palo Alto Networks Third-Party Component Support statement. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 8: Product Safety Warnings
• Information on compliance to RF exposure guidelines: The Palo Alto Networks ION 1200 series devices are designed to comply with the following national and international standards on human RF exposure, to ensure compliance with these RF exposure standards, ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 9 Any changes or modifications to the product without approval from Palo Alto Networks could void the user’s authority to operate the device. Such modifications include the use of non-approved antennas, accessories, or amplifiers. The radio has been ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 10 The systems are designed to be operated to avoid contact with the antennas by the user. It is recommended to set the system in a location where the antennas can remain at ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc.
Page 11 Users of such applications are encouraged to have particular regard to the suitability of operating under the Australian Radio communications Class License for their radio communications need. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 13: Ion 3200 Overview
ION 3200 Overview Learn about the next generation SASE ION 3200 device. > Overview of ION 3200 > ION 3200 Hardware Specifications > ION 3200 Front Panel > ION 3200 Back Panel > ION 3200 LEDs > ION 3200 Installation Kit Components >...
Page 14: Overview Of Ion 3200

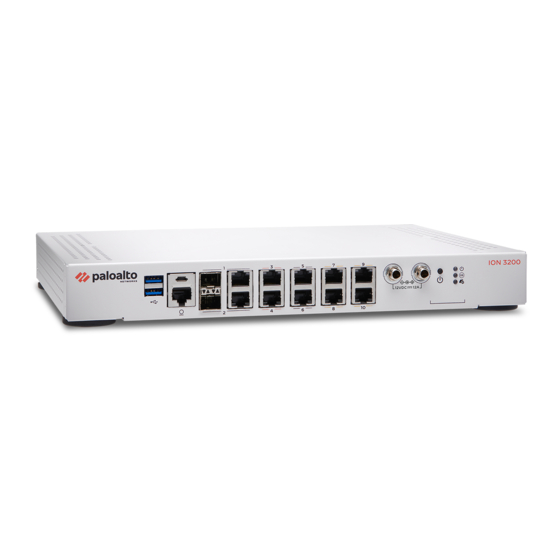

Prisma SD-WAN ION 3200 is a next generation software-defined device that can be deployed in a branch or a data center. With the introduction of ION 3200, accelerate your SASE deployment to a branch or a DC by leveraging WAN connectivity without installing additional hardware to enable rapid deployments.
Page 15: Ion 3200 Hardware Specifications
ION 3200 Overview ION 3200 Hardware Specifications Learn the hardware specifications of the ION 3200 device. ION 3200 Description Enterprise small branch and DC Ports Console Port 1 x RJ-45, UART/USB Type B Console WAN/LAN ports 8x 10/100/1000Mbps RJ-45 + 2x1Gbps(RJ-45/...
Page 16 32ºF - 113ºF (0ºC - 45ºC) Storage temperature -4ºF - 158ºF (-20ºC - 70ºC) Operating humidity (non-condensing) 10-90% Storage humidity (non-condensing) 10-90% Physical Dimensions (DxWxH) 8.88”x13”x1.66”(226mmx330mmx42mm) Weight (lbs) 8.69 Mount options Rack, Desktop ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 17: Ion 3200 Front Panel
ION 3200 Overview ION 3200 Front Panel The following image shows the front panel of the ION 3200 and the table describes the front panel components. Item Component Description USB Port USB 3.0 (reserved for future use). Console Port RJ-45 Serial console port.
Page 18 ION 3200 Overview Item Component Description Power LED Power LED; the LED turns green when powered on. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 19: Ion 3200 Back Panel
ION 3200 Overview ION 3200 Back Panel The following image shows the back panel of the ION 3200 and the table describes the back panel components. Item Description Earth ground connection. Part Number Serial Number QR Code Tamper proof label.
Page 20: Ion 3200 Leds
ION 3200 Overview ION 3200 LEDs Refer to ION 3200 Front Panel for position of the LEDs on the device and its description. LEDs Description Power • Green LED indicates the device is powered on. • Red LED indicates that the device is not getting enough power.
Page 21: Ion 3200 Installation Kit Components
ION 3200 Overview ION 3200 Installation Kit Components The ION 3200 device installation kit contains the following parts and tools to install the device: • 1x ION 3200 device. • 1x 150W power adapter. • 1x power cord, AC, which varies depending on the country or region.
Page 22: Ion 3200 Compliance Statement
ION 3200 Overview ION 3200 Compliance Statement The following compliance statements apply to this ION device: • VCCI—This section provides the compliance statement for the Voluntary Control Council for Interference by Information Technology Equipment (VCCI), which governs radio frequency emissions in Japan.
Page 23 • Korean Communications Commission (KCC) Class A Statement—This equipment is an electromagnetic compatible device for business purposes (Class A). The provider or user should be aware that the equipment is intended for use outside the home. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 24 ION 3200 Overview • Taiwan Declaration of the Presence Condition of the Restricted Substances Marking. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 27: Install Ion 3200
Install ION 3200 This chapter describes how to install the ION 3200 series: > Install ION 3200 on a Wall > Wall Mount Template > Install ION 3200 in a Rack > Power on the ION 3200...
Page 28: Install Ion 3200 On A Wall
Install ION 3200 Install ION 3200 on a Wall Install an ION 3200 on a drywall or plywood wall using the wall-mount kit as described in the following procedure. STEP 1 | Mark four locations on the wall that line up with the wall mount holes on the bottom of the...
Page 29 After you secure the power adapter to the bracket, mount the bracket next to the device using wood or drywall screws as appropriate. The following image shows a completed installation for an ION 3200 with a single power adapter. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc.
Page 30: Wall Mount Template
Wall Mount Template Download and print the following wall mount template to secure the template to the wall where you intend to mount the ION 3200 device and use it to mark the location for each of the four wall-mount screws.
Page 31: Install Ion 3200 In A Rack
1 RU of rack space. The racktray kit enables you to install an ION 3200 device in a 19" rack. The installation hardware consists of a metal base and two rails. To ease installation, first install the device in the racktray and then install the assembled racktray into the equipment rack.
Page 32 Slide the power adapter into the marked position and attach the AC cord, route the AC cord to the right side of the tray sidewall and underneath the front tray “C” channel. ION 3200 device comes with only one power adapter. The second power adapter as shown in the image is an optional power adapter.
Page 33 Align the slotted holes in the mounting tray to the holes in the equipment frame. Secure the mounting tray to the equipment frame on both sides using 3 screws each (not provided). The screws must be compatible with your equipment frame. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 34 Install ION 3200 STEP 11 | Proceed to power on the ION 3200 device. ION 3200 Hardware Reference 2022 Palo Alto Networks, Inc. ©...
Page 35: Power On The Ion 3200
Press the power switch three times (press and hold for one second, and then release) to restart the device. Shut Down the ION 3200 Shut down the ION 3200 in the following ways: • Shut down using the Device Toolkit commands Run the device toolkit command debug shutdown to shut down the device.
Page 37: Troubleshoot The Ion 3200
Troubleshoot the ION 3200 > Troubleshoot Common Issues of ION 3200...
Page 38: Troubleshoot Common Issues Of Ion 3200
Palo Alto Networks Support. Alerts and alarms are reported when there is fault in the system or an issue with the cellular modem. For detailed information on the alerts and alarms on the ION 3200 device, refer to the Prisma SD-WAN Administrator’s Guide.
