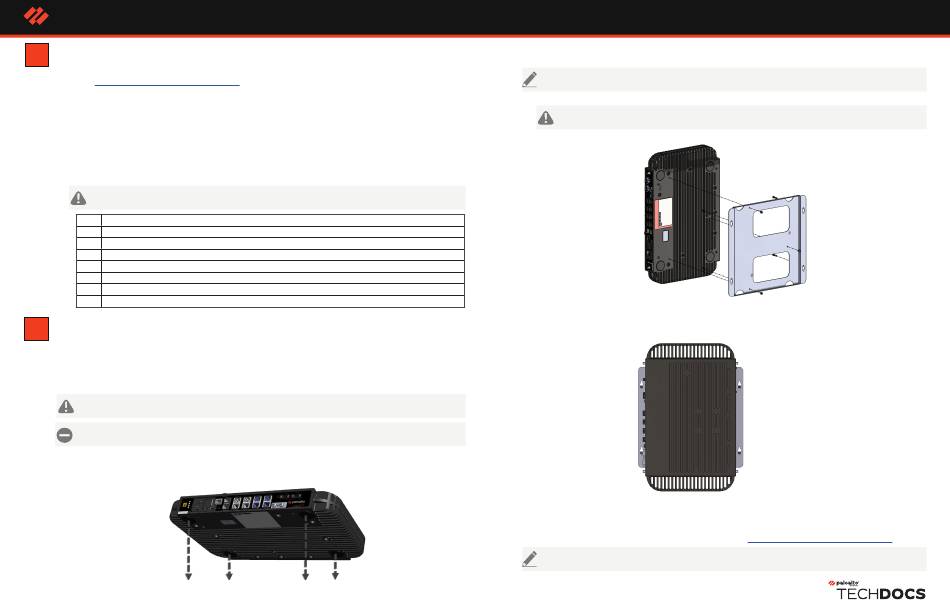

PaloAlto Networks PA-450R Quick Start Manual

PA-450R
1

Before You Begin

Use this document to install and begin setting up your Palo Alto Networks PA-450R device. Refer to the product's hardware
reference at https://docs.paloaltonetworks.com/hardware
for installing the firewall.
◼ Verify that the installation site has adequate air circulation and DC power.
◼ Have the following equipment ready:
◼
#2 Phillips-head screwdriver for #6-32 screws.
◼
1/8" flat head screwdriver for terminal block screws.
◼
Crimp tool for #10 ground lug and 8 AWG wire.
◼
Wire strippers for 8 AWG and 16 AWG wire.
◼
Unpack the equipment and verify that you received the following items:
Do not open or power the device if a hazardous environment is present.
Qty Description
1 PA-450R firewall.
2 Euroblock connector and terminal block.
1 #10 Ground lug.
1 Console cable.
1 Shielded RJ-45 CAT6 Ethernet cable for management (MGT) port access.
1 Sheet, Limited Warranty.
1 China RoHS declaration.
2

Install the Firewall

There are three ways to install the PA-450R firewall:
◼
On a flat surface
◼
On a wall
◼
In a 19" equipment rack
The device must be installed in an IP54 rated enclosure if installing in a Class 1 Divison 2/Zone 2 Hazardous location.
After installing the firewall and connecting all relevant cables, make sure to leave covers and plugs on any unused ports.

Install the Firewall on a Flat Surface

The PA-450R firewall ships with rubber "feet" attached to the bottom of the device. The device can be set horizontally upon a
Figure 1.
flat surface. See
docs.paloaltonetworks.com
for safety information, specifications, and more detailed procedures
Figure 1

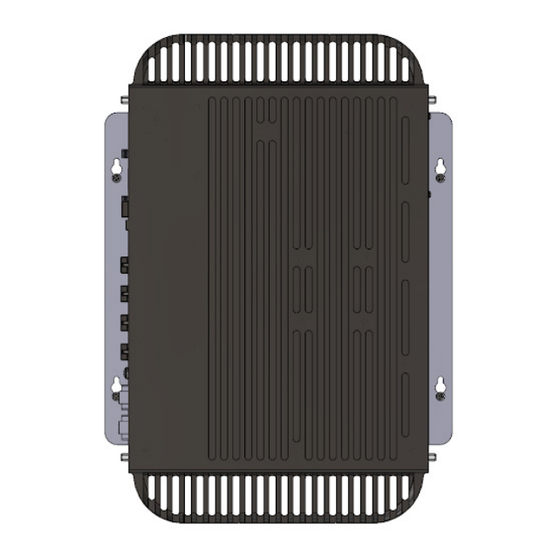

Install the Firewall on a Wall

The wall mount kit (PAN-1RU-RGD-WALLMNT) is not included with the firewall and must be purchased separately.
1
Mark the locations on the wall that line up with the wall mount holes on the bottom of the provided wall mount.
Ensure there are no building services (water, gas, or wiring) behind the wall where you intend to install the firewall.
2
Attach the firewall to the wall mount using three #6-32 screws and a #2 Phillips-head screwdriver. See
3
Attach the wall mount to the wall using four screws that are appropriate for your wall (sheet metal and drywall inserts are included with the
wall mount kit). Ensure that the side fins run vertically, as shown in
Install the Firewall in a 19" Equipment Rack
Refer to the PA-400R Series Next-Gen Firewall Hardware Reference at https://docs.paloaltonetworks.com/hardware.
The rack kit (PAN-1RU-RGD-RACK4) is not included with the firewall and must be purchased separately.
Page 1 of 2
Quick Start Guide
Figure 2.
Figure 2
Figure 3.
Figure 3
