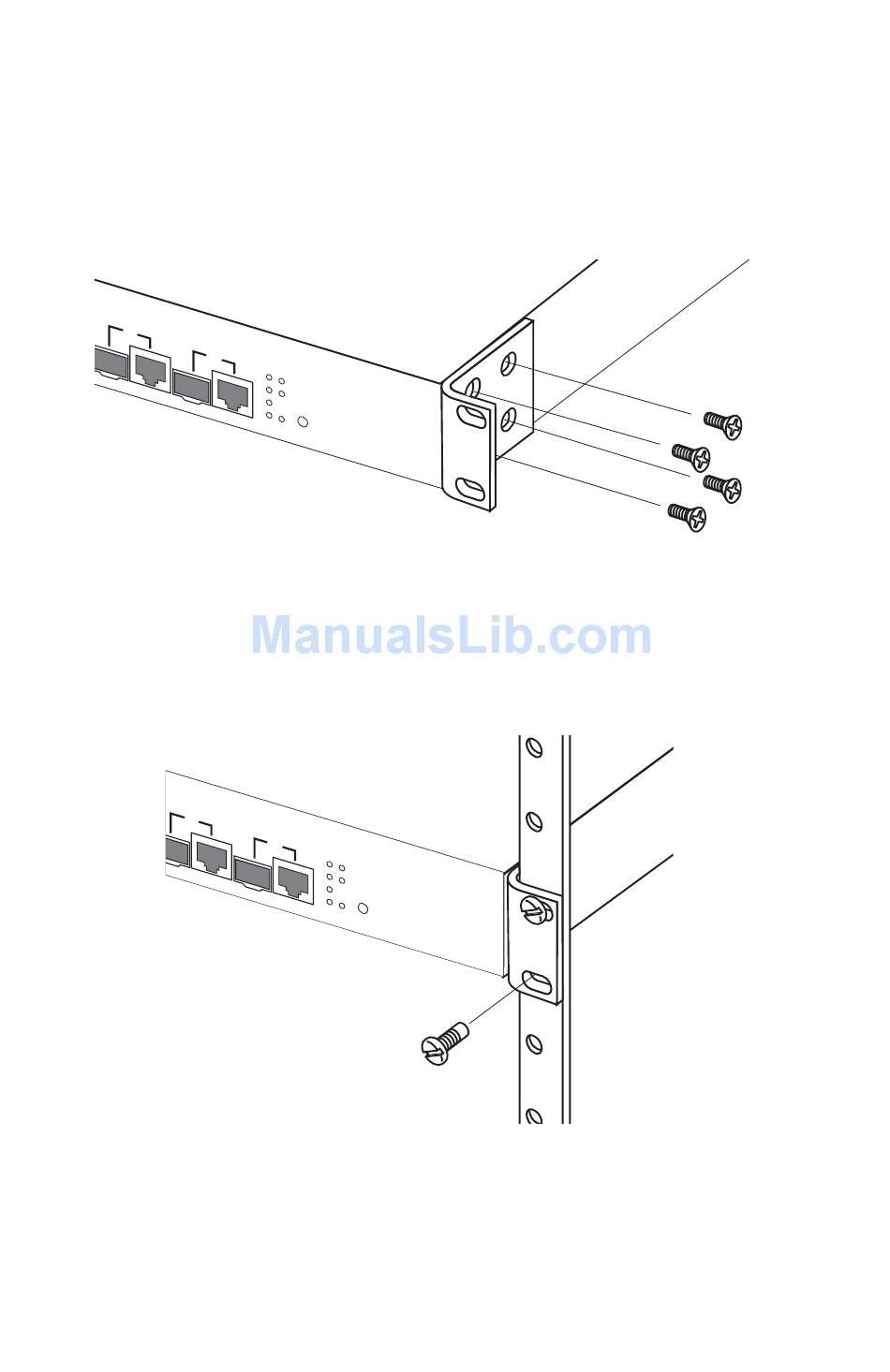

Figure 3-2 Attaching The Brackets; Figure 3-3 Installing The Switch In A Rack - SMC Networks 6824MPE INT - annexe 1 Installation Manual

To rack-mount devices:
1. Attach the brackets to the device using the screws provided in the
Bracket Mounting Kit.
2 5
2 6
2. Mount the device in the rack, using four rack-mounting screws (not
provided).
2 5

Figure 3-3 Installing the Switch in a Rack

3. If installing a single switch only, turn to "Connecting to a Power Source"
at the end of this chapter.
