Optional Stacking Transceiver

The stacking transceiver provides two 1 Gbps ports via USB Type-A
connectors. The upper port is a transmit port and the lower one is a receive
port. The transceiver allows up to eight switches to be linked together using
stacking cables (one stacking cable is included with each optional stacking
transceiver). The push button on the switch's front panel enables one switch
in the stack to be selected as the master. (See "Stack Master Button" on page
1-8.)

Power Supply Receptacle

The standard power receptacle is for the AC power cord. It is located on the
rear panel of the switch.
TX
RX

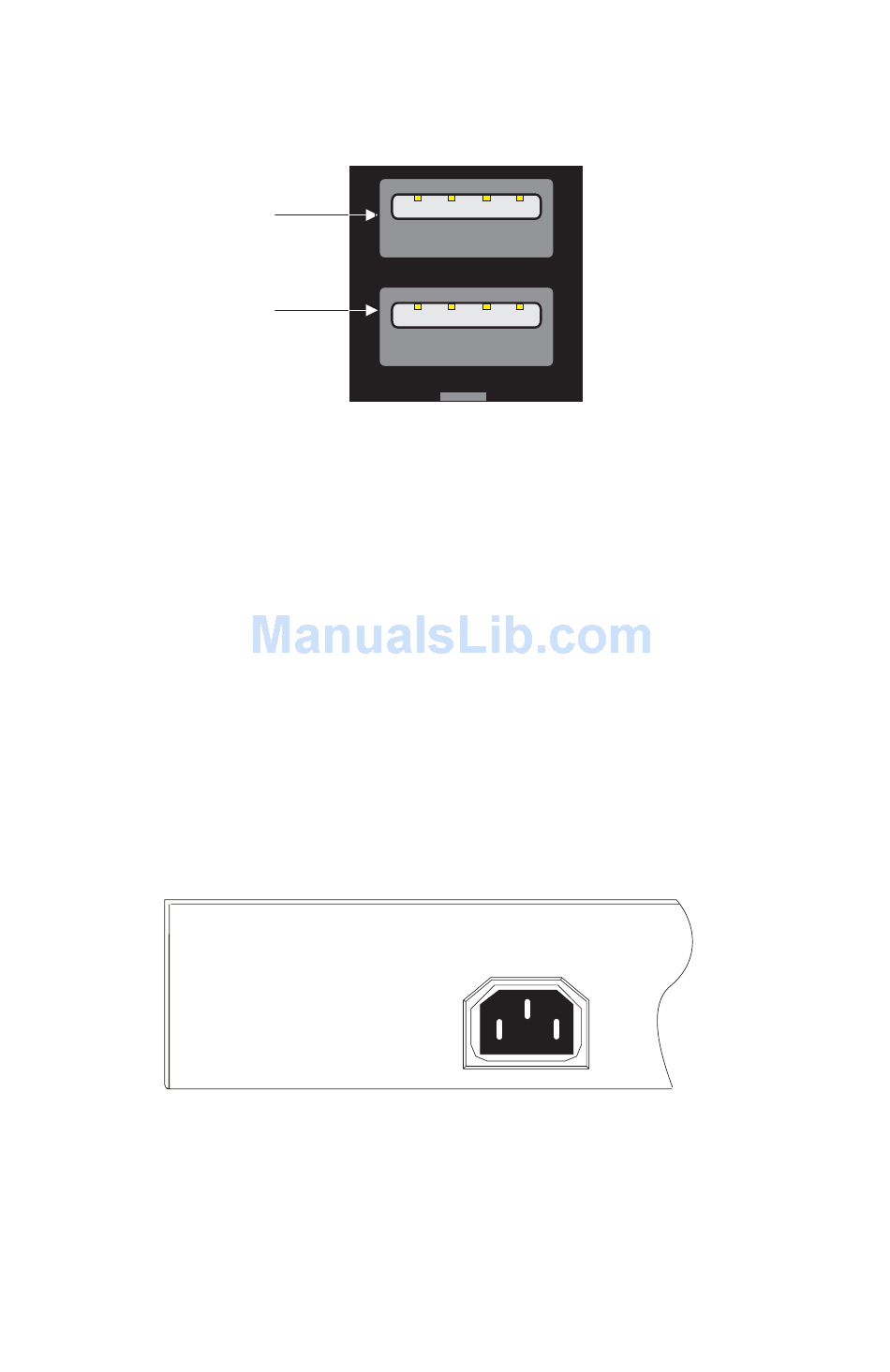

Figure 1-6 Optional Stacking Transceiver

Figure 1-7 Power Supply Receptacle

D
ESCRIPTION OF
100-240V~ 50-60Hz 7.5A
H
ARDWARE
1-9
