LED Condition
PWR On Green
Off
Diag On Green
Flashing Green
On Amber
Flashing Amber
Alternate
Green/Amber
Stacking On Green
Flashing Green
On Amber
Link/Act On Green
PoE On Green

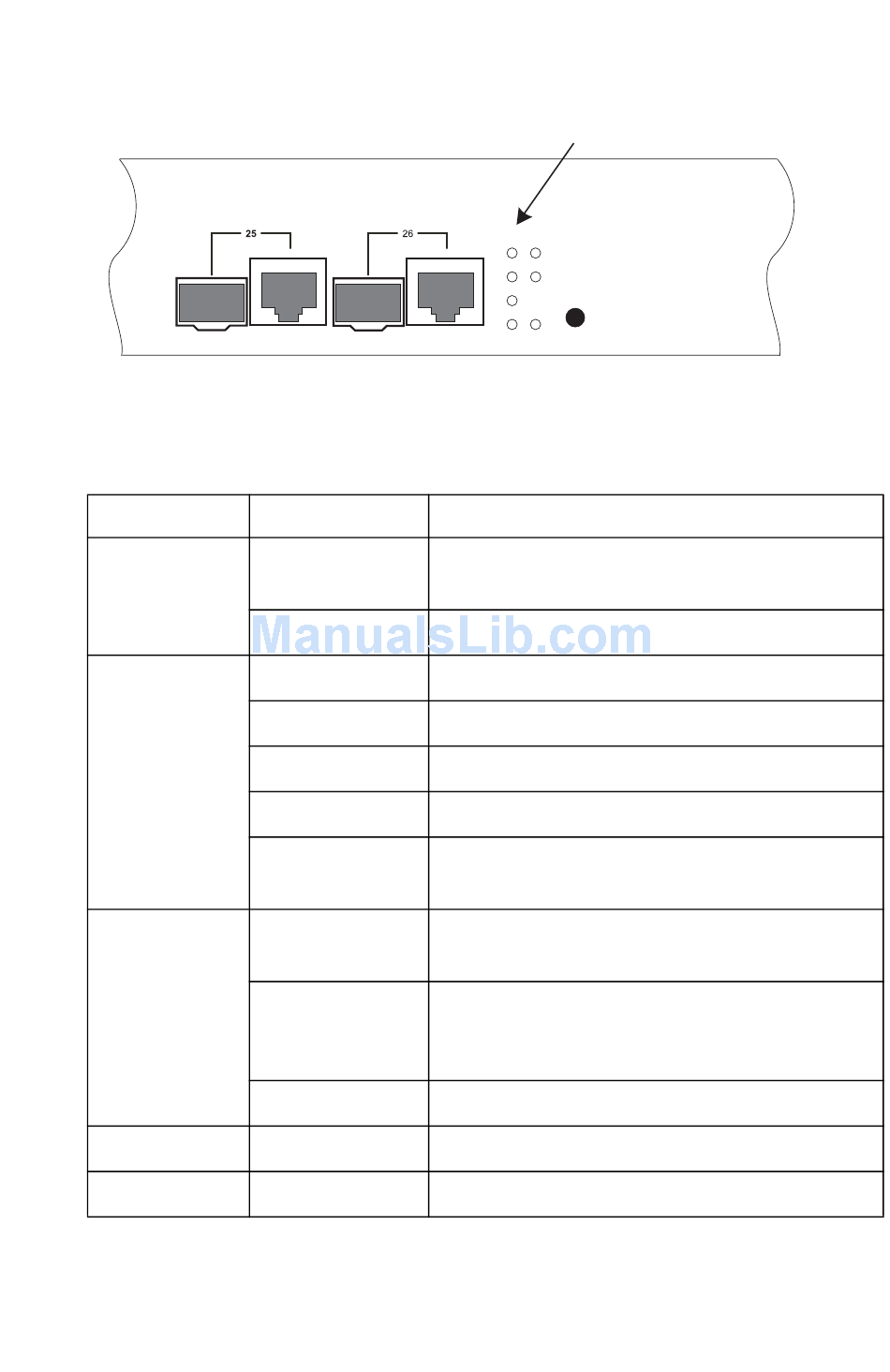

Figure 1-3 System LEDs

Table 1-2 System Status LEDs
Status
Unit's internal power supply is operating
normally.
Unit has no power connected.
System diagnostic test successfully completed.
System diagnostic test is in progress.
System diagnostic test has detected a fault.
Cannot receive packet from stacking port.
Fan has failed or the unit has over-heated.
This switch is acting as the master unit in the
stack.
Initial state of stacking configuration to
determine whether the switch will act as a
master or slave unit.
This switch is acting as a slave unit in the stack.
LED display mode is Link/Act.
LED display mode is PoE.
D
ESCRIPTION OF
System Status LEDs
Link/Act PWR
PoE Diag
25
26 Stacking
Mode
PoE/Link
H
ARDWARE
1-7
