Installing an SFP Transceiver

1 3
1 3
1 4
To install an SFP transceiver, perform the following steps:
1. Consider your network and cabling requirements to select an appropriate
SFP transceiver type.
2. Insert the transceiver with the optical connector facing outward and the
slot connector facing down. Note that SFP transceivers are keyed so they
can only be installed in one orientation.
3. Slide the SFP transceiver into the slot until it clicks into place.
Note: SFP transceivers are hot-swappable. The switch does not need to be
powered off before installing or removing a transceiver. However,
always first disconnect the network cable before removing a
transceiver.
1 4
1 5
1 6
1 7
1 8
1 9
2 0
2 1
2 2
2 3
2 4

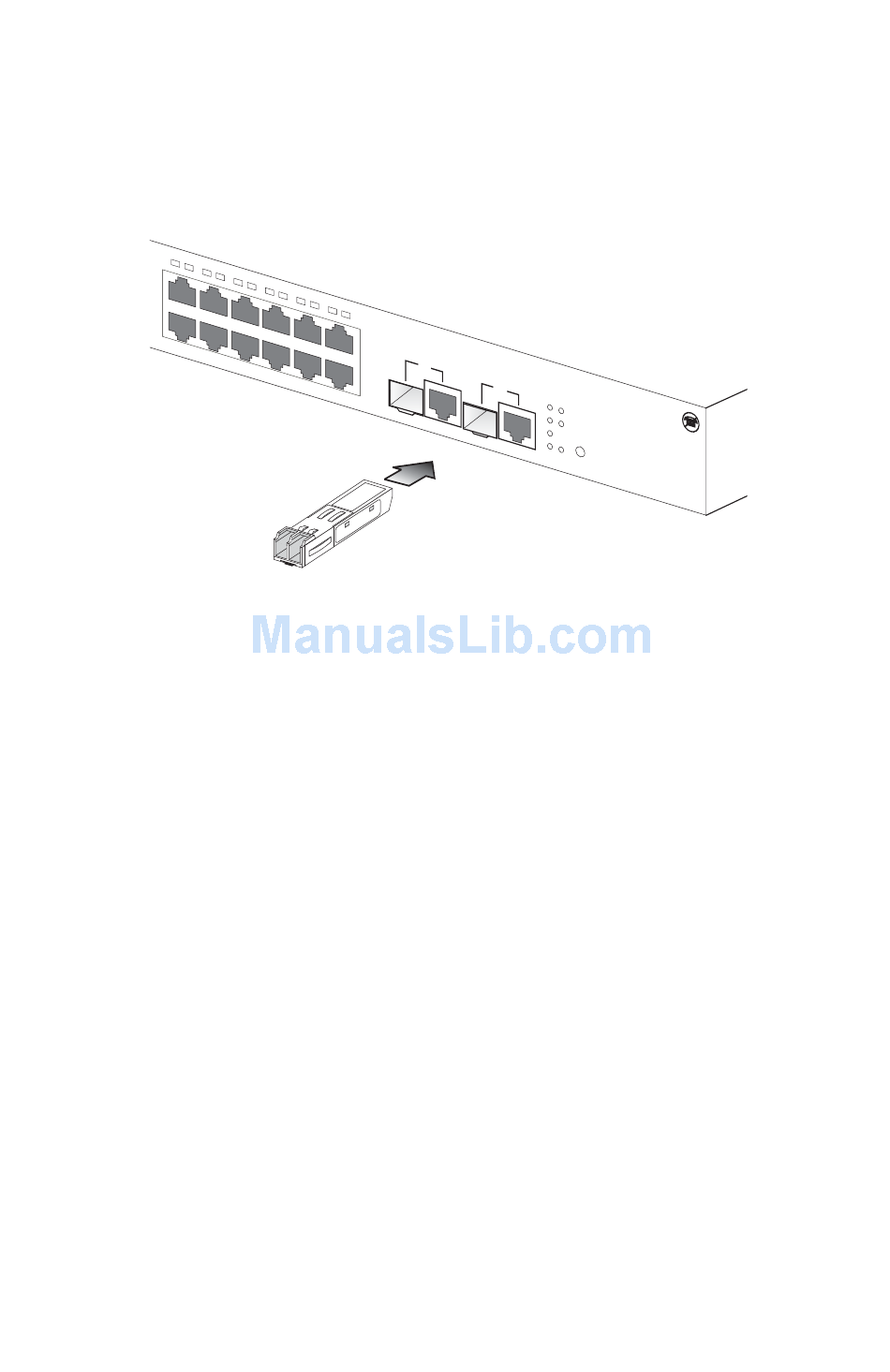

Figure 3-5 Installing an SFP Transceiver

I
NSTALLING AN
2 3
2 5
2 6
2 4
SFP T
L in k /A
c t
P W R
P o E
D ia g
2 5
2 6
S ta c
k in g
M o d
e
P o E
/L in k
RANSCEIVER
3-7
