Port and System Status LEDs

The SMC6824MPE switch base unit also includes a display panel for key
system and port indications that simplify installation and network
troubleshooting. The LEDs, which are located on the front panel for easy
viewing, are shown below and described in the following tables. The port
status LEDs have two display modes; Link and PoE. The Link mode displays
the link status and network activity on each port. The PoE mode displays the
PoE power status on each port. Use the Mode Link/PoE button (see "Mode
PoE/Link Button" on page 1-8) on the front panel to toggle between the
two display modes. The current mode is indicated by the Link/Act and PoE
system LEDs.
LED
1~24
(Link/Activity
Mode)
Port Status LEDs
1
2

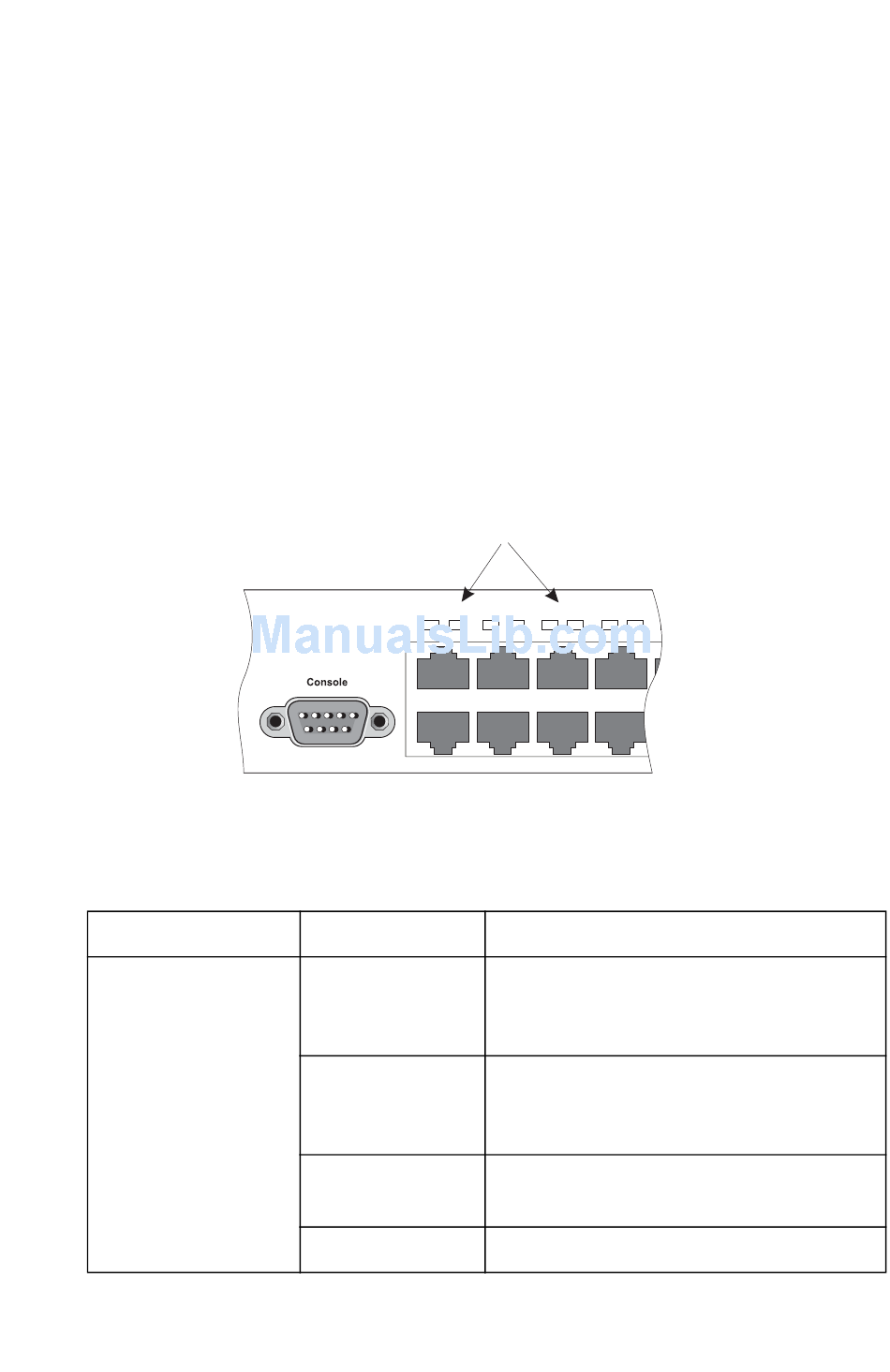

Figure 1-2 Port and System Status LEDs

Table 1-1
Condition
On/Flashing
Amber
On/Flashing
Green
Alternate
Green/Amber
Off
D
ESCRIPTION OF
1 2 3 4 5 6
Port Status LEDs
Status
Port has established a valid 10 Mbps
network connection. Flashing indicates
activity.
Port has established a valid 100 Mbps
network connection. Flashing indicates
activity.
Port has been disabled by the
administrator.
There is no valid link on the port.
