Item: BR1DATTNS
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Copyright © 2018, by Walker Edison Furniture Co., LLC,
Copyright © 2018, by W
Assembly Instructions
alker Edison Furniture Co., LLC, All rights reserved.
Revised 04/2024-V4
All rights reserved.
P.1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison BR1DATTNS
Summary of Contents for Walker Edison BR1DATTNS

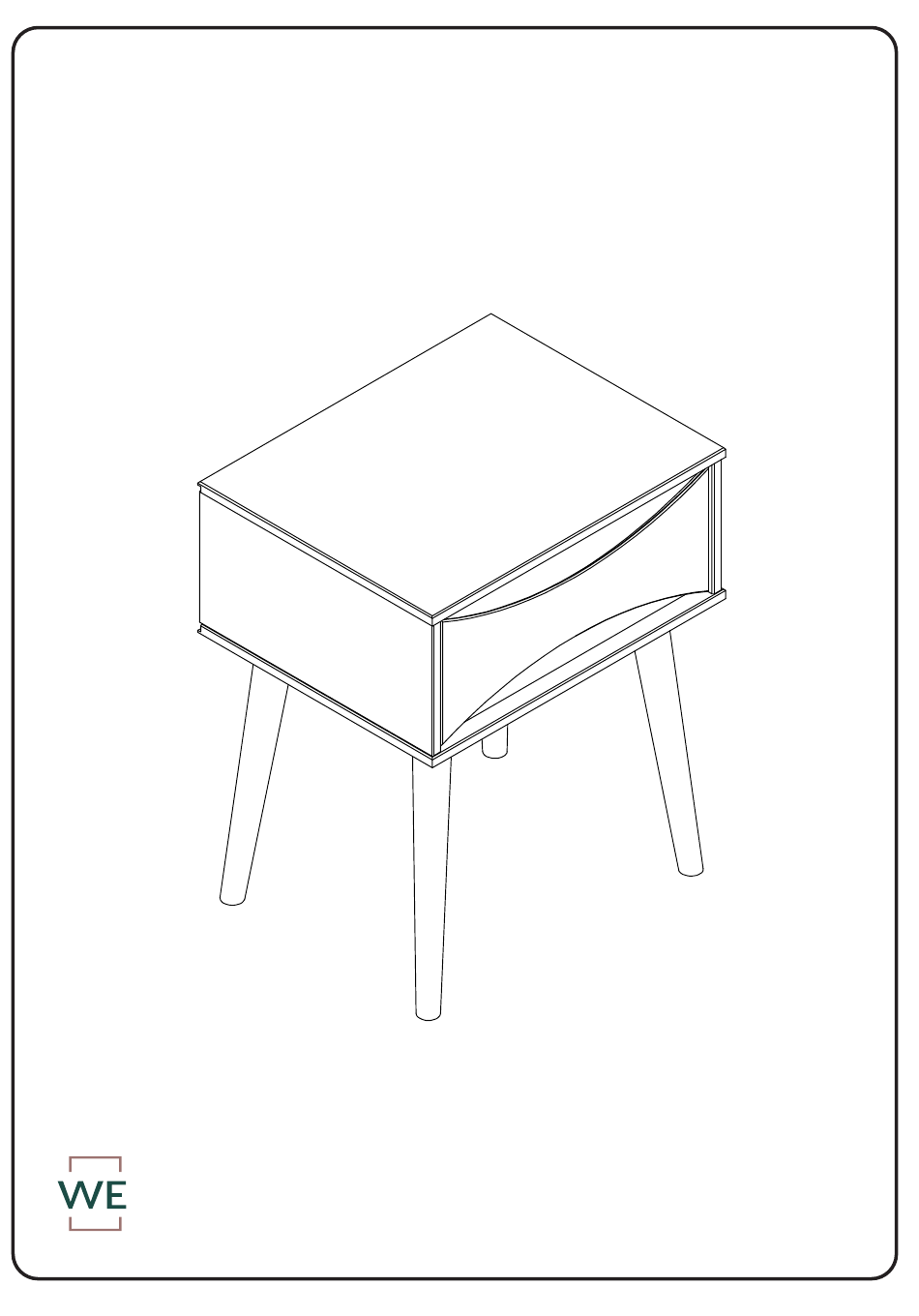

- Page 1 Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 04/2024-V4 Copyright © 2018, by W Copyright © 2018, by Walker Edison Furniture Co., LLC, alker Edison Furniture Co., LLC, All rights reserved. All rights reserved.
- Page 2 A phillips head screwdriver, hammer and tape measure is required for the assembly of this product.
- Page 3 Drawer handle 01 pc 01 pc Left drawer side Drawer front 01 pc 01 pc Right drawer side Drawer bottom 04 pcs 01 pc Foot Drawer back 01 pc 01 pc Base Front foot rail 02 pcs Wood slider 02 pcs Side foot rail 02 pcs Top panel...
-
Page 4: Hardware List
Hardware List Wooden dowel 26 pcs Ø8*30mm Wooden dowel Ø10*20mm 08 pcs Ø4,0*25mm Screw 10 pcs Ø3,5*30mm Screw 04 pcs Ø4,0*40mm Screw 15 pcs Ø7,0*50mm Screw 08 pcs 01 pc Hex Key Ø8*40mm Wooden dowel 02 pcs 10 pcs Cam bolt Cam lock 10 pcs Wall anchor... - Page 5 Step 1 Attention to the dowel size: ø10*20mm Insert wood dowel (B) into part 17. Ø10*20mm Step 2 Insert wood dowel (B) into part 8. Ø10*20mm Step 3 Insert wood dowel (A) into parts 22, 23, 24, 25, 35 and 36. Ø8*30mm...
- Page 6 Step 4 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tigh- ten. Fix the Cam bolt (J) in part 11 and 21 using a Phillips head screwdriver.
- Page 7 Step 6 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees). Do not over-tighten the cam lock.
- Page 8 Step 8 Insert part 26 to part 36, and insert on part 34. Step 9 Attach part 36 to part 34 using screw (E) Ø4*40mm and Phillips head screwdriver.
- Page 9 Step 10 Attach angle bracket (P) to base. Step 11 Attach angle bracket (P) to the assembled part using screw (O) and Phillips head screwdriver. Ø4*16mm...
- Page 10 Step 12 Insert screw (G) into angle bracket (P). using a Hex Key (H). Ø7,0*50mm Step 13 Attach part 26 to part 34 using screw (G) Ø7,0*50mm and Hex Key (H). P.10...
- Page 11 Step 14 Name and address of the supplier and date of production. Insert part 45 between parts 22 and 23. Attach base 34 to part 22 and 23 using screw (E) Ø4*40mm and Phillips head screwdriver. Step 15 Attach part 8 to part 11, with screws (C) and Phillips head screwdriver.
- Page 12 Step 16 Attach parts 24 and 25 to part 11 with Cam lock (K) and Phillips head screwdriver. Step 17 Insert part 13 between parts 24 and 25. Attach part 14 to parts 24 and 25 with screws (D), and Phillips head screwdriver. Ø3,5*30mm P.12...
- Page 13 Step 18 Insert wooden dowel (A) into part 17. Ø8*30mm Step 19 Insert wood dowel (I) on the inside of the drawer, with the drawer inside the unit after having passed the wood dowel that is in the drawer slide. The dowel is not flush with the panel, it is a little inside the drawer to help when you need to...
- Page 14 Step 21 Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors. With drilling machine make one hole in the wall, Insert part (N) in the hole.
- Page 15 Assembly Complete! P.15...
