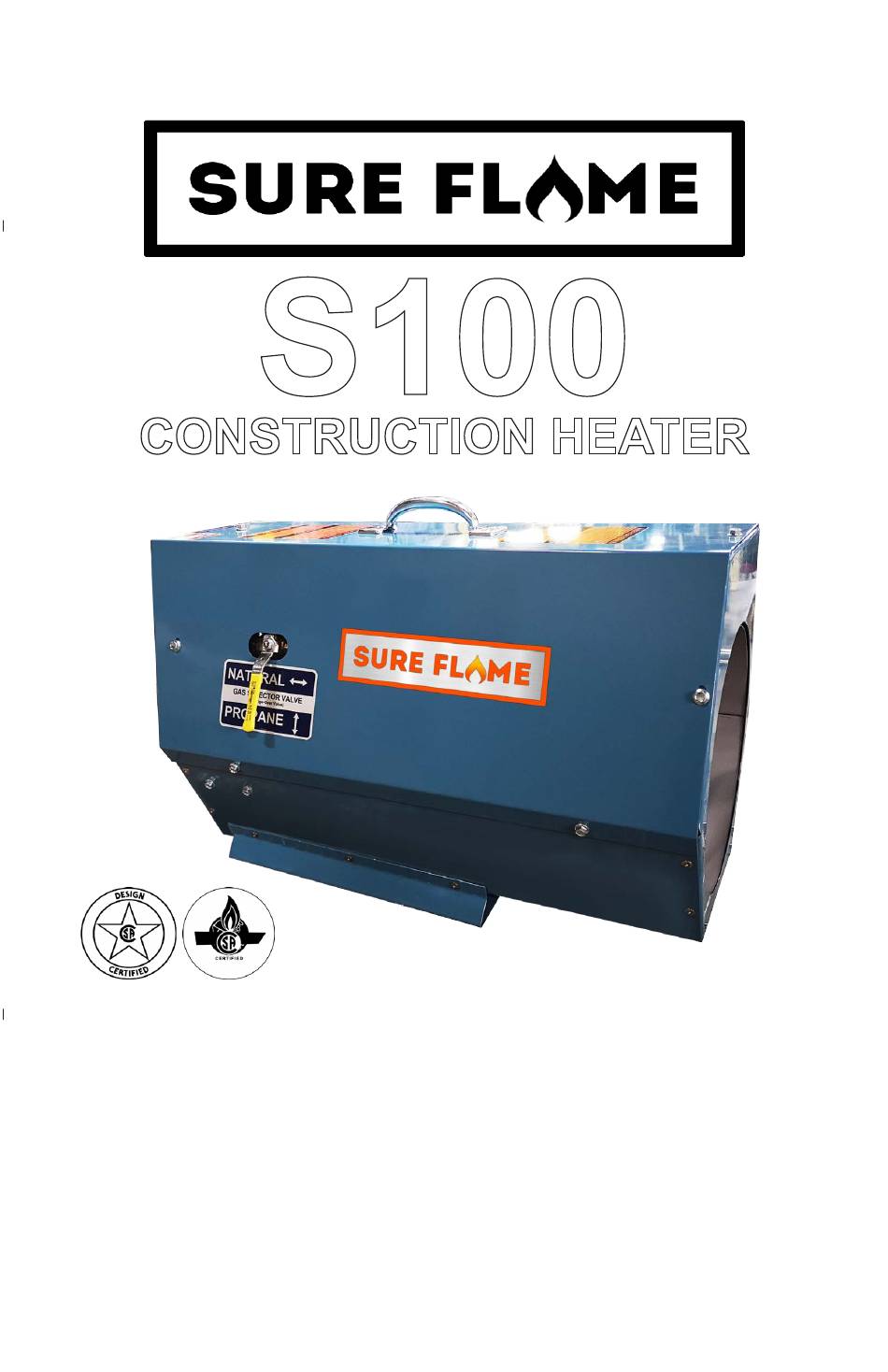

- Page 1 S100 CONSTRUCTION HEATER October 8, 2020, Rev: 2.21 SERVICE AND MAINTENANCE MANUAL No. 974-6891 PLEASE RETAIN FOR FUTURE REFERENCE SURE FLAME PRODUCTS A Division of Haul-All Equipment Ltd. 4115 - 18 Ave. N, Lethbridge, Alberta www.sureflame.ca...
- Page 2 Never use the heater in spaces which do or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals. WARNING Not for home or recreational vehicle use Page 2 S100 Manual 974-6891 Rev. 2.21...
- Page 3 CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU HAVE QUESTIONS ABOUT LOCAL REGULATIONS. Other standards govern the use of fuel gases and heat producing products in specific applications. Your local authority can advise you about these. S100 Manual 974-6891 Rev. 2.21 Page 3...
- Page 4 5.0 ppm (Reg 833) • Ensure that the flow of combustion and ventilation air exchange cannot become obstructed. • As the building ’tightens up’during the construction phases ventilation may need to be increased. Page 4 S100 Manual 974-6891 Rev. 2.21...
-
Page 5: For Your Safety
DO NOT USE THIS HEATER IN A SPACE WHERE GASOLINE OR OTHER LIQUIDS HAVING FLAMMABLE VAPOURS ARE STORED OR USED. Specifications Model No. S100 Construction Heater CSA Certified to CSA 2.14 and ANSI Z83.7 Gas Fire Unvented Construction Heater Gases:... -
Page 6: Installation
INSTALLATION The Sure Flame Model S100 is a direct fired gas heater intended to be used primarily for the temporary heating of buildings under construction, alteration, or repair. Since all the products of combustion are released into the area being heated, it is imperative that adequate ventilation is provided. The flow of supply air and combustion gases must not be obstructed in any way. -
Page 7: Installation For Natural Gas Applications
The installation of this heater to a natural gas supply must conform with all applicable local codes or, in the absence of local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA 54. NATURAL GAS PROPANE S100 Manual 974-6891 Rev. 2.21 Page 7... - Page 8 General criteria for the use of construction heaters may be found in the applicable sections of the Natural Gas and Propane Installation Code CSA-B149.1. INSTALLATION AND MAINTENANCE OF THE HEATER MUST BE ACCOMPLISHED BY A QUALIFIED SERVICE PERSON. Page 8 S100 Manual 974-6891 Rev. 2.21...
-
Page 9: Troubleshooting
IMPROPER SUPPLY OF FRESH AIR - It is normally recommended that the intake air of the heater be taken from outside the enclosed area. This provides a slight pressurization and prevents any problems associated with recirculation. S100 Manual 974-6891 Rev. 2.21 Page 9... - Page 10 This heater is not intended to burn liquid propane. To minimize the damage, shut off the gas supply and let the heater run until all of the liquid in the lines has been burnt. Page 10 S100 Manual 974-6891 Rev. 2.21...
-
Page 11: Preventative Maintenance
PREVENTATIVE MAINTENANCE Sure Flame Construction Heaters are built to withstand the rigours of operating on construction sites, mining applications, and a multitude of other locations where heaters are used. To maintain reliable performance it is necessary to perform regular maintenance. - Page 12 Page 12 S100 Manual 974-6891 Rev. 2.21...
- Page 13 S100-102 Bottom Shell BV2-502 Burner 6894 Triple Electrode S100-109 Base S100-103 Bottom Heat Shield 6901 Shaft Adapter 2419 Fan Blade S100-105 Front End Panel 6895 Gas Valve S100-707 Changeover Valve S100-501 Pipe Weldment S100 Manual 974-6891 Rev. 2.21 Page 13...
- Page 14 Page 14 S100 Manual 974-6891 Rev. 2.21...
- Page 15 S100 Manual 974-6891 Rev. 2.21 Page 15...
