Sure Flame S2200D Operation And Maintenance Manual

Sure Flame S2200D Operation And Maintenance Manual

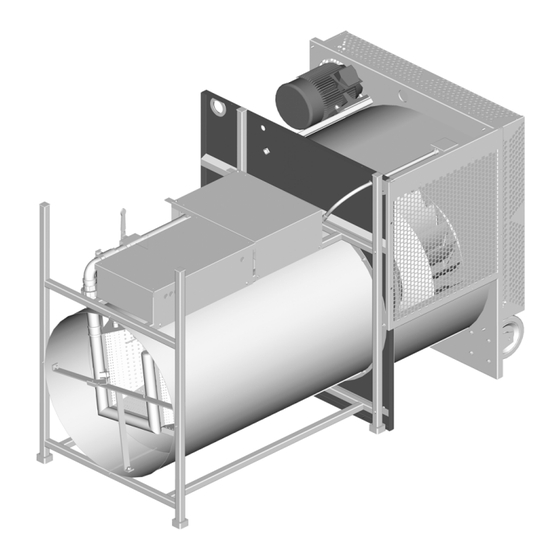

Construction heater 2,250,000 btu/h

Advertisement

Quick Links

Operation and Maintenance Manual
Model No. S2200D
CONSTRUCTION HEATER
2,250,000 Btu/h
WARNING
Read and follow all installation, and operating
instructions before first use of this product.
Retain these instructions for future
reference.
Sure Flame Products
A Divison of Haul-All Equipment
4115 - 18 Avenue North
Lethbridge, Alberta T1H 5G1
www.sureflame.ca
P/N 974-9246
Rev: 4.35 Jan 19, 2022
GENERAL HAZARD WARNING
Failure to comply with the precautions and
instructions provided with this heater, can
result in death, serious bodily injury and
property loss or damage from hazards of
fire, explosion, burn, asphyxiation, carbon
monoxide poisoning, and/or electrical
shock.
Only persons who can understand and
follow the instructions should use or service
this heater.
If you need assistance or heater information
such as an instruction manual, labels, etc.
Contact the manufacturer.
WARNING
Fire, burn, inhalation, and explosion
hazard. Keep solid combustibles, such as
building materials, paper or cardboard,
a safe distance away from the heater as
recommended by the instructions. Never
use the heater in spaces which do or may
contain volatile or airborne combustibles,
or products such as gasoline, solvents,
paint thinner, dust particles or unknown
chemicals.
WARNING
Not for home or recreational vehicle use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the S2200D and is the answer not in the manual?

Questions and answers

Summary of Contents for Sure Flame S2200D

  • Page 1 Operation and Maintenance Manual Model No. S2200D CONSTRUCTION HEATER 2,250,000 Btu/h WARNING Read and follow all installation, and operating instructions before first use of this product. Retain these instructions for future reference. Sure Flame Products A Divison of Haul-All Equipment...
  • Page 2 S2200D Maintenance and Operation Manual Read This Warning First ! The heater is designed and approved for use as a Installation must comply with CAN/CGA-B149.1 Natural Gas and Propane Installation Code. construction heater under CSA 2.14-2000. The pri- mary purpose of construction heaters is to provide...
  • Page 3 S2200D Maintenance and Operation Manual Table of Contents Specifications ........... 4 Additional Design-related......8 Heater Installation........5 Safety Features ........9 Heater Operation ........6 On-site Safety Problems......10 Thermostat Operation......6 Preventative Maintenance ...... 11 Blower Operation ........6 Trouble Shooting ........
  • Page 4 S2200D Maintenance and Operation Manual Specifications Model No. Electrical Rating S2200D Construction Heater Varies - Rating determined as stated on the Certification Specification Label and the Electric Motor on the heater Gas Fired Construction Heaters, CSA 2.14-2000 Supply Pressure to Regulator Fuel Propane &...
  • Page 5 S2200D Maintenance and Operation Manual Heater Installation The Sure Flame Model S2200 is a direct fired 5. Connect the heater to an adequate electric gas heater intended to be used primarily for the power supply as specified on the Heater...
  • Page 6 S2200D Maintenance and Operation Manual Heater Operation Thermostat Operation 1. Set the gas selector valve to the gas being The heater operation is controlled by the used. The conversion shall only be done by remote thermostat. When the heater is op- the owner or lessor of the heater.
  • Page 7 S2200D Maintenance and Operation Manual Installation Using A Propane Supply Tank 1. When installing the heater for use with pro- 5. Turn off the propane supply valve at the tank pane gas, ensure that the gas selector valve is when the heater is not in use.
  • Page 8 Natural Gas will throw In order to maintain the highly efficient combus- significantly more heat than the rated Btu/h. tion of the Sure Flame Heater, the combustion This is definitely a safety hazard. chamber must remain as manufactured. Any change or distortion could alter the fuel/air mix- ture and create unwanted gases.
  • Page 9 S2200D Maintenance and Operation Manual Safety Features Loss Of Power Servicing of Sure Flame Construction Heaters normally involves one of several built-in safety features. The Model S2200 incorporates devic- Total shutdown with manual reset required. es to detect the following: Any one of the safety devices will create a loss of power situation.
  • Page 10 S2200D Maintenance and Operation Manual On-site Safety Problems Shorting Out Of Defective Compo- Supplying Liquid Propane To Heater nents This problem has occurred from time to time. To minimize the damage, shut off the gas supply and This is a very common problem which saves...
  • Page 11 S2200D Maintenance and Operation Manual Preventative Maintenance Burner Sure Flame Construction Heaters are built to withstand the rigours of operating on construc- tion sites, for mining applications, and a multi- Flame Rod and Insulator - Clean with soap tude of other locations where heaters are used.
  • Page 12 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 13 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 14 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 15 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 16 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 17 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 18 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 19 S2200D Maintenance and Operation Manual Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 20 S2200D Maintenance and Operation Manual Wiring Diagrams (1 Phase) END BRACKET 10 Ga 10 Ga 10Ga 10 Ga 10Ga 10 Ga CIRUCIT BREAKER END PLATE END BRACKET Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 21 S2200D Maintenance and Operation Manual Ladder Diagram (1 Phase) Motor Contactor Motor Contactor Contact Contact Stepdown Transformer 110 V Braker Breaker Overload Contact (a) (NC) Motor contactor Coil Blower Light Surge Suppressor Start Light Stage II Relay Coil LFL Relay Coil...
  • Page 22 S2200D Maintenance and Operation Manual Wiring Diagrams (3 Phase) END BRACKET 10 Ga 10 Ga 10 Ga 10 Ga CIRUCIT BREAKER END PLATE END BRACKET Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 23 S2200D Maintenance and Operation Manual Ladder Diagram (3 Phase) S2200D Ladder Diagram Overload Motor Contactor Relay (A) Contacts Stepdown Transformer 110 V Braker Breaker Overload Contact (a) (NC) Motor contactor Coil Blower Light Surge Suppressor Start Light Stage II Relay Coil...
  • Page 24 S2200D Maintenance and Operation Manual Two-Stage Thermostat Wiring Diagram Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 25 S2200D Maintenance and Operation Manual Connection Diagram Gas Valve Connection Diagram High Stage II Temperature Limit Switches PLUG MALE FACE GAS VALVE PINS VIEW STAGE II 1-GRN 3-BLU 2-BRN PLUG PLUG ORG 16 Ga. Sure Flame Products P/N 974-9246 Rev 4.35 Jan 19, 2022...
  • Page 26 S2200D Maintenance and Operation Manual Heater Parts Diagram Heater Parts List The following Labels And Decal are not shown: Ref # Part # Description Ref # Part # Description 2849 Natural Gas/Propane Label 8517 Electrical Warning Label 6032 Inlet Screen...
  • Page 27 S2200D Maintenance and Operation Manual Blower Parts Diagram Blower Parts List Ref # Part # Description Ref # Part # Description 2408 Impeller Bushing FN12-148 Limit Switch Plate 6162 Motor 5hp 3Ph 208/230/460V 1 FN12-711 Heater Slinger 6422 Motor 5hp 1Ph 208/230V...
  • Page 28 S2200D Maintenance and Operation Manual Mounting Rail Parts Diagram DISTRIBUTION ELEMENTS Control Box Mounting Rail Parts List Ref # Part # Description Ref # Part # Description 8624 Terminal Block End Plate 8693 Marker 8629 3 Pole AC Operated Contactor 1...
  • Page 29 S2200D Maintenance and Operation Manual Control Box Parts Diagram Control Box Parts List Ref # Part # Description Ref # Part # Description S2200-207 Control Box Lid WRS-151 Stage II Recepracle Assy S2200-511 Control Box Weldment WRS-152 Stage I Cord Assembly...
  • Page 30 S2200D Maintenance and Operation Manual Control Box Panel Parts Diagram Control Box Panel Parts List Ref # Part # Description Ref # Part # Description 9264 Omron Relay 120V 8677 Flame Controller 9826 Omron Relay Mounting Clip S2200-272 Ignition Transformer...
  • Page 31 S2200D Maintenance and Operation Manual Valve Train Parts Diagram Valve Train Parts List Ref # Part # Description Ref # Part # Description 8685 Gas Regulator S2200-132 Test Nipple 8648 2 Stage Valve 2539 1.5” Ball Valve S2200-712 Changeover Valve...
