weintek cMT3162X iV Series Installation Instruction

cMT3162X (iV) series

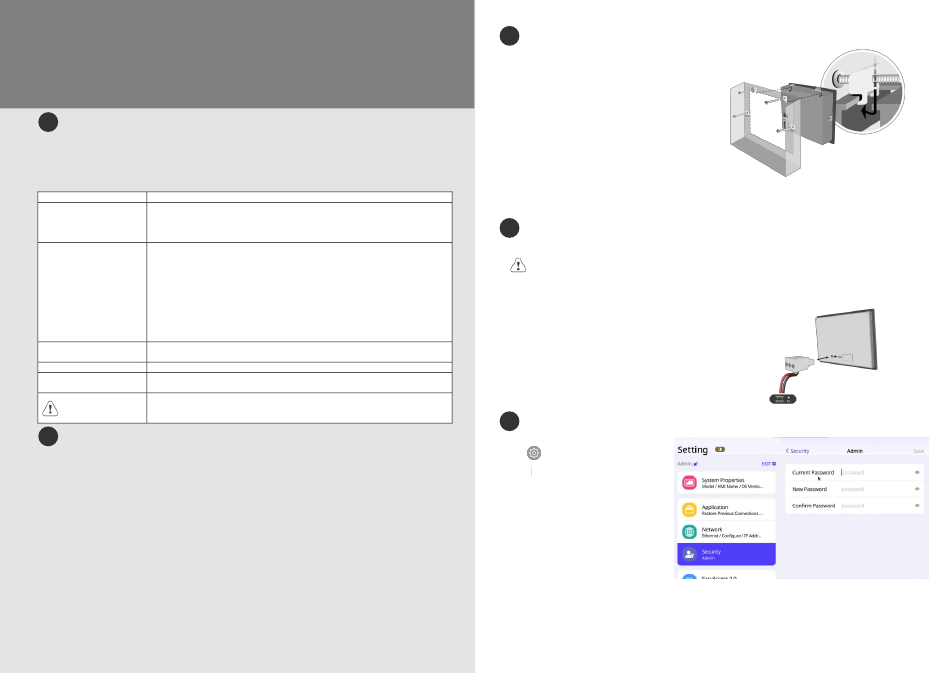

1 Installation and Startup Guide
This document covers the installation of cMT3162X (iV) Series HMI, for the detailed specifications
and operation, please refer to Datasheet, Brochure and User Manual. Please read all warnings,
precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (indoor use only).
The HMI product has been tested to conform to European CE
requirements. This means that the circuitry is designed to resist the effects
Electrical Environment
of electrical noise. This does not guarantee noise immunity in severe
cases. Proper wire routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the
operating limits are followed. Avoid installing units in environments
where severe mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on
the flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Operating Altitude
Below 3,000 m (9842.52 ft.), atmospheric pressure is 70.1 kPa.
(Atmospheric Pressure)
IP Rating IP 66
Clean the device using dry cloths. Do not use liquid or spray detergents for
Cleaning Considerations
cleaning.
Protection impairment if used in a manner not specified by the
manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
2
Unpacking the Unit
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1 (3) Power Connector *1
(4) Brackets & Screws *1 pack
Installation Instruction
Installation Instructions
3
Use a control box that provides enough stiffness.
Cutout Dimension: 384 mm x 247 mm. Secure the
operator panel in position, using all the fastening holes
and the provided brackets and screws. Screw Torque:
2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and
preventing the panel from being deformed.)
Plan for adequate space around the unit and inside
the enclosure, for ventilation and cables. Consider the
heat from other devices inside the enclosure. The
ambient temperature around the unit must be 0 ~ 50°C
Minimum required clearances (along the overlay): Top / Bottom / Sides 15 mm
Maximum panel thickness: 4 mm
4 Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
NOTE: Connect positive DC line to the '+' terminal and
the DC ground to the '-' terminal.
5 System Settings
After powering on the HMI, click the
icon in the upper right corner of the
screen to open the system settings
menu.
Password Setting
In the Security tab, modify the Admin
password. The system will prompt for
the Admin password (default is 111111).
After entering the current password,
new password, and confirming the new
password, save the changes.
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
