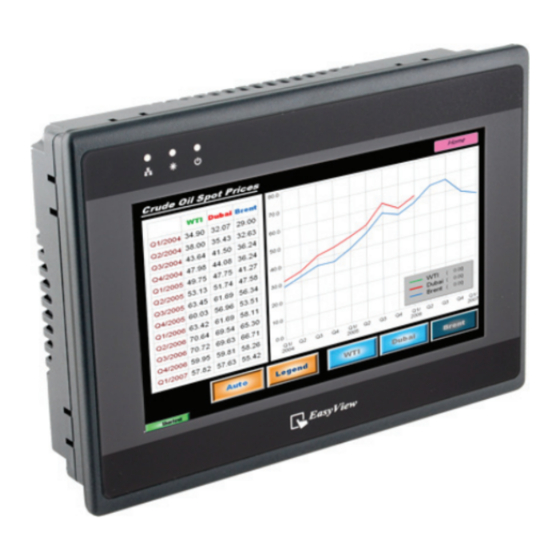

1.0 Installation and Startup Guide
Install Environment
Where
The MT6070iH3 Series is designed for industrial. The temperature range of operating
Used
is from 32 to 122 °F (0 to 50 °C), as majority of industrial environments. It may not be
suitable for using in certain outdoor applications. Please consult the factory for
advised usage in outdoor applications.
NEMA
The MT6070iH3 Series front bezel is NEMA 4 rated. When installed properly in a
Rating
NEMA 4 panel, the NEMA 4 rating of the panel will not be compromised. This means
that fluids will not enter the panel during wash downs.
Electrical
The MT6070iH3 Series has been tested to conform to European CE requirements. This
Environment
means that the circuitry is designed to resist the effects of electrical noise. This does
not guarantee noise immunity in severe cases. Proper wire routing and grounding
will insure proper operation.
Mechanical
Avoid installing units in environments where severe mechanical vibration or shocks
Environment
are present.
2.0 Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to ensure that AC power wiring, PLC
output modules, contactors, starters and relays, and any other source of electrical interference are located
away from the back of the unit.
Particular note should be taken to the position of variable speed drives and switching power supplies.
Their input and load cables should be screened to a central star earth point.
MT-6070iH3 Series
MT-6070iH3
Installation Instruction
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-6070iH3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for weintek MT-6070iH3 Series

Summary of Contents for weintek MT-6070iH3 Series

  • Page 1 MT-6070iH3 Series MT-6070iH3 Installation Instruction 1.0 Installation and Startup Guide Install Environment Where The MT6070iH3 Series is designed for industrial. The temperature range of operating Used is from 32 to 122 °F (0 to 50 °C), as majority of industrial environments. It may not be suitable for using in certain outdoor applications.

  • Page 2: Environmental Considerations

    2.1.2 Making a NEMA-4 Mounting Panel The unit can be mounted into panels with a depth of 4”(105mm). It is recommended that Details the unit be mounted on the front panel of a steel enclosure, through an appropriate opening. Allow a clearance of 1”(25mm) around the sides of the unit for mounting hardware. Allow clearance for cable connections to the back of the unit.

  • Page 3: Grounding Requirements

    Caution A Hard-wired EMERGENCY STOP should be fitted in any system using Emergency an MT6070iH3 to comply with ICS Safety Recommendations. Stop Caution Do not power the MT6070IH3 and inductive DC loads, or input Supply Voltage circuitry to the controller, with the same power supply. Note: The 24 VDC Condition output from some controllers may not have enough current to power the MT6070iH3.

  • Page 4: Programming Considerations

    exists and take appropriate precautions. Although the specific design steps depend on your particular application, the following precautions generally apply to installation of solid-state programmable control devices. In addition, these precautions conform to the guidelines for installation of Controllers as recommended in the NEMA ICS 3-304 Control Standards.

  • Page 5: Usb Client Port

    1. Using USB cable mini side plug to HMI and another side plug into PC. The PC will display “Found New Hardware Wizard” dialog. Select “Install from a list or specific location (Advanced)”. 2. Check “Include this location in the search”, and assign the path to install Weintek HMI i Series driver from C:\EB8000\usbdriver.

  • Page 6: Dip Switch

    2.3.5 Connecter Wire MT8-COM1/RZC002320 MT8-COM3/RZC004850 2.3.6 Dip Switch SW1 SW2 SW3 SW4 Mode OFF OFF ON Touch Screen Calibrate mode OFF ON Hide HMI System Setting Bar OFF ON OFF OFF ON ON Boot Loader mode OFF OFF OFF ON Default position OFF OFF OFF OFF Not Supported SW4 is used for adjusting LCD parameters, please keep it in the manufacturer default position, otherwise incorrect screen display may be occurred.

  • Page 7: Specifications

    2.4 Requirements EU directives that apply to the MT6070iH3 Series: EMC Directive (2004/108/EC) electromagnetic emissions and immunity. UL508（ISBN 0-7629-0404-6）machine safety for use in Pollution Degree 2 Environment. MT6070iH3 products will be CE-marked to indicate compliance with the EMC Directive. The MT6070iH3 Series has been designed to operate satisfactorily in electromagnetic noise (immunity) and without emitting high levels of electrical noise into the environment (emission).
  • Page 8 Weintek products include the isolated power supply are covered by a limited liability warranty from defects in material and workmanship. This warranty does not apply: (a) if, in the judgment of Weintek, the product fails due to damage from shipment, handling, storage, accident (natural and man-mad) ;...
