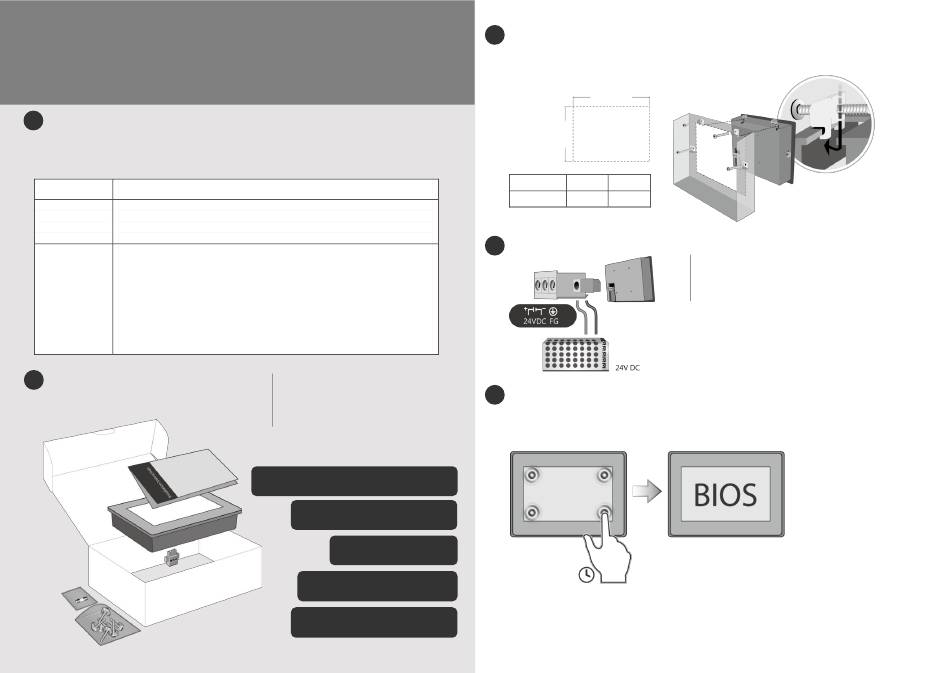

weintek cMT-iPC15 Series Installation Instruction

cMT-iPC15 series
1
Installation and Startup Guide
This document covers the installation of cMT-iPC15, for the detailed specifications and operation, please
refer to Brochure and User Manual.
Install Environment:
NEMA Rating The cMT-iPC15 Series HMI
The cMT-iPC15 Series has been tested to conform to European CE
Electrical requirements. This means that the circuitry is designed to resist the effects of
Environment electrical noise. This does not guarantee noise immunity in severe cases. Proper
wire routing and grounding will insure proper operation.
(1) Make sure that the units are installed correctly and that the operating limits
are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
2 Unpacking the Unit
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(5)
(4)
Installation Instruction
is NEMA 4 rated.
NOTE:
Place the unit on a stable surface during
installation. Dropping it or letting it fall may
cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
(5) Fuse 3.15A/250V 5*20mm *1
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws. Screw Torque: 2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and preventing the panel from
being deformed.)
(A)
Cutout
(B)
Type A(mm) B(mm)
cMT-iPC15 352 279
4
Power Connections
5 BIOS Settings
Ways to enter BIOS:
Way 1: Connect a USB keyboard and press F2 Key at startup.
Way 2: Press and hold one of the four corners of the screen at startup.
NOTE:
Connect positive DC line to the '+' terminal
1.
and the DC ground to the '-' terminal.
