weintek MT8092XE Series Installation Instruction

MT8090/8091/8092XE series
Installation and Startup Guide
1
This document covers the installation of MT8090/8091/8092XE Series HMI, for the detailed
specifications and operation, please refer to Brochure and EasyBuilder Pro User Manual.
Install Environment:
NEMA Rating MT8090/8091/8092XE
MT8090/8091/8092XE
Electrical requirements. This means that the circuitry is designed to resist the effects of
Environment electrical noise. This does not guarantee noise immunity in severe cases. Proper
wire routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
2
Unpacking the Unit
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(5)
(4)
Installation Instruction
Series HMI is NEMA 4 rated.
Series has been tested to conform to European CE
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1

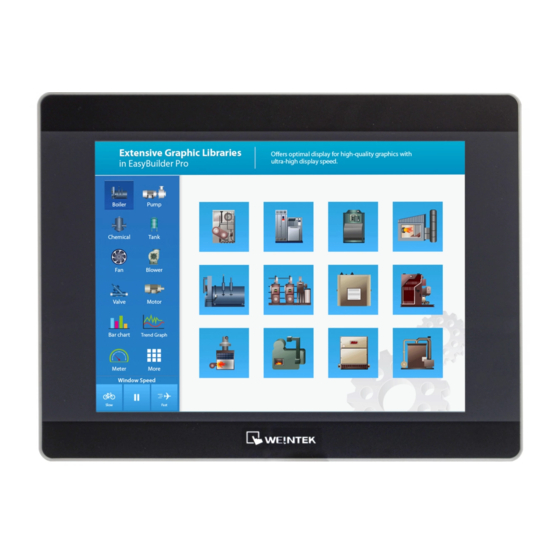

(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
(5) Fuse 1.25A/250V 5*20mm *1
The packing box can be transformed into an HMI stand. Please follow the steps to make the stand.
1. Remove the center of the box cover along the perforated line.
2. Pull the two inner flaps.
3. Press down along the perforated line inside the box.
4. Complete the stand as shown.
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws: (A)
Cutout
(B)
Type A(mm) B(mm)
MT8090XE 248.5 191
MT8091XE 248.5 191
MT8092XE 248.5 191
4 Power Connections
NOTE:
Connect positive DC line to the '+' terminal and
1.
the DC ground to the '-' terminal.
2. Please do not connect HMI with PLC and PC
simultaneously to prevent potential difference
from destroying USB ports of HMI and PC.
5
System Settings
MT8092XE:
When HMI is powered up and displays image, press the
system setting button in the lower-right corner of the screen.
(Default System Password: 111111)
Go to the Network tab, you may choose to auto get DHCP IP,
or designate your own IP.
MT8092XE has two10/100/1000 Base-T Ethernet ports.
The default IP addresses are:
LAN 1: DHCP
LAN 2: 192.168.100.1
