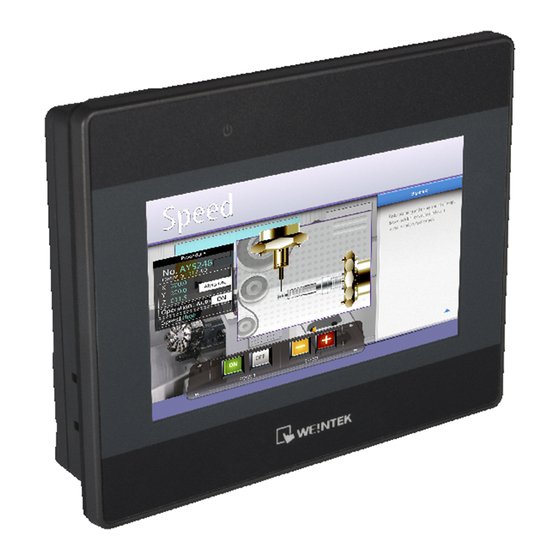

weintek MT6050iP Installation Instruction

MT6050iP MT8050iP

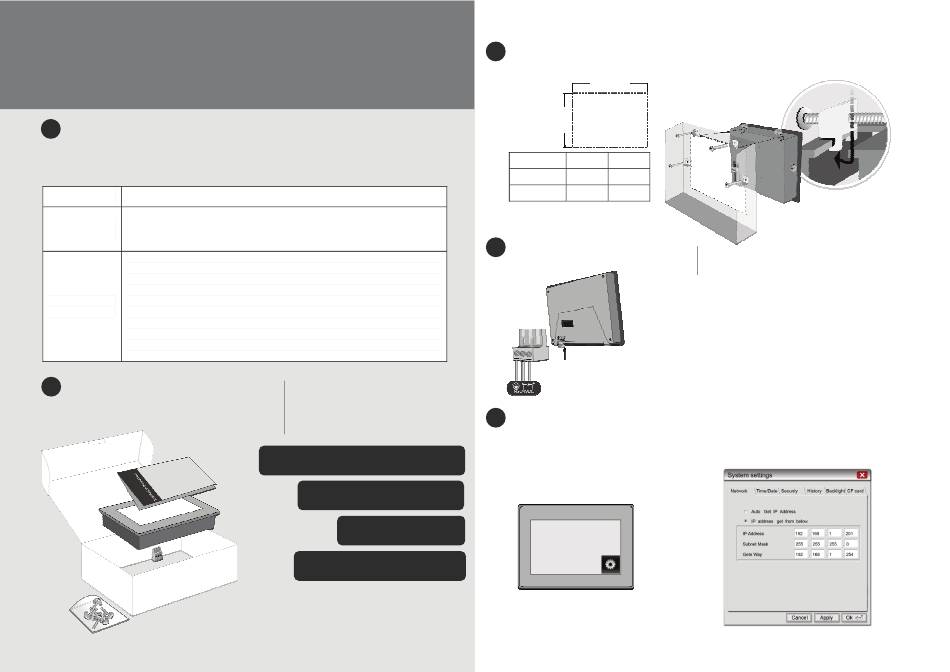

Installation and Startup Guide
1
This document covers the installation of MT6050/8050iP HMI, for the detailed specifications and
operation, please refer to Brochure and EasyBuilder 8000 User Manual.
Install Environment:
NEMA Rating MT6050/8050iP Series HMI is NEMA 4 rated.
MT6050/8050iP Series has been tested to conform to European CE
Electrical requirements. This means that the circuitry is designed to resist the effects of
Environment electrical noise. This does not guarantee noise immunity in severe cases. Proper
wire routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
2 Unpacking the Unit
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(4)
Installation Instruction
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws V3 *1 pack
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
(A)
and screws:
Cutout
(B)
Type A(mm) B(mm)
MT6050iP 119 93
MT8050iP 119 93
4 Power Connections
System Settings
5
When HMI powered up and displays image,
click the system setting button.
(Default System Password: 111111)
It is necessary to connect the HMI to
your network through a RJ-45 cable.
(N/A for MT6050iP)
NOTE:
1. Connect positive DC line to the '+' terminal
and the DC ground to the '-' terminal.
2. Please do not connect HMI with PLC and PC
simultaneously to prevent potential difference
from destroying USB ports of HMI and PC.
To make a connection, strip about 3/8" of
insulation off the end of the wire, turn the
connector screw counterclockwise until the gap
is wide open, insert the wire all the way in, and
turn the screw clockwise until it's tight.
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
