1.0 Installation and Startup Guide
Install Environment
Where
The eMT-3000 Series is designed for industrial. The temperature range of operating is
Used
from 32 to 122 °F (0 to 50 °C) , as majority of industrial environments. It may not be
suitable for using in certain outdoor applications. Please consult the factory for
advised usage in outdoor applications.
NEMA
The eMT-3000 Series front bezel is NEMA 4 rated. When installed properly in a
Rating
NEMA 4 panel, the NEMA 4 rating of the panel will not be compromised. This means
that fluids will not enter the panel during wash downs.
Electrical
The eMT-3000 Series has been tested to conform to European CE requirements. This
Environment
means that the circuitry is designed to resist the effects of electrical noise. This does
not guarantee noise immunity in severe cases. Proper wire routing and grounding will
insure proper operation.
Mechanical
Avoid installing units in environments where severe mechanical vibration or shocks
Environment
are present.
2.0 Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to ensure that AC power wiring, PLC
output modules, contactors, starters and relays, and any other source of electrical interference are located
away from the back of the unit.
Particular note should be taken to the position of variable speed drives and switching power supplies.
Their input and load cables should be screened to a central star earth point.

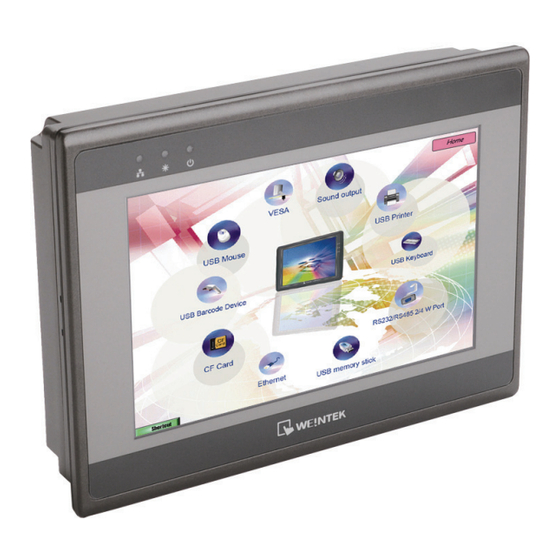

eMT3000 series
eMT-3070A
Installation Instruction
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for weintek eMT3000 Series
Summary of Contents for weintek eMT3000 Series
- Page 1 Installation Instruction 1.0 Installation and Startup Guide Install Environment Where The eMT-3000 Series is designed for industrial. The temperature range of operating is Used from 32 to 122 °F (0 to 50 °C) , as majority of industrial environments. It may not be suitable for using in certain outdoor applications.
- Page 2 2.1.2 Making a NEMA-4 Mounting Panel The unit can be mounted into panels with a depth of 4”(105mm). It is recommended that Details the unit be mounted on the front panel of a steel enclosure, through an appropriate opening*. Allow a clearance of 1”(25mm) around the sides of the unit for mounting hardware.
- Page 3 2.2.1 Power Requirements Power The eMT-3000 can be powered by DC power only. The specified voltage range is 24±20% Volts DC. This insures compatibility with most controller DC systems. The power conditioning circuitry inside the unit is accomplished by a switching power supply.
- Page 4 2.2.4 Safety Guidelines This section presents recommended installation practices, and procedures. Since no two applications are identical, these recommendations should be considered as guidelines. Hardware WARNING! Considerations The system designer should be aware that devices in Controller systems could fail and thereby create an unsafe condition. Furthermore, electrical interference in an operator interface, such as an eMT-3000, can lead to equipment start-up, which could result in property damage and/or physical injury to the equipment operator.
- Page 5 1. Using USB cable mini side plug to HMI and another side plug into PC. The PC will display “Found New Hardware Wizard” dialog. Select “Install from a list or specific location (Advanced)”. 2. Check “Include this location in the search”, and assign the path to install Weintek HMI eMT Series driver from C:\EasyBuilder Pro\usbdriver.
- Page 6 Weintek products include the isolated power supply are covered by a limited liability warranty from defects in material and workmanship. This warranty does not apply : (a) if, in the judgment of Weintek, the product fails due to damage from shipment, handling, storage, accident (natural and man-mad) ;...
- Page 7 2.5 Requirements EU directives that apply to the eMT-3000 Series: EMC Directive (2004/108/EC) electromagnetic emissions and immunity. UL508（ISBN 0-7629-0404-6）machine safety for use in Pollution Degree 2 Environment. eMT-3000 products will be CE-marked to indicate compliance with the EMC Directive. The eMT-3000 Series has been designed to operate satisfactorily in electromagnetic noise (immunity) and without emitting high levels of electrical noise into the environment (emission).
- Page 8 4.0 Dimensions of eMT-3070A Top View 200,35 [7,888] Side View Front View Side View 190,00 192,00 [7,480] [7,559] DIP SW RESE T eMT3070A1： 192mm [7.559"] W x 138mm [5.433"] H 24VDC FG CAN Bus COM3 [RS485] COM1 [RS232] COM1 [RS485 2/4W] COM3 [RS232] Rear View Cutout Dimensions...
