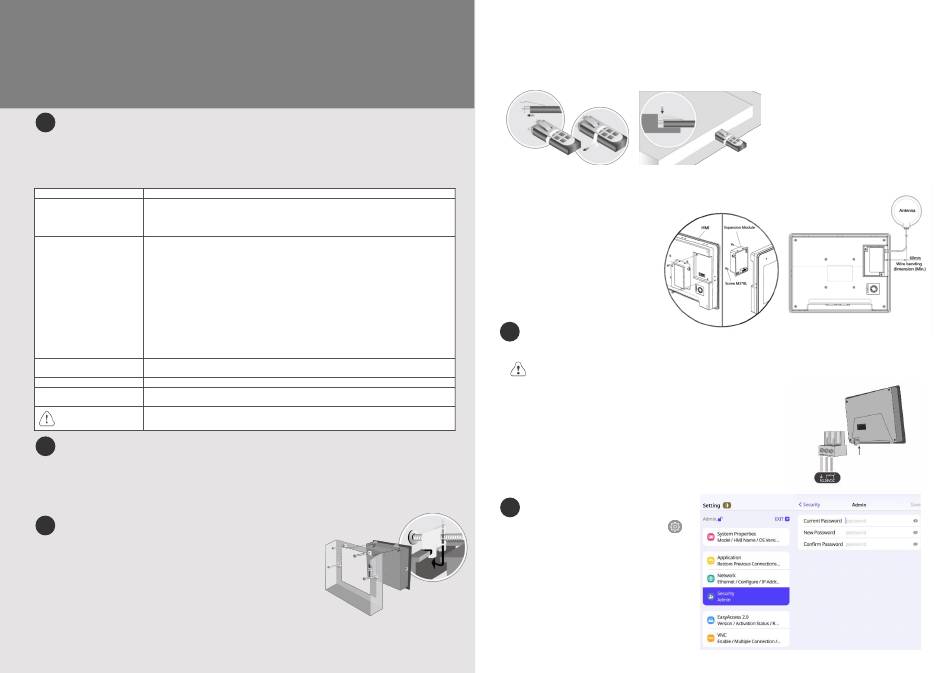

weintek cMT3108XP iV Series Installation Instruction

cMT3108XP (iV) series
1 Installation and Startup Guide
This document covers the installation of cMT3108XP (iV) Series HMI, for the detailed specifications
and operation, please refer to Datasheet, Brochure and User Manual. Please read all warnings,
precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (indoor use only).
The HMI product has been tested to conform to European CE requirements.
This means that the circuitry is designed to resist the effects of electrical
Electrical Environment
noise. This does not guarantee noise immunity in severe cases. Proper wire
routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the
operating limits are followed. Avoid installing units in environments
where severe mechanical vibration or shocks are present.
(2) The HMI product is certified in accordance with ATEX zone 2/22
categories 3 G/D. The unit has to be installed in an additional enclosure
ensuring a minimal protection level for 3G/D equipment. The enclosure
Environmental
equipped with the unit has to be certified and shouldn't be opened when
Considerations
an explosive atmosphere is present.
(3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on
the flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Operating Altitude
Below 3,000 m (9842.52 ft.), atmospheric pressure is 70.1 kPa.
(Atmospheric Pressure)
IP Rating IP 66
Clean the device using dry cloths. Do not use liquid or spray detergents for
Cleaning Considerations
cleaning.
Protection impairment if used in a manner not specified by the manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes: (1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1
(3) Power Connector *1 (4) Brackets & Screws *1 pack (5) USB Stick Clamp & Tying Strap *1
3 Installation Instructions
Use a control box that provides enough stiffness. Cutout Dimension:
255 mm x 185 mm. Secure the operator panel in position, using all
the fastening holes and the provided brackets and screws. Screw
Torque: 2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and
preventing the panel from being deformed.)
Plan for adequate space around the unit and inside the enclosure,
for ventilation and cables. Consider the heat from other devices
inside the enclosure. The ambient temperature around the unit must
be 0 ~ 55°C
Minimum required clearances (along the overlay): Top 15 mm / Bottom 50 mm / Sides 80 mm
Maximum panel thickness: 4 mm
Installation Instruction
USB Stick Clamp Usage
Combining the USB Stick with the clamp and the tying strap can prevent USB stick from
disconnecting with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.
Expansion Module and Magnetic Mount Antenna
1. Connect the expansion module
by inserting it into the given slot in
HMI's rear cover.
2. Tighten the module to HMI's rear
cover using two M3*8L screws.
3. Lock the antenna's SMA
connector to the module's
connector.
Please reserve space for installing
the antenna with minimum bend
radius taken into consideration, in
order to prevent physical damage
to the antenna or impairment of the
antenna's performance.
4 Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
5 System Settings
After powering on the HMI, click the icon
in the upper right corner of the screen to open
the system settings menu.
Password Setting
In the Security tab, modify the Admin
password. The system will prompt for the
Admin password (default is 111111). After
entering the current password, new password,
and confirming the new password, save the
changes.
NOTE: Connect positive DC line to the '+'
terminal and the DC ground to the '-'
terminal.
