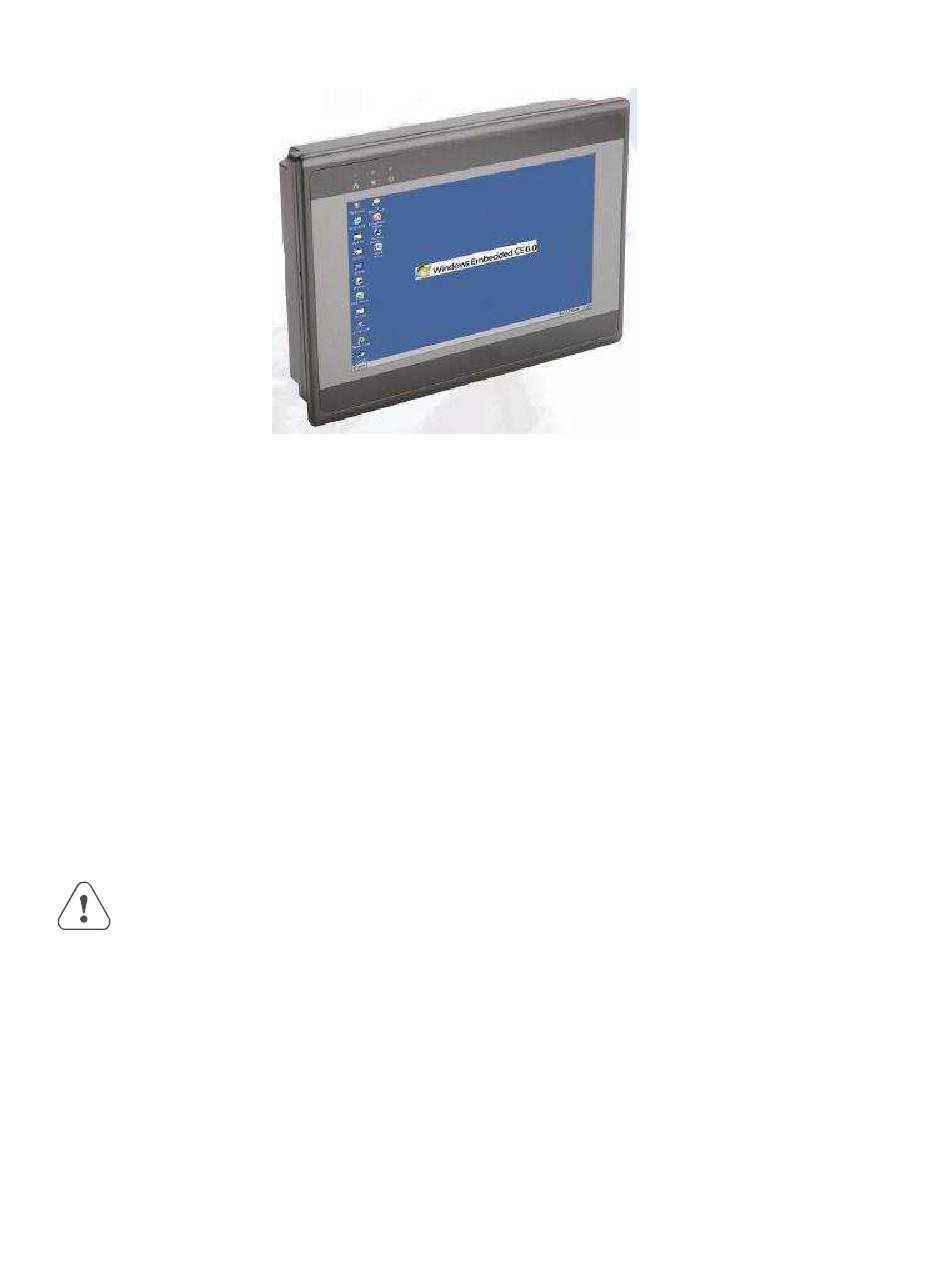

1.0 Installation and Startup Guide
Install Environment
Where
The NP-700p Series is designed for industrial. The temperature range of operating is
Used
from 14 to 113 °F (-10 to 45 °C), as majority of industrial environments. It may not be
suitable for using in certain outdoor applications. Please consult the factory for advised
usage in outdoor applications.
NEMA
The NP-700p Series front bezel is NEMA 4 rated. When installed properly in a NEMA
Rating
4 panel, the NEMA 4 rating of the panel will not be compromised. This means that
fluids will not enter the panel during wash downs.
Electrical
The NP-700p Series has been tested to conform to European CE requirements. This
Environment
means that the circuitry is designed to resist the effects of electrical noise. This does not
guarantee noise immunity in severe cases. Proper wire routing and grounding will
insure proper operation.
Mechanical
Avoid installing units in environments where severe mechanical vibration or shocks are
Environment
present.
2.0 Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to ensure that AC power wiring, PLC
output modules, contactors, starters and relays, and any other source of electrical interference are located
away from the back of the unit.
NP-700p series
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NP-700p Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for weintek NP-700p Series

Summary of Contents for weintek NP-700p Series

  • Page 1 Please consult the factory for advised usage in outdoor applications. NEMA The NP-700p Series front bezel is NEMA 4 rated. When installed properly in a NEMA Rating 4 panel, the NEMA 4 rating of the panel will not be compromised. This means that fluids will not enter the panel during wash downs.

  • Page 2: Power Connections

    Particular note should be taken to the position of variable speed drives and switching power supplies. Their input and load cables should be screened to a central star earth point. 2.1.2 Making a NEMA-4 Mounting Panel The unit can be mounted into panels with a depth of 4”(105mm). It is recommended that Details the unit be mounted on the front panel of a steel enclosure, through an appropriate opening*.
  • Page 3 Caution Do not power the NP-700p and inductive DC loads, or input circuitry to Supply Voltage the controller, with the same power supply. Note: The 24 VDC output from Condition some controllers may not have enough current to power the MT-600/8000. Caution Wire lengths should be minimized (Maximum 1600’...

  • Page 4: Communications Connections

    these precautions conform to the guidelines for installation of Controllers as recommended in the NEMA ICS 3-304 Control Standards. Programming To conform with ICS Safety Recommendations, checks should be placed in Considerations the controller to ensure that all writable registers that control critical parts of plant or machinery have limit checks built into the program, with an out-of-limit safe shut down procedure to ensure safety of personnel.
  • Page 5 OFF OFF OFF OFF Normal Touch Screen Calibrate and Reset Password mode: In this mode when you power on the NP-700p series, the screen will display a “+” sign at the center of the screen. Use a stylus or finger to push the center of the “+” until it...
  • Page 6 NP-700p products will be CE-marked to indicate compliance with the EMC Directive. The NP-700p Series has been designed to operate satisfactorily in electromagnetic noise (immunity) and without emitting high levels of electrical noise into the environment (emission). The units are designed to meet European Community standards when installed per the wiring instructions in this manual.

  • Page 7: Specifications

    3.0 Specifications Hardware Specification 7" TFT LCD Display 450 cd/m2 Brightness 65,536 colors Color Contrast Ratio 500:1 800 x 480 Resolution (WxH dots) Back light Backlight life time (avg.) 30,000 hr. min. 4 wires resistive type Touch panel COM1 (RS-232/RS-485 2W/4W), COM2(RS232), COM3(RS-232/RS-485 2W) I/O port 1 Ethernet port (10/100 Base-T) Ethernet port...
  • Page 8 Weintek products include the isolated power supply are covered by a limited liability warranty from defects in material and workmanship. This warranty does not apply: (a) if, in the judgment of Weintek, the product fails due to damage from shipment, handling, storage, accident (natural and man-mad) ;...
  • Page 9 4.0 Dimensions of NP-700p Cutout dimensions: 192mm[7.559”]W x 138mm[5.433”]H...
