weintek cMT-iV5 series Installation Instruction

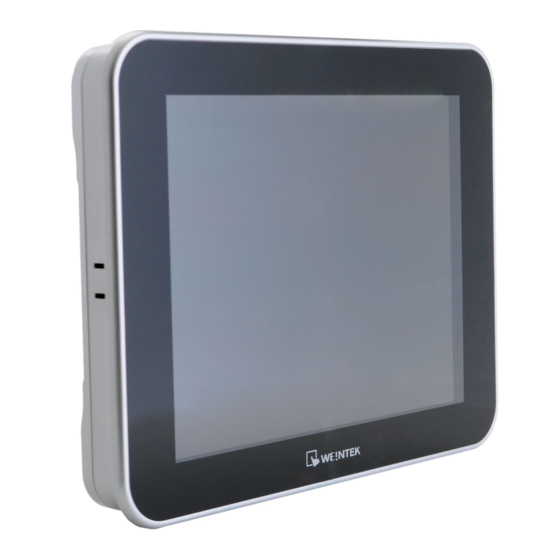

cMT-iV5 series
1 Installation and Startup Guide
This document covers the installation of cMT-iV5, for the detailed specifications and operation, please refer
to Brochure and EasyBuilder Pro User Manual.
Install Environment:
The cMT-iV5 Series has been tested to conform to European CE requirements.
Electrical This means that the circuitry is designed to resist the effects of electrical noise.
Environment This does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the units are installed correctly and that the operating limits
are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.

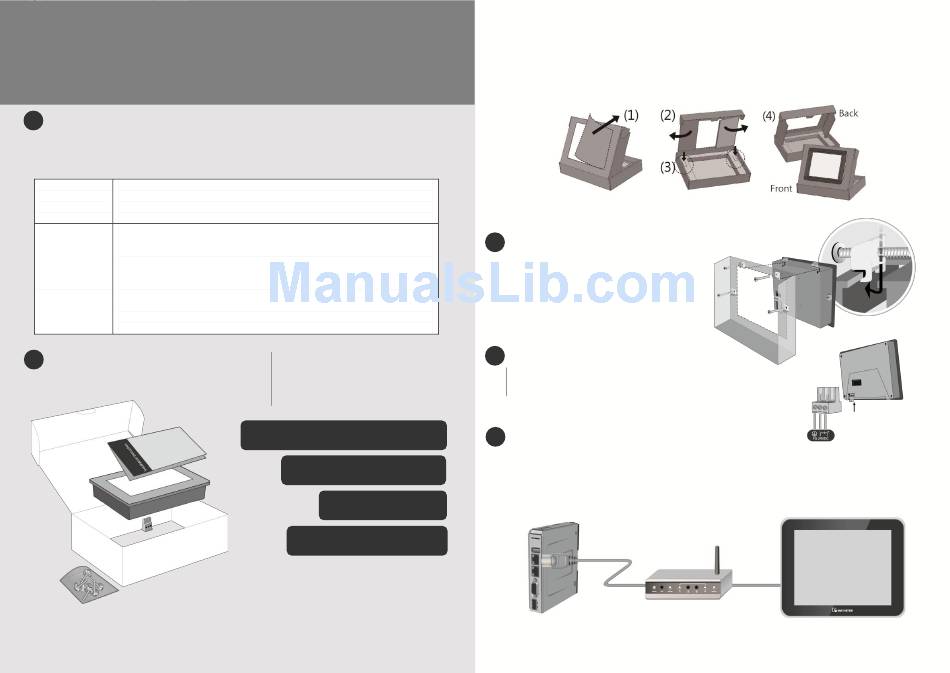

2 Unpacking the Unit
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(4)
Installation Instruction
NOTE:
Place the unit on a stable surface during
installation. Dropping it or letting it fall may
cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
The packing box can be transformed into an HMI stand. Please follow the steps to make the stand.
1. Remove the center of the box cover along the perforated line.
2. Pull the two inner flaps.
3. Press down along the perforated line inside the box.
4. Complete the stand as shown.
3 Installation Instructions
Secure the operator panel in position, using all the
fastening holes and the provided brackets
and screws. Panel Cutout: 248.5mm x 191 mm
4 Power Connections
NOTE:
Connect positive DC line to the „+‟ terminal and the DC ground
to the „-‟ terminal.
System Settings
5
Connect cMT-SVR, router, and cMT-iV5 via RJ-45 Ethernet cable. Launch cMT Viewer on cMT-iV5, find the
cMT-SVR and use the default password "111111" to log in and configure.
cMT-SVR Ethernet Ports:
Ethernet 1: DHCP
Ethernet 2: 192.168.100.1
