Grizzly T32250 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32250 24" Bed Extension increases
the bed length of the Model G0844 benchtop
lathe to accommodate longer workpieces.
Inventory
(Figure 1)
A. Bed Extension ............................................ 1
B. Hex Wrench 3mm ....................................... 1
C. Hex Wrench 6mm ....................................... 1
D. Cap Screws M8-1.25 x 25 .......................... 2
E. Set Screws M6-1 x 16 ................................ 2
Rubber Feet ............................................... 2
F.
A
B
E
D

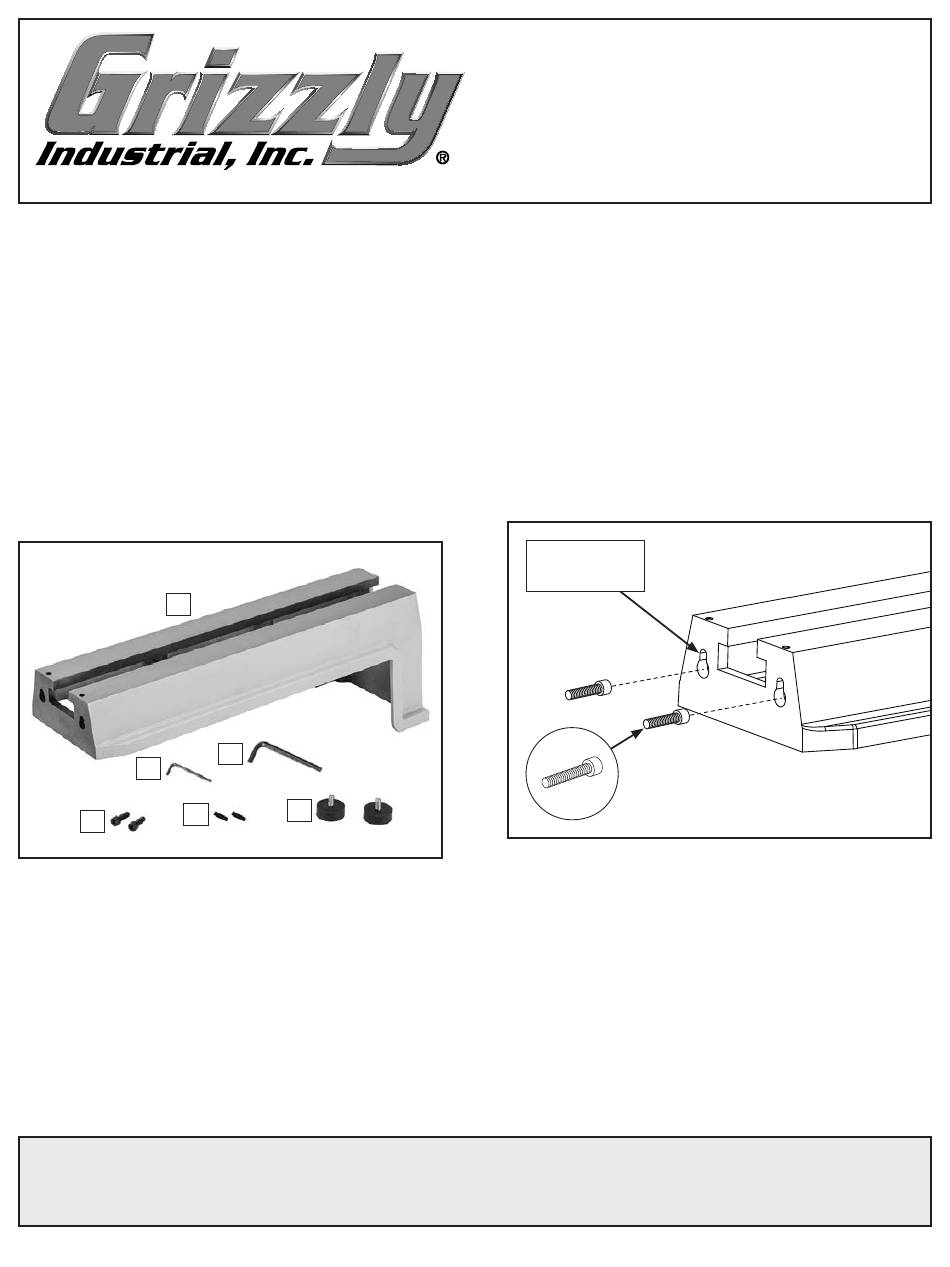

Figure 1. Model T32250 inventory.
Installation
Items Needed
48" Straightedge ................................................ 1
Masking Tape .................................... As Needed
COPYRIGHT © APRIL, 2021 BY GRIZZLY INDUSTRIAL, INC., REVISED MARCH, 2024 (JA)
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
C
F
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 01/24) #AI21699 PRINTED IN CHINA
***Keep for Future Reference***
MODEL T32250
24" BED EXTENSION
Thread rubber feet into bottom of bed extension.
1.
Remove (2) button head cap screws and (2)
2.
flat washers securing tool holder to tailstock
end of lathe bed.
Thread (2) M8-1.25 x 25 cap screws approxi-
3.
mately halfway into tailstock end of lathe bed
Align cap screws with bottom of keyhole slots
4.
(see Figure 2), then slide bed extension onto
cap screws.
Keyhole Slot
(1 of 2)
x 2
Figure 2. Attaching bed extension.
Gently push bed extension down so cap
5.
screws slide into upper portion of keyhole
slots.
Qty
FOR G0844
INSTRUCTIONS
V2.03.24
