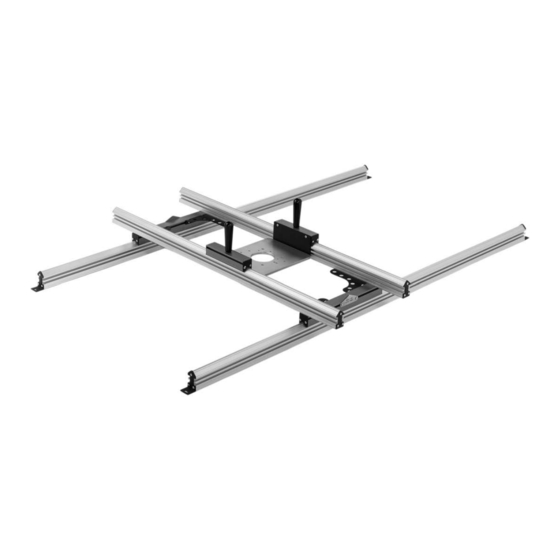

38" x 56" slab flattening mill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL T32537
38" X 56" SLAB FLATTENING MILL
OWNER'S MANUAL
(For models manufactured since 01/21)
COPYRIGHT © MARCH, 2021 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#MN21677 PRINTED IN TAIWAN
V1.03.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T32537 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly T32537

Summary of Contents for Grizzly T32537

  • Page 1 (For models manufactured since 01/21) COPYRIGHT © MARCH, 2021 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #MN21677 PRINTED IN TAIWAN V1.03.21...
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Contact Info ..........................2 Specifications ..........................2 Manual Accuracy ........................2 SECTION 1: SAFETY ........................3 Safety Instructions for Machinery ....................3 Additional Safety for Slab Flattening Mills.................. 5 SECTION 2: SETUP ......................... 6 Unpacking ..........................

  • Page 4: Introduction

    Mounting Plate Opening Size ....3-1/2 in. Max Slab Length (w/Included Rails) ..56-1/2 in. Manufacture Date Max Slab Width ........38-3/4 in. Max Slab Thickness (w/o Shimming) ..3-7/16 in. Min Slab Thickness ........1/4 in. Serial Number Model T32537 (Mfd. Since 01/21)

  • Page 5: Section 1: Safety

    Never operate under the influence of drugs or injury or blindness from flying particles. Everyday alcohol, when tired, or when distracted. eyeglasses are NOT approved safety glasses. Model T32537 (Mfd. Since 01/21)
  • Page 6 EXPERIENCING DIFFICULTIES. If at any time debris. Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model T32537 (Mfd. Since 01/21)

  • Page 7: Additional Safety For Slab Flattening Mills

    APPROPRIATE SLABS. Danger of kickback and nect it and safely store it out of the way. injury is increased when slab has knots, holes, or foreign objects in it. Model T32537 (Mfd. Since 01/21)

  • Page 8: Section 2: Setup

    IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack- aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

  • Page 9: Site Considerations

    If you cannot find an item on this list, care- fully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpack- ing or they are pre-installed at the factory. Model T32537 (Mfd. Since 01/21)

  • Page 10: Hardware Recognition Chart

    Hardware Recognition Chart USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS. Flat Head Screw Model T32537 (Mfd. Since 01/21)

  • Page 11: Assembly

    Apply (8) strips of 13 x 51mm UHMW tape at each corner of short guide block (see Figure 4). UHMW Tape Long Guide Block Figure 6. Left and right gussets installed on long guide block. Figure 4. UHMW tape applied to guide blocks. Model T32537 (Mfd. Since 01/21)
  • Page 12 Figure 8), then fully tighten all fasteners. Cross V-Rail Square Long Mounting Guide Block End Cap Assembly Figure 10. Mounting end cap installed on 72" main V-rail. Figure 8. Corners are square and fasteners are tightened. -10- Model T32537 (Mfd. Since 01/21)
  • Page 13 Slide lock nuts into track on face of short guide blocks and tighten screws. Handle Handle Assembly Short Guide Block Router Plate Hanger Figure 12. Handle installed on short guide block. Figure 13. Handle assembly attached to router plate hanger. -11- Model T32537 (Mfd. Since 01/21)
  • Page 14 V-rails (see Figure 15), and adjust router plate so it is centered between and parallel with router plate hangers. Router Base Assembly Cross V-Rails Figure 15. Router base assembly seated on cross V-rails. -12- Model T32537 (Mfd. Since 01/21)

  • Page 15: Installing Router

    Installing Router If router unexpectedly moves or router bit contacts router plate or V-rails dur- The router plate on the Model T32537 features ing operation, serious personal injury a series of pre-drilled holes that are designed to could result from the router bit or flying match the hole patterns found on a wide variety debris.

  • Page 16: Section 3: Operations

    Read books/magazines or get formal training before beginning any proj- ects. Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable for accidents caused by lack of training. -14- Model T32537 (Mfd. Since 01/21)

  • Page 17: Using Slab Flattening Mill

    Flattening Mill Tip: We recommend using a spoilerboard- style router bit (see Page 16). Follow router bit manufacturer's recommendations for rout- The Model T32537 is designed to accommodate er speed and depth of cut. slabs up to 56 ⁄ "L x 38 ⁄...

  • Page 18: Section 4: Accessories

    Figure 21. Model T30940 Carbide-Tipped ioned earmuffs. Especially important if you or Spoilboard Cutter. employees operate for hours at a time. T32538—4' Extension Rails for Model T32537 H4978 Slab Flattening Mill. Includes two 4' V-rails and eight rail connectors with set screws.

  • Page 19: Section 5: Maintenance

    To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments, Cleaning the Model T32537 is relatively easy. maintenance, or service. Vacuum excess sawdust and wipe off the remain- ing dust with a dry cloth. If any resin has built up, Schedule use a resin dissolving cleaner to remove it.

  • Page 20: Section 6: Parts

    SECTION 6: PARTS Main BUY PARTS ONLINE AT GRIZZLY.COM! -18- Model T32537 (Mfd. Since 01/21) Scan QR code to visit our Parts Store.
  • Page 21 GRIZZLY.COM LABEL We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. BUY PARTS ONLINE AT GRIZZLY.COM! -19- Model T32537 (Mfd.

  • Page 23: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
