Introduction

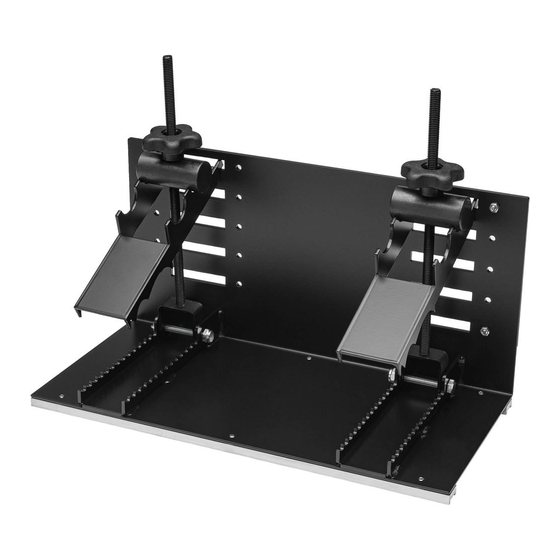

The Model T32841 Sliding Log Milling Sled rip
cuts logs at least 17
in diameter on vertical wood-cutting bandsaws
when used with the T32838 Bandsaw Sled.
Inventory
Description
A. Milling Sled ................................................. 1
B. Hold-Down Weights .................................... 2
C. Knobs ⁄ "-16 ............................................... 2
3
8
D. Hinge Rods................................................. 2
E. Open-End Wrenches 13mm ....................... 2
F.
Hex Bolts M8-1.25 x 55 .............................. 2
G. Lock Nuts M8-1.25 ..................................... 2
H. Claw Hold-Downs ....................................... 2
A
G
F
Figure 1. T32841 inventory.
NOTICE
If you cannot find item on list, check around/
inside packaging materials. Often, items
get lost in packaging while unpacking or
they are pre-installed at factory.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ " long and up to 11
3
4
B
D
C
E
H
COPYRIGHT © NOVEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 11/21) #CS22154 PRINTED IN TAIWAN
MODEL T32841
SLIDING LOG MILLING
Assembly
The Model T32841 must be assembled before it
⁄ " can be mounted on the bandsaw sled.
3
4
Qty
To assemble milling sled:
1.
Attach (2) hinge rods to milling sled with (2)
M8-1.25 x 55 hex bolts and M8-1.25 lock
nuts, as shown in Figure 2.
x 2
Milling
Sled
Figure 2. Attaching hinge rods to milling sled.
SLED
INSTRUCTIONS
Wear safety glasses during
the entire setup process!
Hinge
Rods
V1.11.21
