For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
This Mobile Base Extension Kit installs on the
Model T33447 Mobile Base to provide a stable
support platform for a machine with an extension
table, such as a table saw.
T33447

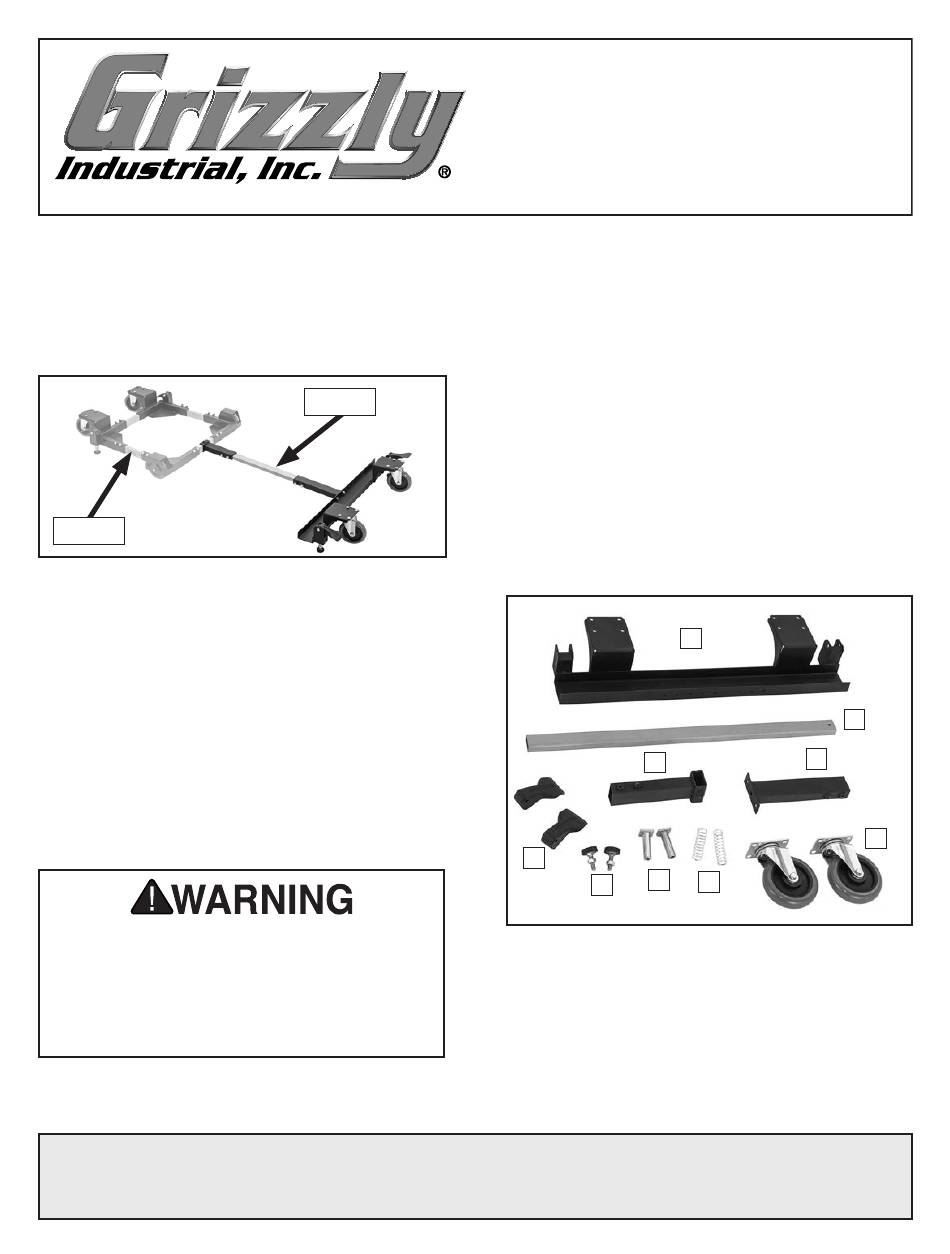

Figure 1. Assembled T32749 Extension Kit
attached to T33447 Mobile Base.
Specifications
•
Minimum Extension Length . .................... 18"
•
Maximum Extension Length . ................... 44"
•
Maximum Weight Capacity ............. 400 lbs.
Tools Needed for Assembly
•
Open-End Wrench or Socket 13mm .......... 1
•
Open-End Wrench or Socket 17mm........... 1
•
Hacksaw or Metal-Cutting Bandsaw .......... 1
Operating machinery on an unsecured
mobile base may allow machine to shift
unexpectedly, which could result in kickback
or accidental contact with blade, cutter, or
other moving parts. Always secure all parts
of mobile base before operating machine.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
T32749
COPYRIGHT © JANUARY, 2023 BY GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 02/23) #JM22440 PRINTED IN COUNTRY
***Keep for Future Reference***
MODEL T32749
ROUGH SURFACE
EXTENSION KIT
INSTRUCTIONS
Inventory
Description
A. Leg Support Bracket .................................. 1
B. Extension Bar ............................................. 1
C. Extension Bar Bracket . ............................... 1
D. Swivel Casters 5" ....................................... 2
E. Foot Pedal Springs . .................................... 2
F. Foot Pedal Plungers . .................................. 2
G. Rubber Feet w/Hex Nuts M10-1.5 .............. 2
H. Foot Pedals ................................................ 2
I.
Adapter Bracket . ......................................... 1
J. Hardware (Not Shown)
—Hex Bolts M8-1.25 x 16 ....................... 15
—Lock Nuts M8-1.25 . ............................... 12
—Shoulder Bolts M8-1.25 x 8, 8 x 50 ........ 2
A
I
H
F
G
Figure 2. Inventory.
Qty
B
C
D
E
V1.01.23
