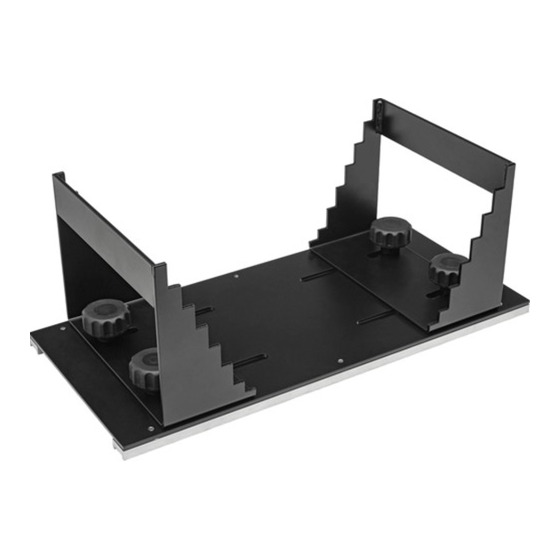

Sliding log crosscut jig

Advertisement

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Using Jig

Mount the Model T32839 on the tracks of the
T32838 Bandsaw Sled to smoothly feed logs
up to 11
" wide across the table of your vertical
3
4
wood-cutting bandsaw.
IMPORTANT: Refer to the bandsaw manual for
information on safely operating your bandsaw.
To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating bandsaw.

Items Needed

Vertical Bandsaw ............................................... 1
T32838 Bandsaw Sled ...................................... 1

To use jig:

1.
Refer to Model T32838 Instructions to
install bandsaw sled on bandsaw.
2.
DISCONNECT BANDSAW FROM POWER!
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © NOVEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 11/21) #CS22152 PRINTED IN TAIWAN
MODEL T32839
CROSSCUT JIG
3.
Align tracks of crosscut jig with tracks of
bandsaw sled, then slide jig onto sled (see
Figure 1).
Sled

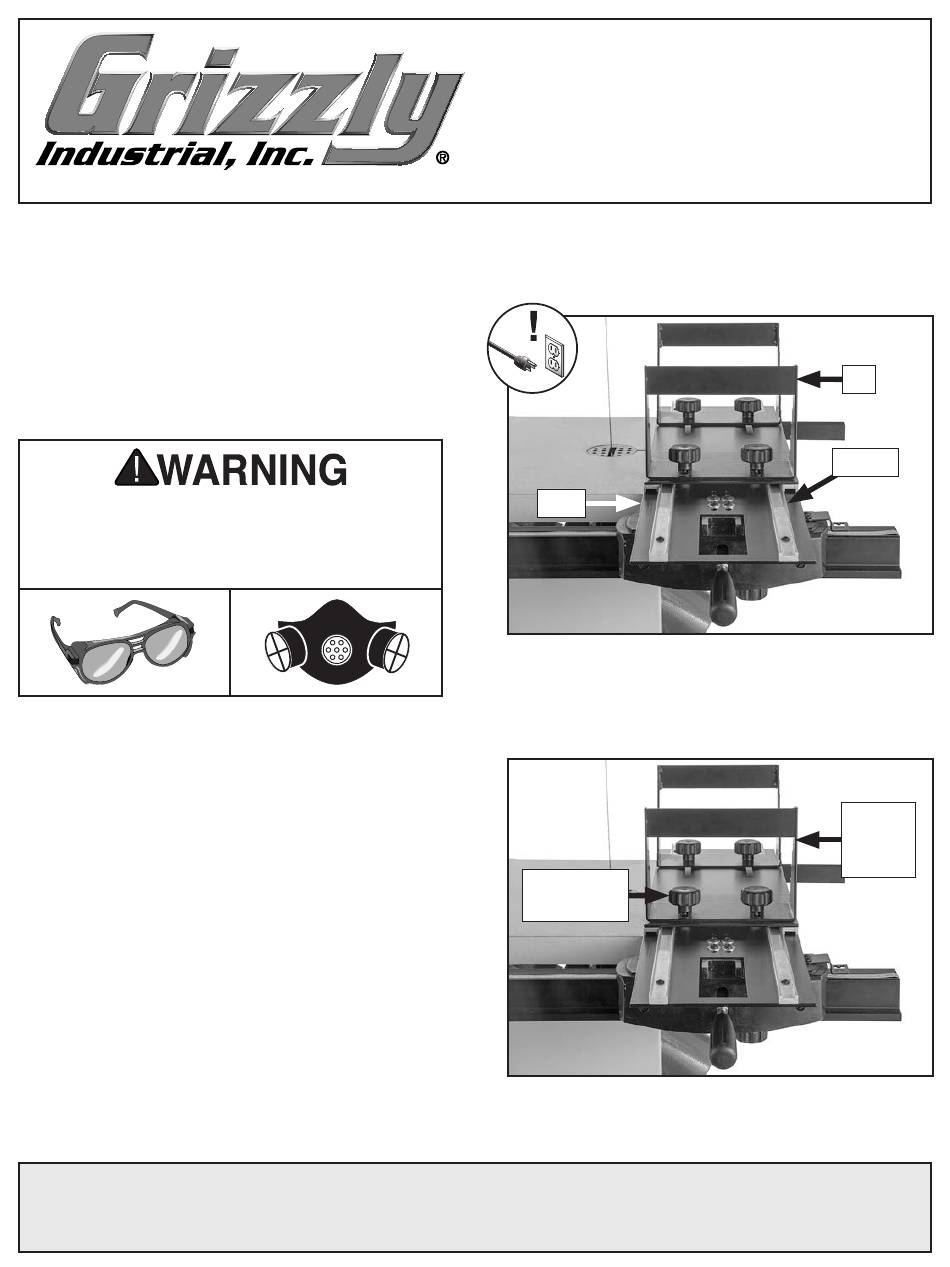

Figure 1. Crosscut jig slid onto bandsaw sled.
4.
Loosen lock knobs shown in Figure 2 and
and adjust log holders fully open.
Qty
Lock Knob
(1 of 4)
Figure 2. Location of lock knobs and log holders.
SLIDING LOG
INSTRUCTIONS
Jig
Tracks
Log
Holder
(1 of 2)
V1.11.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T32839 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grizzly T32839

  • Page 1 MODEL T32839 SLIDING LOG CROSSCUT JIG INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Using Jig Align tracks of crosscut jig with tracks of bandsaw sled, then slide jig onto sled (see Mount the Model T32839 on the tracks of the Figure 1).
  • Page 2 Rest workpiece between log holders and align bandsaw blade with intended line of cut Center of Gravity (see Figure 3). Adjust log holders until workpiece is secure, then tighten lock knobs (see Figure 3). Bandsaw Blade Figure 4. Example of center of gravity. Lock Knob Connect bandsaw to power, turn bandsaw (1 of 4)
  • Page 3 Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
