Grizzly T32716 Instructions Manual

8" benchtop metal shear/brake
Hide thumbs

Advertisement

Quick Links

Download this manual
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32716 8" Benchtop Metal Shear/
Brake is designed to both bend and shear sheet
metal with one compact tool.
To reduce your risk of
serious injury, read this
entire

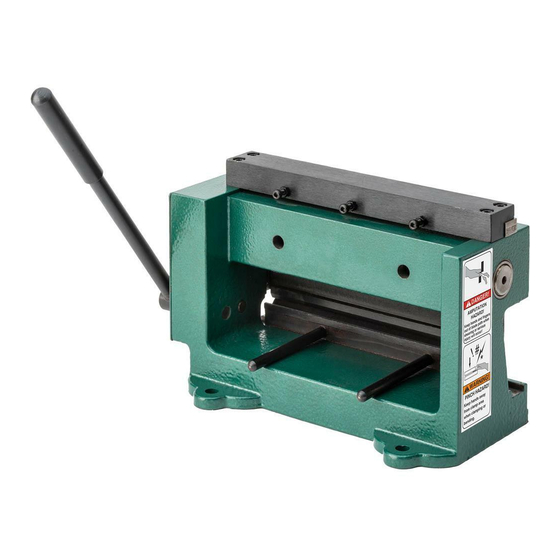

Figure 1. Model T32716 8" Benchtop Metal
Shear/Brake.
Needed for Setup
•
Safety Glasses ....................................1 Pair
•
Cleaner/Degreaser ..................... As Needed
•
Disposable Shop Rags ............... As Needed
•
Disposable Gloves ..................... As Needed
•
Open-End Wrench 17mm ........................... 1
•
Wrench or Socket 17mm ............................ 1
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
manual
BEFORE
COPYRIGHT © MAY, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 05/21) #CS21863 PRINTED IN CHINA
MODEL T32716
8" BENCHTOP
METAL SHEAR/BRAKE
INSTRUCTIONS
Inventory
Description
A. Benchtop Shear/Brake (Not Shown) .......... 1
B. Handle ........................................................ 1
C. Hex Bolts M10-2 x 70 ................................. 4
D. Flat Washers 10mm ................................... 4
E. Hex Nuts M10-2 .......................................... 4
Hex Wrenches 3, 4mm .........................1 Ea.
⁄
",
⁄
",
3
9
8
16
H. Seating Tool................................................ 1
C
B
D
E
G

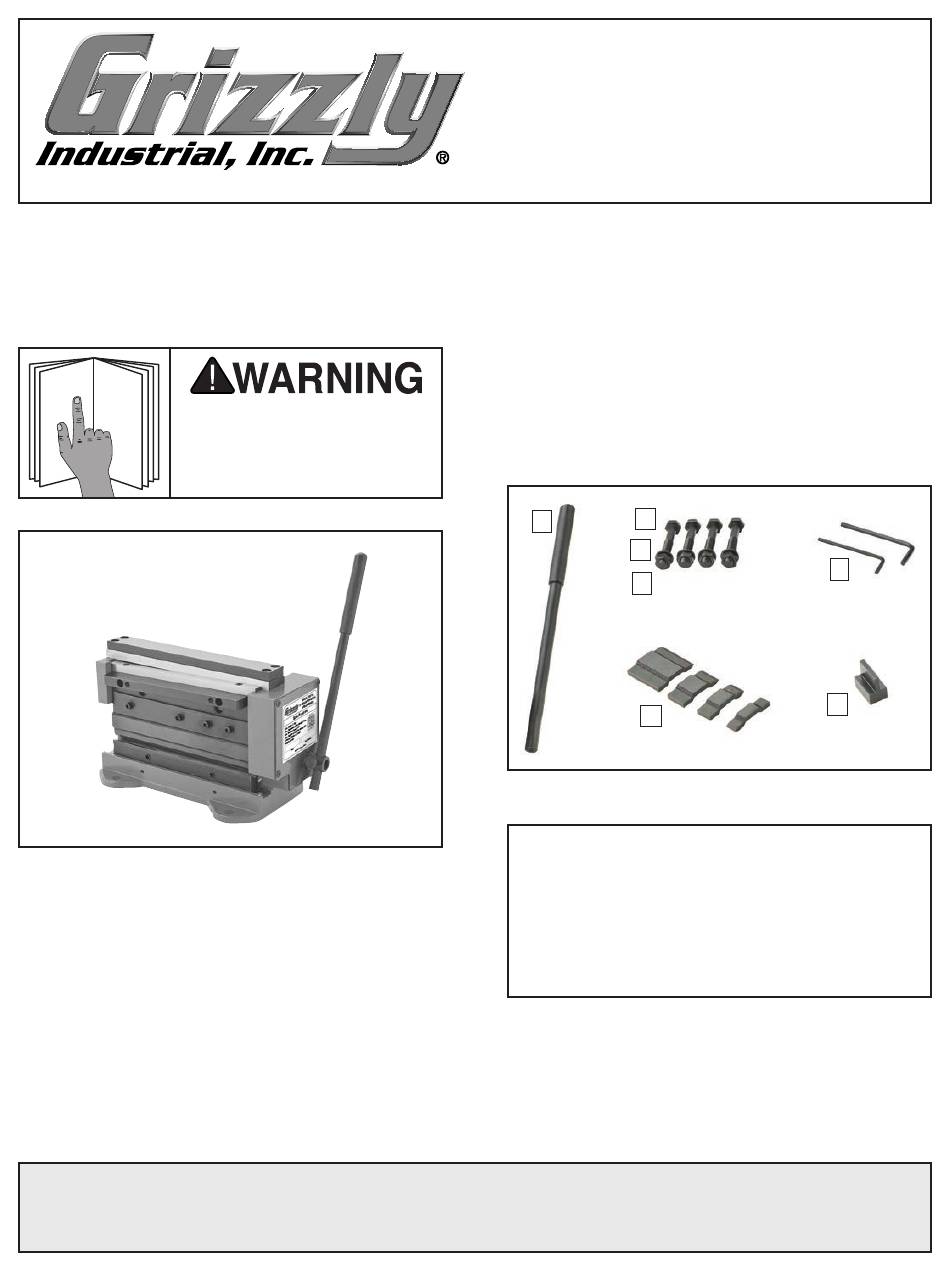

Figure 2. Inventory.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
⁄
", 1
⁄
" ..................1 Ea.
13
9
16
16
F
H
V1.05.21
Qty

Advertisement

loading
Need help?

Need help?

Do you have a question about the T32716 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly T32716

Summary of Contents for Grizzly T32716

  • Page 1: Table Of Contents

    MODEL T32716 8" BENCHTOP METAL SHEAR/BRAKE INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction Inventory Description The Model T32716 8" Benchtop Metal Shear/ A. Benchtop Shear/Brake (Not Shown) ..1 Brake is designed to both bend and shear sheet B.
  • Page 2 MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL T32716 8" BENCHTOP METAL SHEAR/BRAKE Product Dimensions: Weight................................26 lbs. Width (side-to-side) x Depth (front-to-back) x Height................11 x 16 x 12 in.

  • Page 3: Safety Glasses

    The unpainted surfaces of your machine are Mounting hardware has been included with the coated with a heavy-duty rust preventative that Model T32716. However, you can use different prevents corrosion during shipment and storage. hardware with a 10mm diameter if your workbench This rust preventative works extremely well, but it or surface requires a different size or type.

  • Page 4: Using Machine

    Thumb Knob bending operation (see Figure 7). Figure 5. Installing handle. Crushing hazard! Always Changing Fingers keep hands clear when The Model T32716 comes with five fingers of using this machine. various lengths: ⁄ ", ⁄ ", ⁄...
  • Page 5 (see Changing Fingers on seat. Page 4 and Flipping Bending Prism). Install brake stop removed in Step 1 for Use handle to raise fingers. performing repeated bends (see Typical Bending Operation for more information). T32716 (Mfd. Since 05/21)
  • Page 6 (see Figure 12). Thumb Screw (1 of 2) Figure 14. Example of reverse bend. Brake Stop Figure 12. Location of brake stop and thumb screws. T32716 (Mfd. Since 05/21)

  • Page 7: Fingers

    Figure 17. Tape and mark workpiece with location of third bend. Smaller Fingers Install fingers for third bend (see Changing Fingers on Page 4). Bending Prism Figure 17. Sufficient clearance for first bends. T32716 (Mfd. Since 05/21)
  • Page 8 Use handle to lower shearing blade (see Figure 20). Figure 19. A typical cylinder and cone. Use this information as well as the steps listed in Typical Bending Operation beginning on Page 5 to radius bend. T32716 (Mfd. Since 05/21)
  • Page 9 Cleaning Cleaning the Model T32716 is relatively easy. Periodically wipe down the machine to remove Make sure no body part is near knives when shearing dust and oil. occurs. Failure to follow this warning may result in Protect the unpainted cast iron surfaces of your machine by applying regular applications of a cut or pinch injuries.
  • Page 10 Brush heavy coat of NLGI#2 grease on gears End Shaft with clean wire brush. Install gear cover and secure with screws from Step 5. Install handle and pump to disperse grease. Figure 25. End shaft location. -10- T32716 (Mfd. Since 05/21)
  • Page 11 (see Figure 28). Fixed Knife Shearing Knife Figure 30. Location of knives and direction of fixed knife travel. Figure 28. Example of using paper to test shearing results. -11- T32716 (Mfd. Since 05/21)
  • Page 12 Tighten screws from Step 3. 10. Repeat test from Step 2 to check adjustment. Rotating/Replacing Knives Both of the knives on the Model T32716 can be removed and rotated to reveal one of the addition- Shearing Knife al cutting edges. Both knives have four available Fixed Knife cutting edges.
  • Page 13 Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
  • Page 14 Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -14-...
  • Page 15 WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
